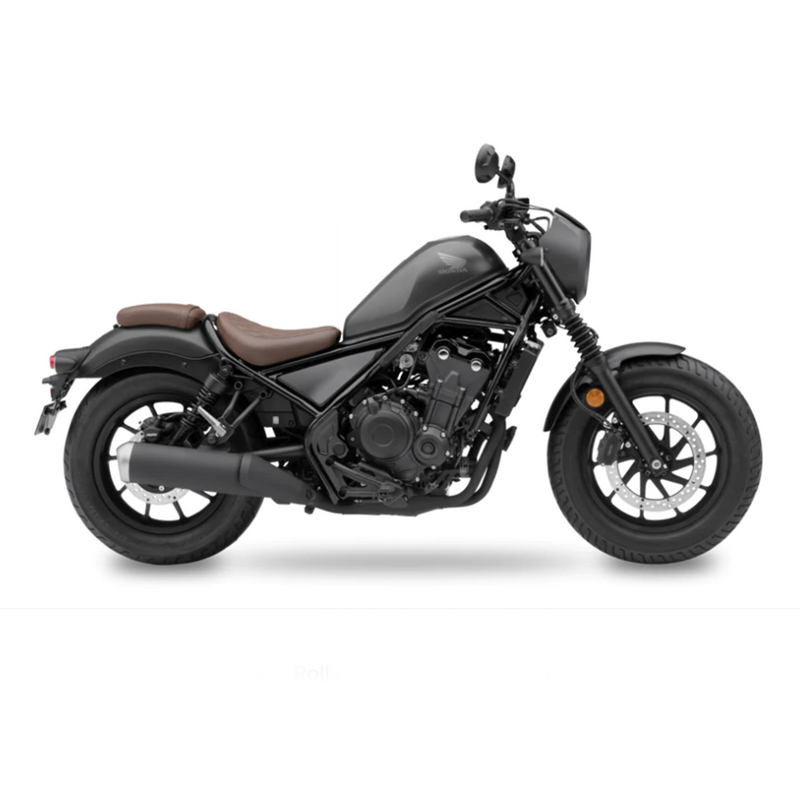

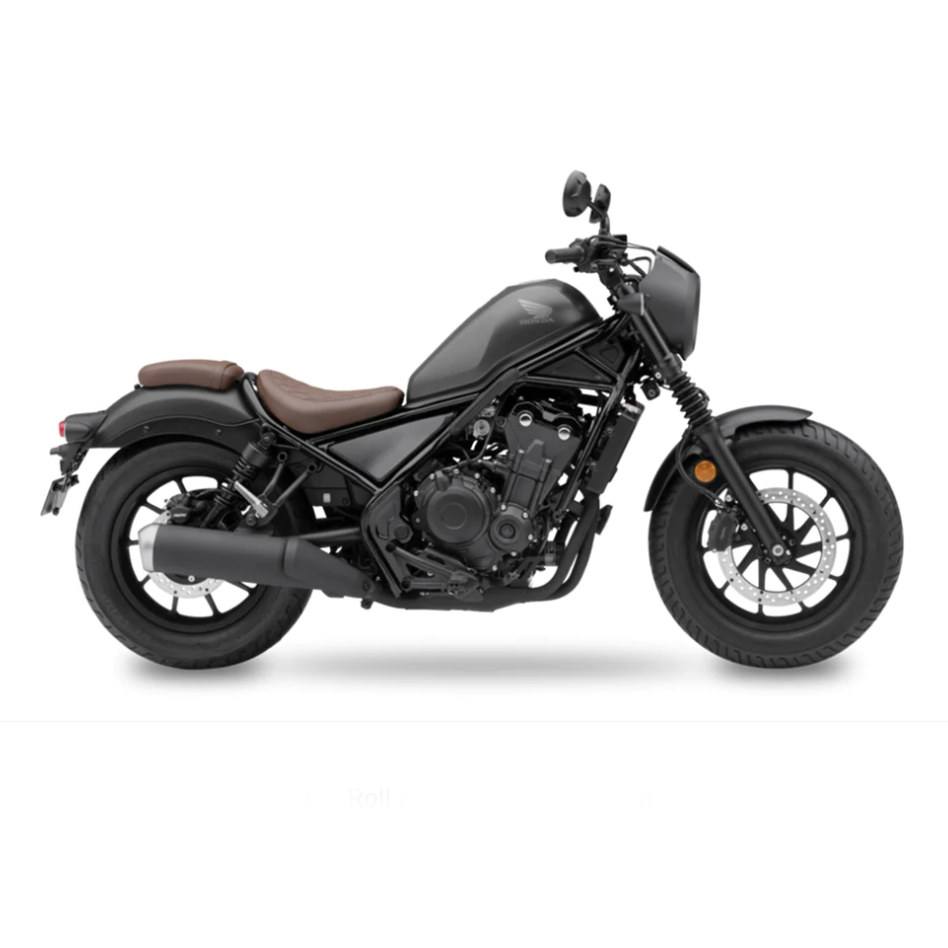

Description
Raw, aggressive styling and a narrow, sexy frame. Everything you need and nothing you don’t, the Rebel comes loaded with attitude from fender to fender. Blacked-out and stripped down quality components around a rising fuel tank deliver its signature aggressive stance and a fat tyre provides a powerful presence.
ENGINE
| Engine Type | Liquid-cooled DOHC parallel-twin 4-stroke |
| CC Rating | 475cc |
| Bore and Stroke | 67.0mm X 66.80 |
| Ignition | Computer-controlled digital transistorized w/ electronic advance |
| Compression Ratio | 10.7:1 |
TRANSMISSION
| Starter | Electric |
| Gearbox | 6 Speed |
WHEELS, SUSPENSION & BRAKES
| Suspension Front | 41mm Telescopic |
| Suspension Rear | Showa with Pro-Link system |
| Brakes Front | 296mm Hydraulic disc |
| Brakes Rear | Single piston Rear |
| Tyres Front | 130/90-16MC |
| Tyres Rear | 150/80- 16MC |
| Rake Caster Angle | 28 ° |
DIMENSIONS & WEIGHT
| Wheelbase | 1,488 mm |
| Seat Height | 690mm |
| GroundClearance | 136mm |
| Trail | 110 mm |
| Kerb Weight | 190kg |
| Fuel Capacity | 11.2 litres |
| Dimensions | 2,188 X 820 X 1,094 mm |
