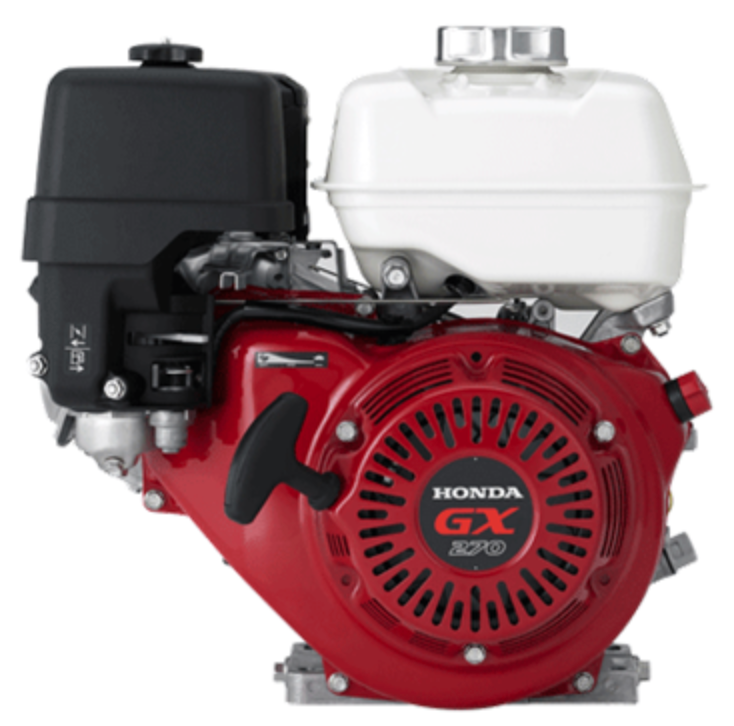

Honda GX270 Horizontal Engines


Models: GX270UT2HX8 (1", Recoil, 6:1 Reduction)
Price:
Sale price$2,183.00

Prices Include GST

This product only available in-store and cannot be purchased online, please contact your local branch. Free freight and Afterpay are not available on this product.

Description

COMMON APPLICATIONS

With the GX270, you’re looking at one of the best engines in the business. More power. Quieter performance. Lower fuel consumption. Lower emissions. Better features. Exceptional performance. Honda’s GX series lives up to it reputation.

The GX270 is used in all sorts of applications. From pressure washers and construction/industrial equipment to generators and commercial lawncare equipment.

FUEL EFFICIENCY WITH HIGH OUTPUT OPERATION

A digital CDI ignition system with variable timing and an increased compression ratio combines with the GX270's Precision Camshaft design to offer precise valve timing and optimal valve overlap for better fuel efficiency.

It draws on decades of Honda engineering with its OHV design, delivering increased efficiency and optimal power transfer for where you need it.

And the use of lightweight, noise-reducing materials and a forged steel crankshaft & rigid crankcase results in an exceptionally quiet engine – an improved piston design reduces mechanical noise, with an overall reduction of engine noise by up to 5dB.

THE WHOLE PACKAGE

The GX270's ball bearing-supported crankshaft, cast iron cylinder sleeve, helical cut gears and precision engineered components result in greater stability and lower vibration for you, no matter what the application.

With a simple throttle control, large fuel tank and automotive type fuel cap, dual oil drains and fills, an easily accessible spark plug and heavy duty recoil starter, the GX270 has it all.



MODEL

GX270

TYPE

4-stroke, overhead valve, single-cylinder, horizontal shaft

BORE & STROKE

77 x 58mm

DISPLACEMENT

270cm3

COMPRESSION RATIO

8.2:1

NET POWER

6.0kW (8.0HP) at 3,600rpm

CONTINUOUS RATED POWER

5.1kW (6.8HP) at 3,600rpm

MAXIMUM NET TORQUE

17.7Nm at 2,500rpm

IGNITION SYSTEM

Transistorised magneto ignition

STARTING SYSTEM

Recoil (Electric Starter Optional)

COOLING SYSTEM

Forced-Air

PTO SHAFT ROTATION

Counter-clockwise (from P.T.O. side)

FUEL CONSUMPTION AT RATED POWER

2.5 L/h at 3,600rpm

RECOMMENDED FUEL

Unleaded

LUBRICATION SYSTEM

Splash

RECOMMENDED OIL

10W/30 API SG

OIL CAPACITY

1.1L

FUEL TANK CAPACITY

5.3L

DIMENSIONS

380 x 430 x 410mm

DRY WEIGHT

25kg
