Description

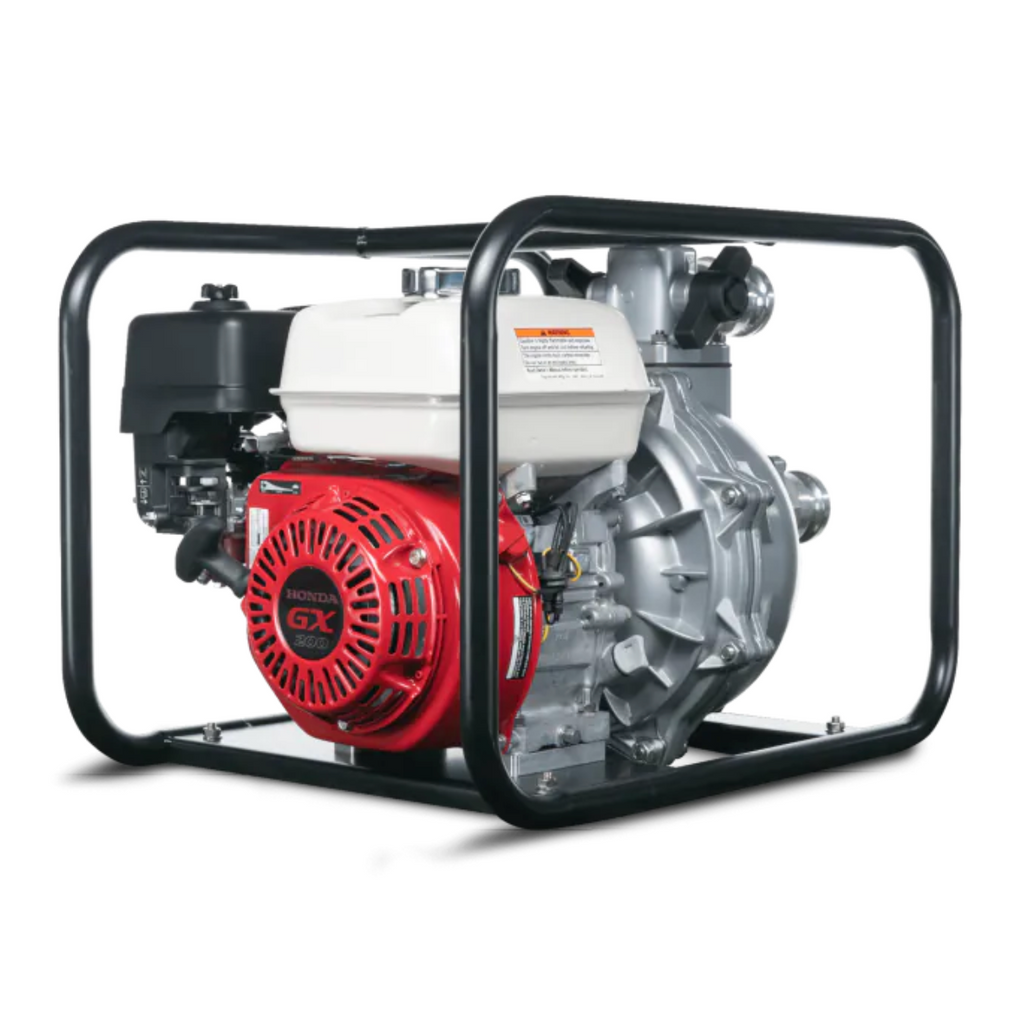

UP650 2” High Pressure Pump
Honda's High Pressure Fire Fighting Pumps are a reliable and trusted brand of fire fighting equipment. Designed to pump water higher and further to fight fires from a safe distance. Also fitted with spark arrester for the safest way to get water to where it needs to be. There's a UP650 to suit your needs and conditions.
GENERAL FEATURES
The UP650MF petrol engine utility pump has been developed to combine high pressure, high volume and excellent self priming. The pump was developed in Melbourne over many years by an experienced team of engineers for fighting fires and other water transfer applications.
Engine: Honda GX200 6.5hp
Orange Pumps has developed a unique range of engine driven pumps for fighting fires and other water transfer applications by combining high pressure, high volume and excellent self priming. The Utility Pump has been developed in Melbourne over many years by an experienced team of engineers.
Self priming quickly is critical for fire fighting applications. The UP range of pumps use a single impeller which out performs twin impeller units when priming. The UP range can prime in under 1 minute with a 3½ metre vertical lift, which is five times quicker than the industry average and even higher for twin impeller pumps.
The impeller is constructed from a single piece of cast aluminium which is far stronger and more reliable than impellers that are glued, bolted or riveted together. Each impeller has been balanced and tested to reduce wear and tear on the engine bearings caused by shaft movement from non-concentric forces. The impeller features a self clearing, wide vane for small solids handling.
Torque Tuned Impeller
Integral to the design of the pump is the torque tuned impeller which maximises the engines horsepower enabling more pressure to be delivered with every increase in revolution of the shaft. The UP range is unique in the market by delivering up to 75 metres of pressure from a single impeller.
UP RANGE FEATURES:
-
Recognized Engine Manufacturer
-
Torque tuned Impeller
-
Impeller balanced and tested
-
Single cast wide vane Impeller
-
Impeller clearing vanes
-
Dual threads
-
Built in check valve
-
Single cast Diffuser
UP RANGE BENEFITS:
-
Strength and reliability
-
Proven engine reliability
-
High volume and high pressure
-
Twin impeller pressures from a single impeller
-
Easy to prime
-
Quick suction performance
-
Longer engine bearing life
-
Small solids handling
-
Choice of pipe threads
-
Spark Arrester
| Pump Use | High Pressure Water Pump |
| Product Code | UP650MF |
| Pump Type | High Pressure Water Pump |
| Engine | GX200 |
| Displacement | 196 cc |
| Fuel Type | Unleaded |
| Oil Alert | Yes |
| Recommended Oil Type | 10W/30 API SG |
| Total Head | 75 m |
| Suction Head | 8 m |
| Max Discharge Capacity | 550 litres/min |
| Fuel Consumption | 1.7 litres/hour approx. |
| Continuous Duty | 3000 rpm |
| Fuel Tank Capacity (Litres) | 3.1 litres |
| Oil Capacity | 0.6 litres |
| Diameter | 2 " |
| Inlet | 2" and 2 x 1" BSP (male) |
| Outlet | 2" (male) |
| Length | 530 mm |
| Width | 440 mm |
| Height | 55 mm |
| Dry Weight | 30.1 kg approx. |
