DUCATI PANIGALE V4 & V4S (excluding the V4 Speciale) fitting hardware for US-Drypacks.

The kit consists of high quality hypalon & nylon webbing loops, that easily fit under the pillion seat using the existing mounting locations.

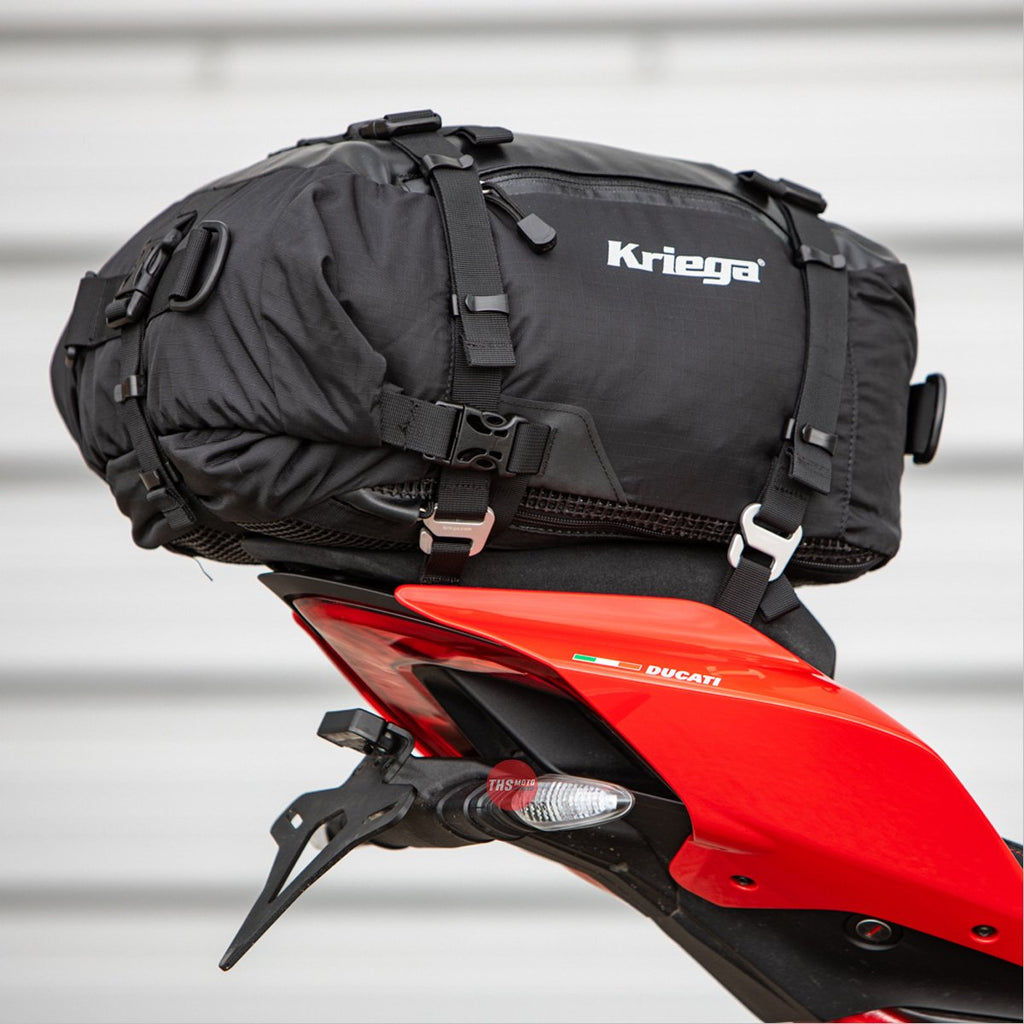

Once fitted, they provide strong hook-on points for any Kriega US-Drypack or US-Drypack Combo.

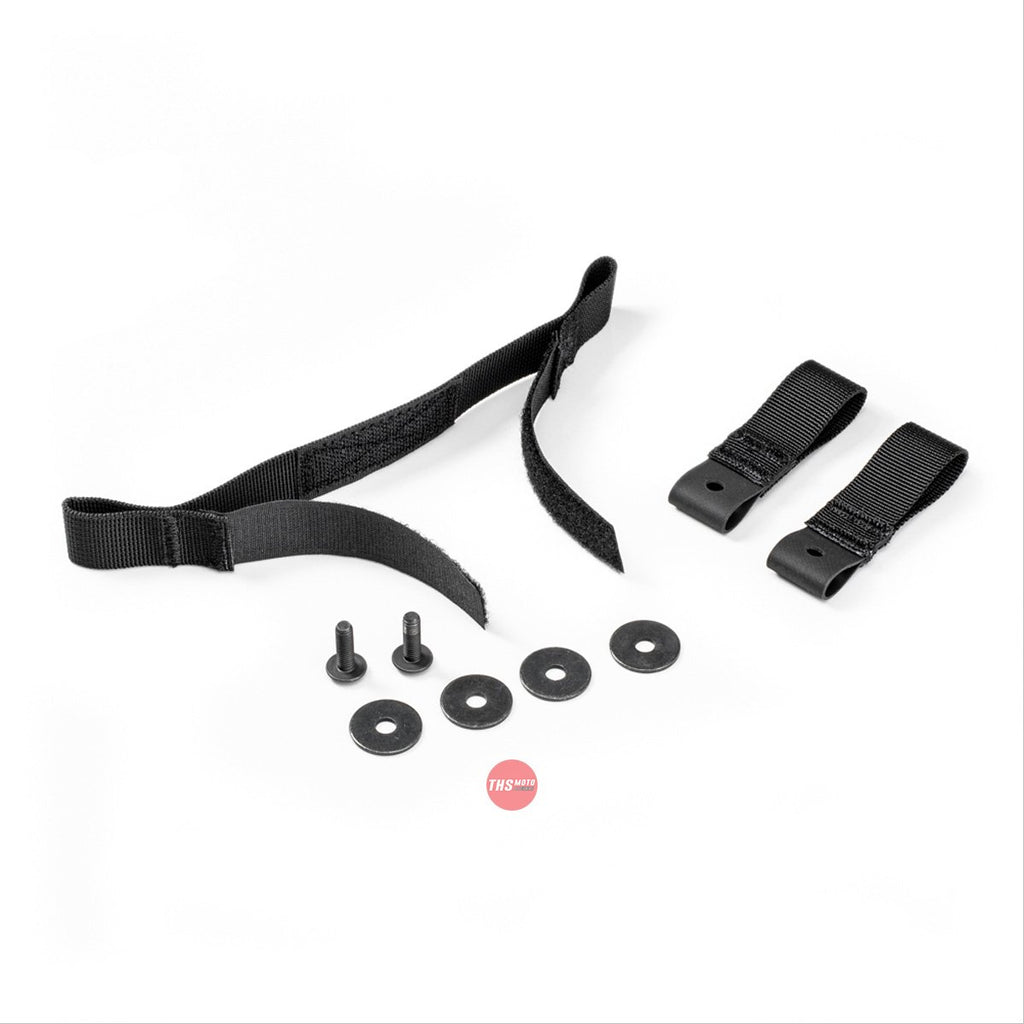

PACK CONTENTS
1 x hook & loop strap
2 x bolt-on loops - 65mm - 5mm hole
2 x M5 allen head bolts
4 x M5 washers

FITTING
Remove the pillion seat, unscrew and remove the rear cover.

Wrap the long strap under the centre section and secure with the hook & loop fixing. Replace the rear cover.

Slide an M5 washer inside each hypalon end of the bolt-on loops.

Use the M5 bolts + M5 washers to fix in position as illustrated.

WEIGHT
20g
