Description
APRILIA TUONO V4 FACTORY specific fitting hardware for US-Drypacks.
Also fits RSV4 RF & RSV4 RR (but excludes the TUONO RR) and all models must have the pillion seat option.
The kit consists of high quality hypalon & nylon webbing loops, that easily fit under the pillion seat using the existing mounting locations.
Once fitted, they provide strong hook-on points for any Kriega US-Drypack or US-Drypack Combo.

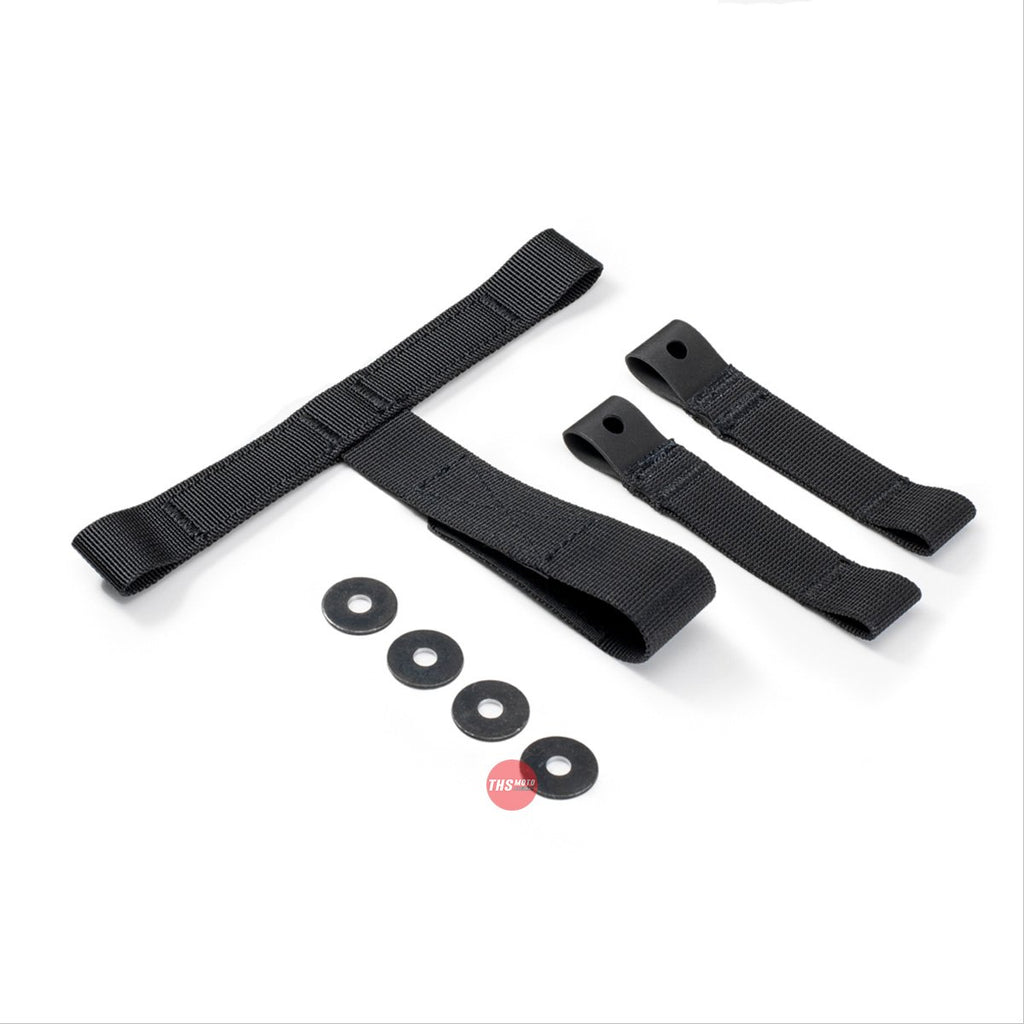

PACK CONTENTS
1 x ‘T’ shaped hook & loop strap
2 x bolt-on loops - 95mm - 6mm hole
4 x M6 washers
FITTING

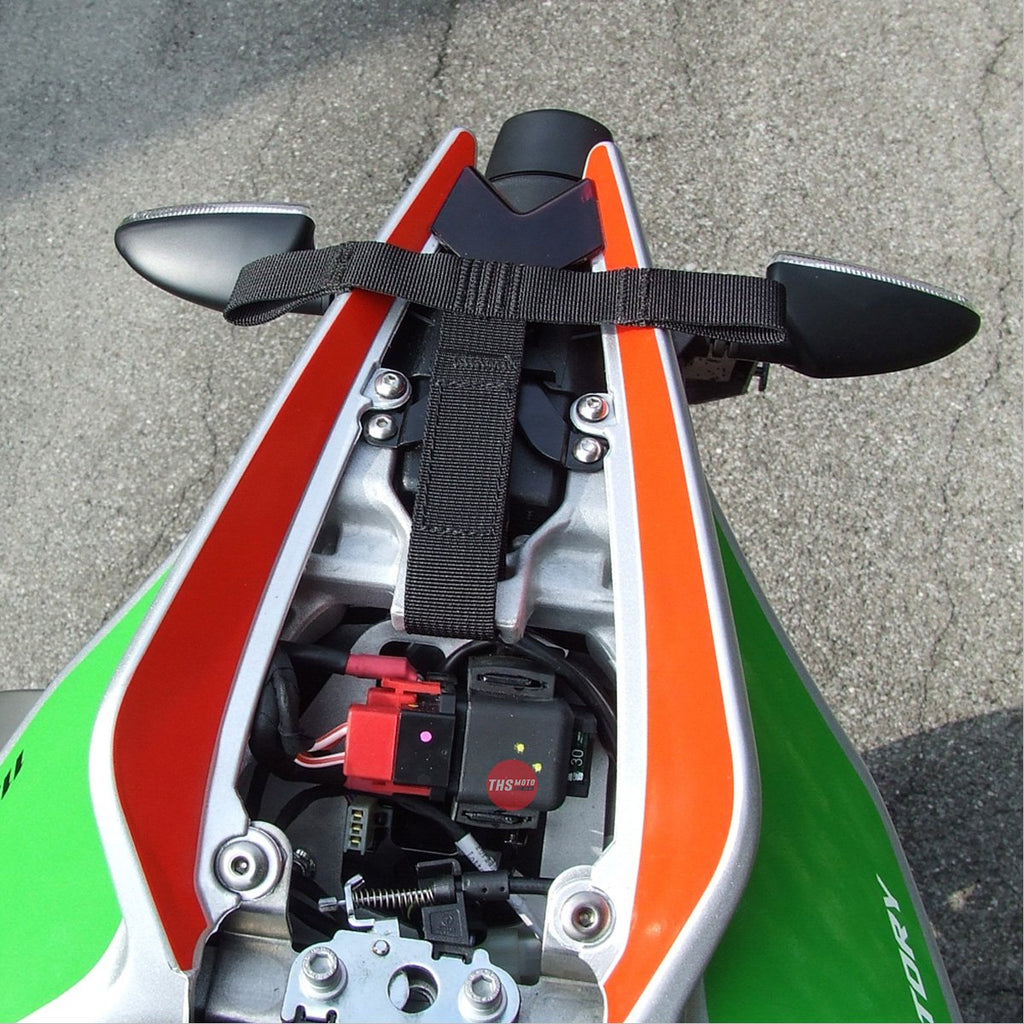

Remove the pillion seat, thread the ‘T’ strap under the centre section and secure using the hook + loop fixing.

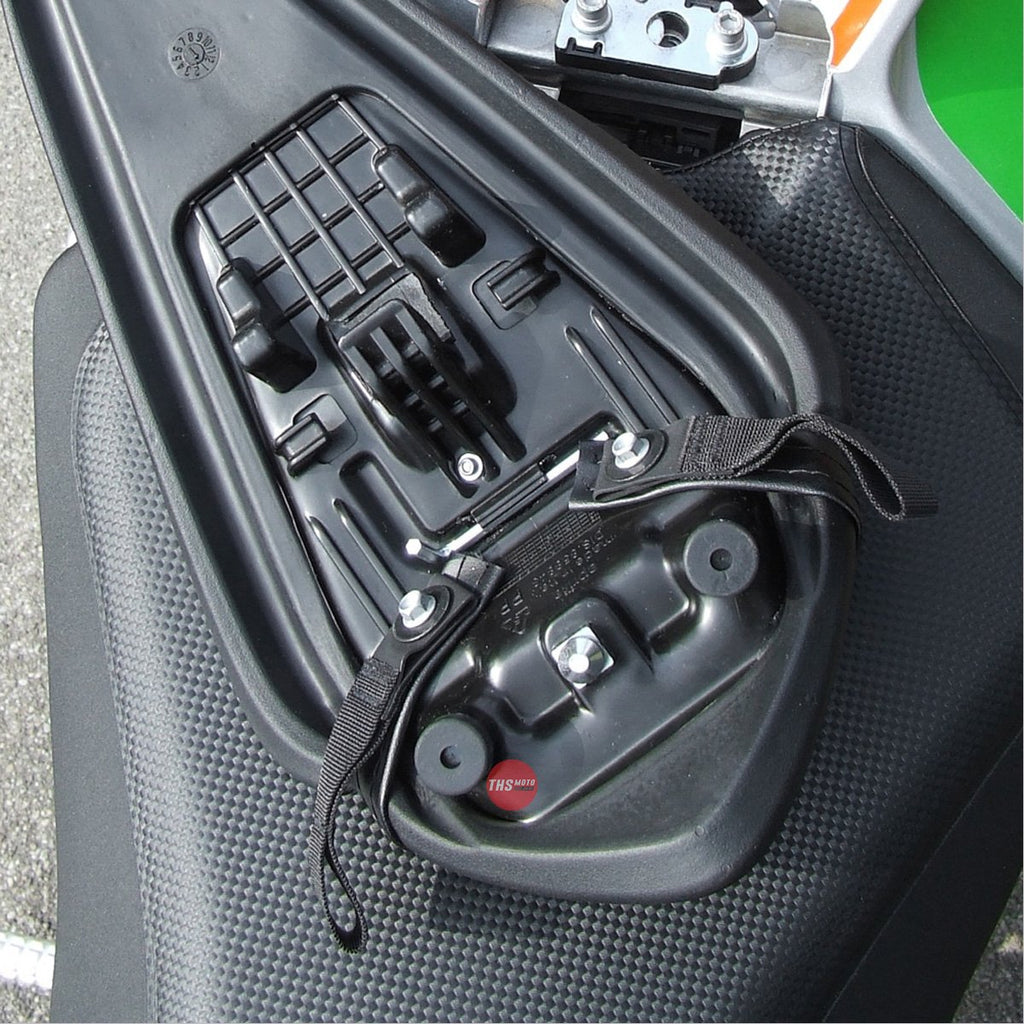

Slide two M6 washers inside the two bolt-on loops. Use the existing seat-strap M6 bolts plus the extra two washers to secure in position as illustrated.
NOTE
We advise you add some protective tape to the 2 rear fins to protect the the paintwork
WEIGHT
20g
