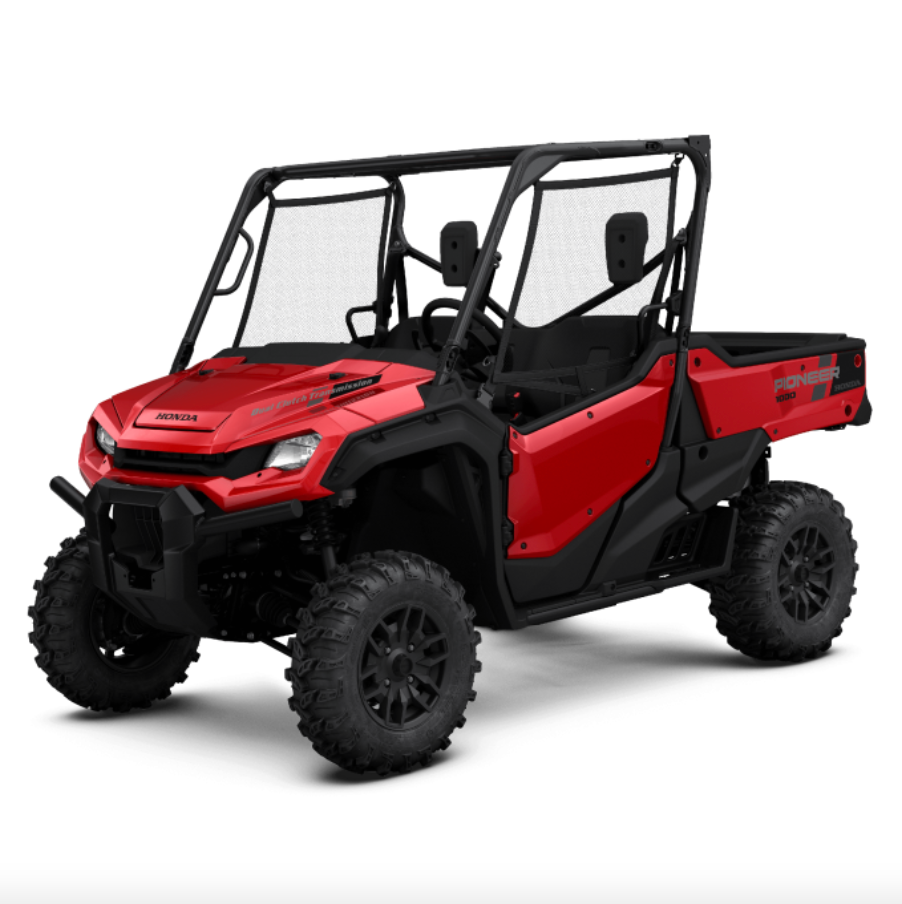

The Pioneer 1000 takes everything we have learnt from our ATVs and side-by-sides and added to them. A powerful 999cc twin engine, especially in the mid and top range, combined with lower gear ratios to deliver strong acceleration, versatility, and performance. The towing capacity is a massive 1,134kg (with 454kg hauling) and there's added ground clearance and larger tyres. Added Deluxe features like alloy wheels further enhance your experience.
Fully-independent front and rear suspension with some of the longest travel of any multi-purpose side-by-side. Open or locked front and rear differentials prevent you from unnecessarily tearing up delicate surfaces. And let’s remember: this is a Honda, a name that’s long stood for quality and reliability. So you get class-leading power, performance, and features, purpose-built by the best in the business.
Deluxe Features
The Pioneer 1000-3P Deluxe offers all the features of the 3P with the addition of 14" aluminium wheels with an all black finish, an under-dash storage shelf to help keep useful items within arms reach, and an accessory switch panel integrated into the dashboard design. A 12-Volt power socket in the bed using a common “cigarette-lighter” style of outlet, perfect for powering things like a spotlight, work light, sprayer, air compressor, 110-Volt inverter and more.
Engine Type |
Longitudinally mounted liquid-cooled OHC Unicam parallel-twin four-stroke |
Engine Displacement |
999 cc |
Bore and Stroke |
92.0mm x 75.15mm |
Compression Ratio |
10:1 |
Ignition |
Full-transistorized type with electronic advance |
Fuel System |
Programmed fuel injection (PGM-FI) - 44mm throttle body |
Cylinders |
2 |
Valves |
6 |
Starter |
Electric |
Gearbox |
Steel gears |
Final Drive |
Direct front and rear driveshafts |
Transmission Type |
6-Speed Automatic Dual Clutch Transmission (DCT) |
Drive Modes |
TraxLok 2WD/4WD, Diff-lock, Turf Mode & High/Low Sub Transmission |
Suspension Front |
Independent double-wishbone |
Suspension Rear |
Independent double-wishbone |
Brakes Front |
Dual hydraulic 210mm discs |
Brakes Rear |
Dual hydraulic 210mm discs |
Tyres Size Front |
27 x 9 - 14 |
Tyres Size Rear |
27 x 11 - 14 |
Steering Type |
Electric power steering with return to centre |
Adjustable Steering |
Tilting steering wheel |
Wheelbase |
2037 mm |
Ground Clearance |
328 mm |
Seating Capacity |
3 |
Kerb Weight |
777 kg |
Fuel Capacity |
29.9 litres (Including 6.4 litres reserve) |
Length |
2961 mm |
Width |
1598 mm |
Height |
1938 mm |
Towing Capacity |
1134 kg |
Rear Carrier Capacity |
454 kg (With hydraulic assist lever (accessible from cab or outside)) |
