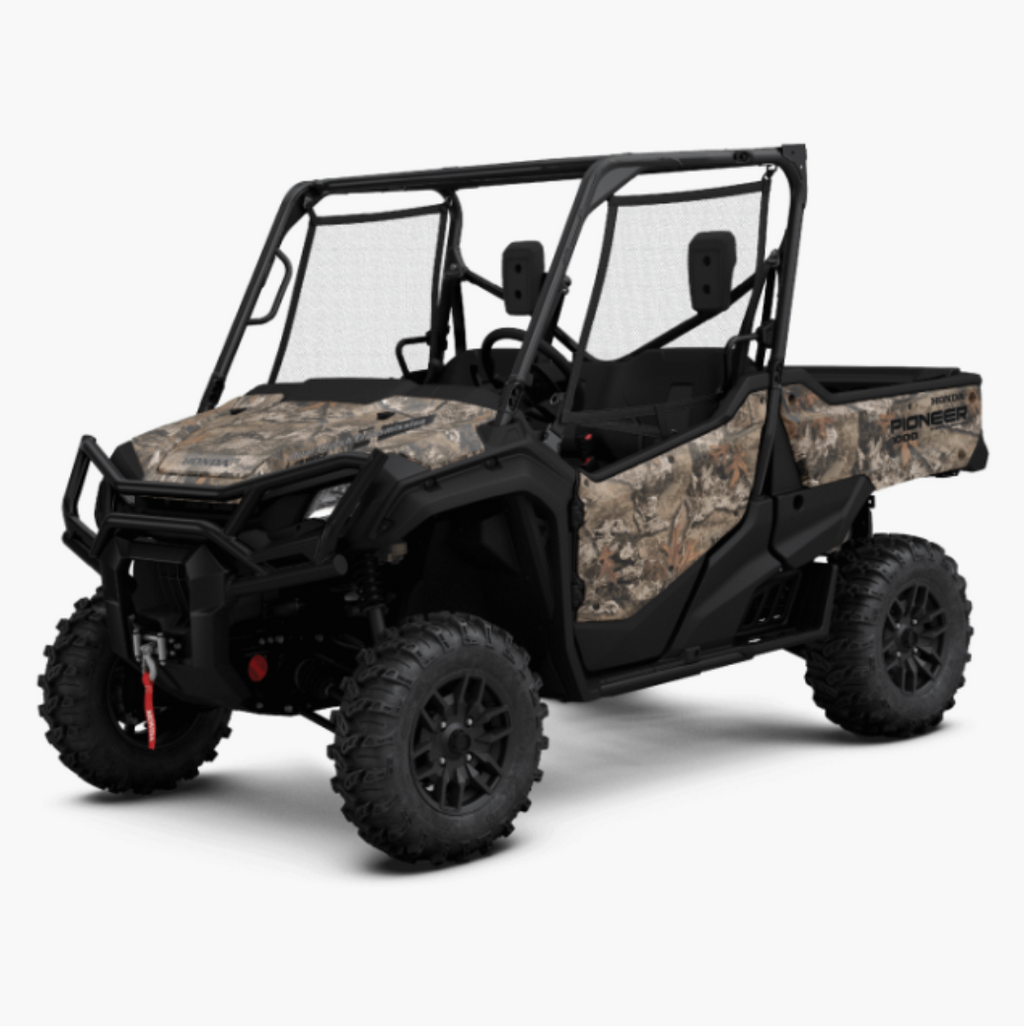

The Pioneer 1000 takes everything we have learnt from our ATVs and side-by-sides and added to them. The Forest Edition also adds some awesome extras like a Warn winch, black alloy wheels, i-4WD, Camo decals and more.
A powerful 999cc twin engine, especially in the mid and top range, combined with lower gear ratios to deliver strong acceleration, versatility and performance. The towing capacity is a massive 1,134kg (with 454kg hauling) and there's added ground clearance and larger tyres. Fully-independent front and rear suspension with some of the longest travel of any multi-purpose side-by-side.
And let’s remember: this is a Honda, a name that’s long stood for quality and reliability. So you get class-leading power, performance and features, purpose-built by the best in the business.
Forest Edition Features
The Forest Edition comes with a range of extras including i-4WD for smarter traction in slippery conditions, a Warn VRX 45 winch, a rear bed light and interior light, black aluminium wheels, and oversized front bumper and TreuTimber Atera Camo graphics
| Engine Type |
Longitudinally mounted liquid-cooled OHC Unicam parallel-twin four-stroke |
| Engine Displacement |
999 cc |
| Bore and Stroke |
92.0mm x 75.15mm |
| Compression Ratio |
10:1 |
| Ignition |
Full-transistorized type with electronic advance |
| Fuel System |
Programmed fuel injection (PGM-FI) - 44mm throttle body |
| Cylinders |
2 |
| Valves |
8 |
| Starter |
Electric |
| Gearbox |
Steel gears |
| Final Drive |
Direct front and rear driveshafts |
| Transmission Type |
6-Speed Automatic Dual Clutch Transmission (DCT) |
| Drive Modes |
TraxLok 2WD/4WD, Diff-lock, Turf Mode & High/Low Sub Transmission |
| Suspension Front |
Independent double-wishbone |
| Front Wheel Travel |
269 mm |
| Suspension Rear |
Independent double-wishbone |
| Rear Wheel Travel |
254 mm |
| Brakes Front |
Dual hydraulic 210mm discs |
| Brakes Rear |
Dual hydraulic 210mm discs |
| Tyres Size Front |
27 x 9 - 14 |
| Tyres Size Rear |
27 x 11 - 14 |
| Steering Type |
Electric power steering with return to centre |
| Adjustable Steering |
Tilting steering wheel |
| Wheelbase |
2037 mm |
| Ground Clearance |
325 mm |
| Seating Capacity |
3 |
| Kerb Weight |
761 kg (Includes all standard equipment, required fluids and full tank of fuel.) |
| Fuel Capacity |
29.9 litres (Including 6.4 litres reserve) |
| Length |
3058 mm |
| Width |
1600 mm |
| Height |
1946 mm |
| Towing Capacity |
1134 kg |
| Minimum Turning Radius |
4207 m |
| Rear Carrier Capacity |
454 kg (With hydraulic assist lever (accessible from cab or outside)) |
