Description

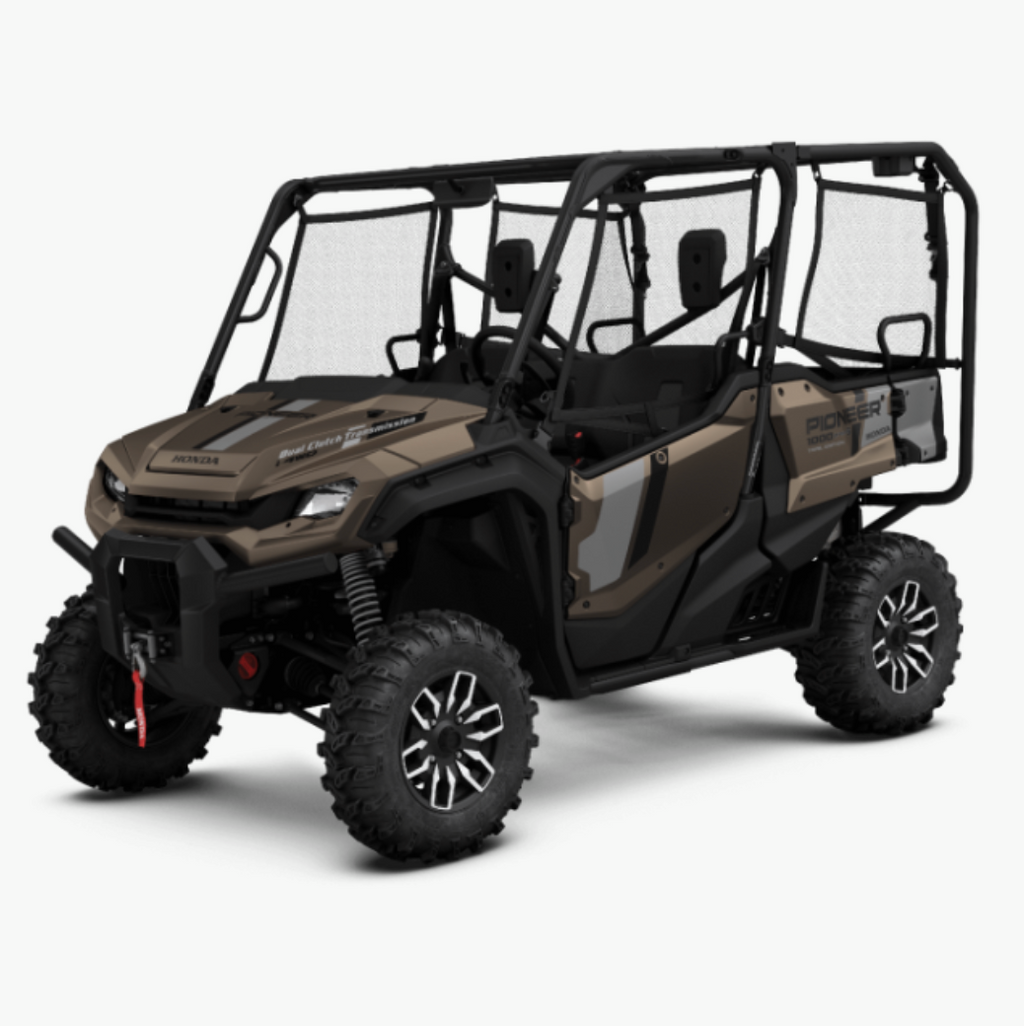

Pioneer 1000-5P Trail
(RRP - TBA)
The Pioneer 1000 takes everything we have learnt from our ATVs and side-by-sides and added to them. The Trail edition features a range of extras including Warn winch, Fox suspension, i-4WD and more.
A powerful 999cc twin engine, especially in the mid and top range, combined with lower gear ratios to deliver strong acceleration, versatility and performance. The towing capacity is a massive 1,134kg (with 454kg hauling) and there's added ground clearance and larger tyres. Fully-independent front and rear suspension with some of the longest travel of any multi-purpose side-by-side. And open or locked front and rear differentials that prevent you from unnecessarily tearing up delicate surfaces. And let’s remember: this is a Honda, a name that’s long stood for quality and reliability. So you get class-leading power, performance, and features, purpose-built by the best in the business.
Quickflip® Seating
A Breath of Fresh Air
To get the most out of your engine, you need the best air going into it. That’s why we positioned the air intake up high under the hood. It helps ensure a clean air supply, even at deeper fording depths, and with a new viscous air filter element, you get increased performance and longer service intervals.
| Engine Type | Longitudinally mounted liquid-cooled OHC Unicam parallel-twin four-stroke |
| Engine Displacement | 999 cc |
| Bore and Stroke | 92.0mm x 75.15mm |
| Compression Ratio | 10:1 |
| Ignition | Full-transistorized type with electronic advance |
| Fuel System | Programmed fuel injection (PGM-FI) - 44mm throttle body |
| Cylinders | 2 |
| Valves | 8 |
| Starter | Electric |
| Gearbox | Steel gears |
| Final Drive | Direct front and rear driveshafts |
| Transmission Type | 6-Speed Automatic Dual Clutch Transmission (DCT) |
| Drive Modes | TraxLok 2WD/4WD, Diff-lock, Turf Mode & High/Low Sub Transmission |
| Suspension Front | Independent double-wishbone |
| Front Wheel Travel | 267 mm |
| Suspension Rear | Independent double-wishbone |
| Rear Wheel Travel | 254 mm |
| Brakes Front | Dual hydraulic 210mm discs |
| Brakes Rear | Dual hydraulic 210mm discs |
| Tyres Size Front | 27 x 9 - 14 |
| Tyres Size Rear | 27 x 11 - 14 |
| Steering Type | Electric power steering with return to centre |
| Adjustable Steering | Tilting steering wheel |
| Wheelbase | 2037 mm |
| Ground Clearance | 335 mm |
| Seat Height | 871 mm |
| Seating Capacity | 5 |
| Kerb Weight | 780 kg |
| Fuel Capacity | 29.9 litres (including 6.4 litres reserve) |
| Length | 2969 mm |
| Width | 1595 mm |
| Height | 1963 mm |
| Towing Capacity | 1134 kg |
| Rear Carrier Capacity | 454 kg (With hydraulic assist lever (accessible from cab or outside)) |
