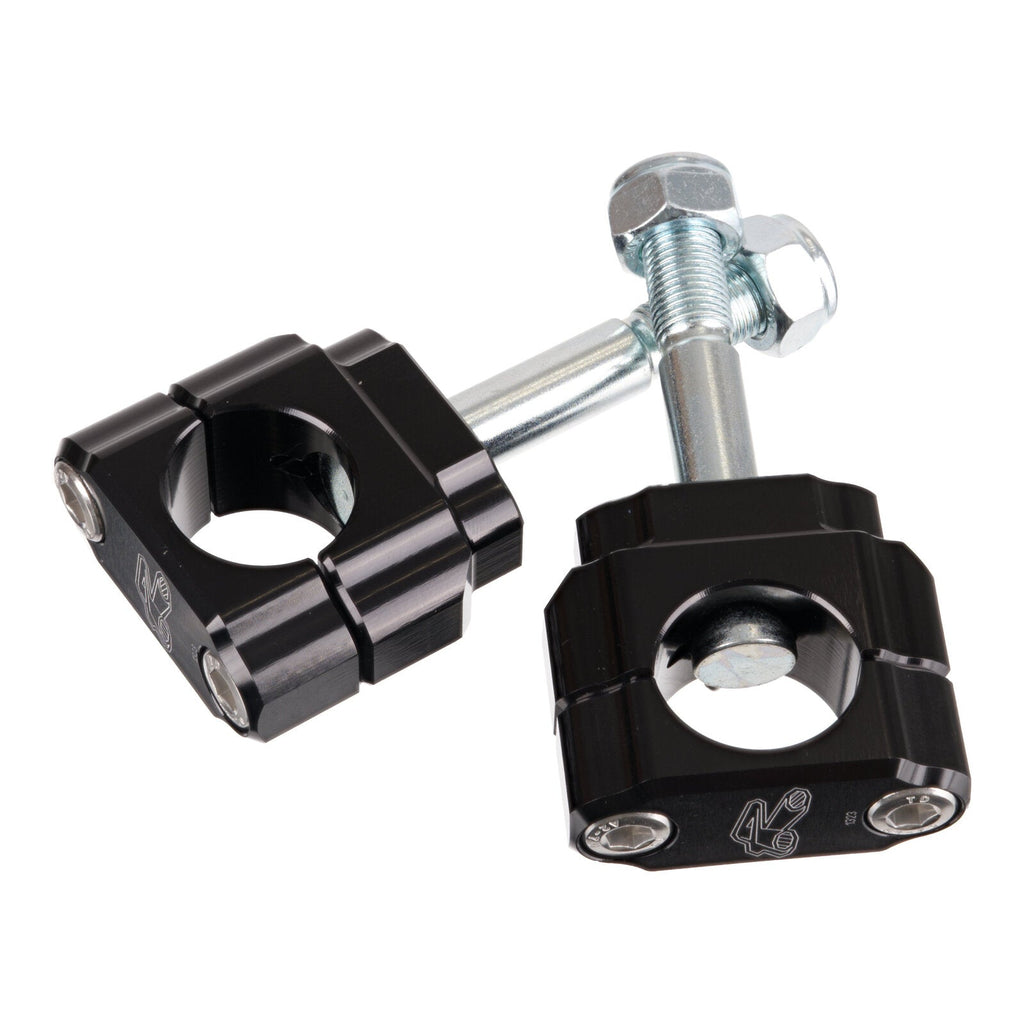

Renthal Handlebar Mounts 28.6mm Clamps No Offset
Roll over image to zoom in Click on image to zoom
https://whitespower-images-upper.s3-ap-southeast-2.amazonaws.com/ALL/RENTHAL/RECL002.JPG

Renthal Handlebar Mounts 28.6mm Clamps No Offset

Renthal RECL002
Price:
$119.49
Stock:
Sold out
[storeify-formbuilder-10443]

Description

Renthal 1-1/8 (28.6mm) street handlebar clamps are designed to allow the mounting of oversized 1-1/8 handlebars, such as the Twinwall and Fatbar to motorcycles which are equipped with 7/8 handlebars as standard.

Designed to use the OEM rubber cones.

CLAMPS

The handlebar clamping surfaces are accurately machined. This ensures a perfect fit between the handlebar and clamp which reduces possible movement. Available in different offsets and anodised to prevent corrosion.

CNC-MACHINED

Both the clamps and the bolts are carefully CNC machined at the Renthal Factory.

Taking a billet of material our CNC machines use various tools to machine away material, leaving the final product ready for finishing.

BOLTS

To minimise the chance of bolt failure, special attention has been paid to the design. The unique bolt head is designed with a part hemispherical seating blended into the shank. The bolt is plated and de-embrittled to resist corrosion. A stainless steel spring dowel pin prevents rotation when tightening.

MATERIAL

The clamps are CNC machined using a high-strength 6082 T6 Aluminium alloy. The bolts are CNC machined from nickel chromium molybdenum 817M40 steel that is both hardened and tempered to grade 'W'. Corresponding to an ultimate tensile strength of 1075-1225 N/mm or 70-80 Ton/in.

Honda CB300R 2019-2024 CR125R 2000-2007 CR250R 2002-2007 CRF250R 2004-2021 CRF250RX 2019-2024 CRF250X 2004-2016 CRF450R 2002-2024 CRF450RX 2017-2025 CRF450X 2005-2009 2012-2017 2019-2024 Kawasaki KLX140 Small Wheel 2011-2020 KLX140L Big Wheel 2011-2020 KLX140R Small Wheel 2024-2025 KLX140RF Full Size Wheel 2024-2025 KLX140RL Big Wheel 2024-2025 KX100 2014 KX112 2023-2025 KX125 2003-2008 KX250F 2006-2008 KX450F 2006-2008 KX85 Big Wheel 2001-2019 2022-2025 KX85 Small Wheel 2014-2025 Z650 2024-2025 Z650RS 2022-2025 Z900RS SE 2024-2025 Yamaha WR250F 2015-2025 WR450F 2016-2025 YZ250F 2014-2021 2023-2025 YZ250F SP 2024 YZ250FX 2015-2022 2025 YZ250X 2016 YZ450F 2014-2025 YZ450F SP 2024 YZ450FX 2016-2025 YZ65 2018-2025
