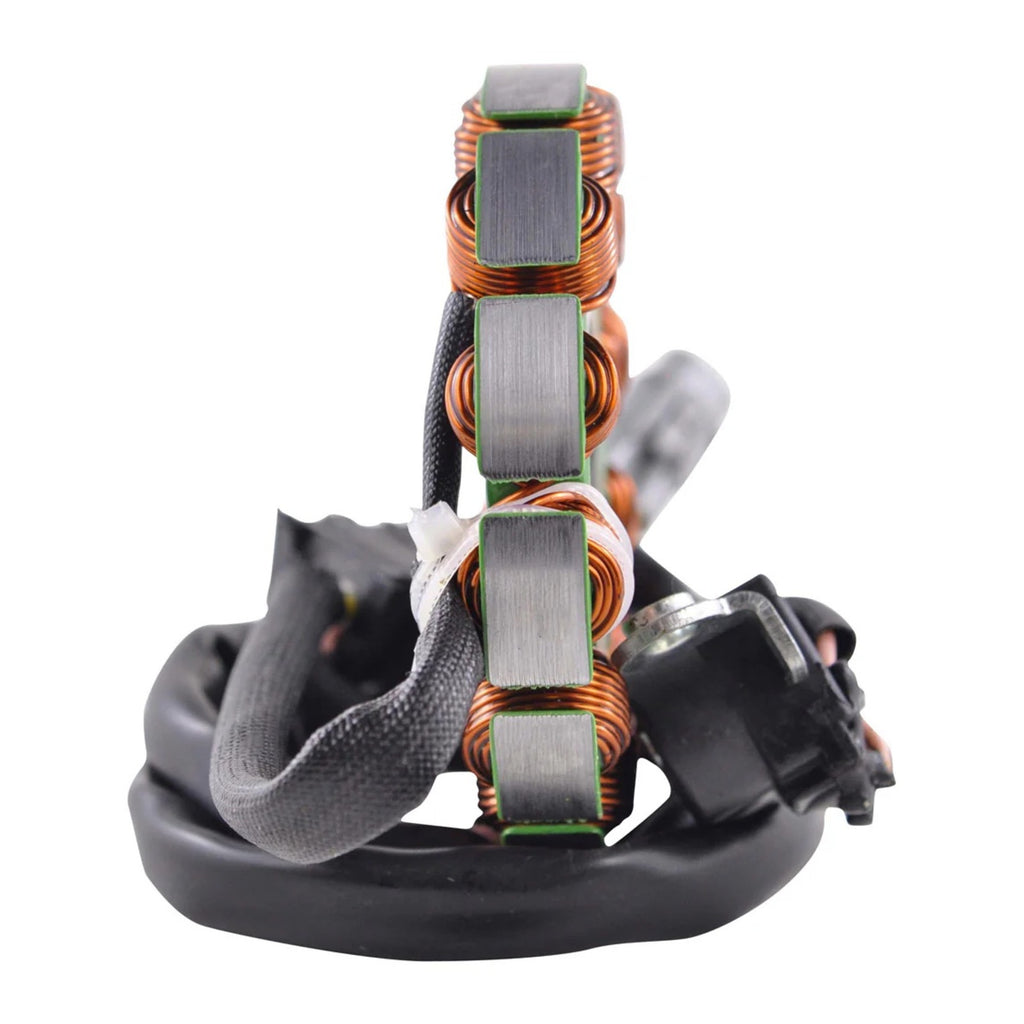

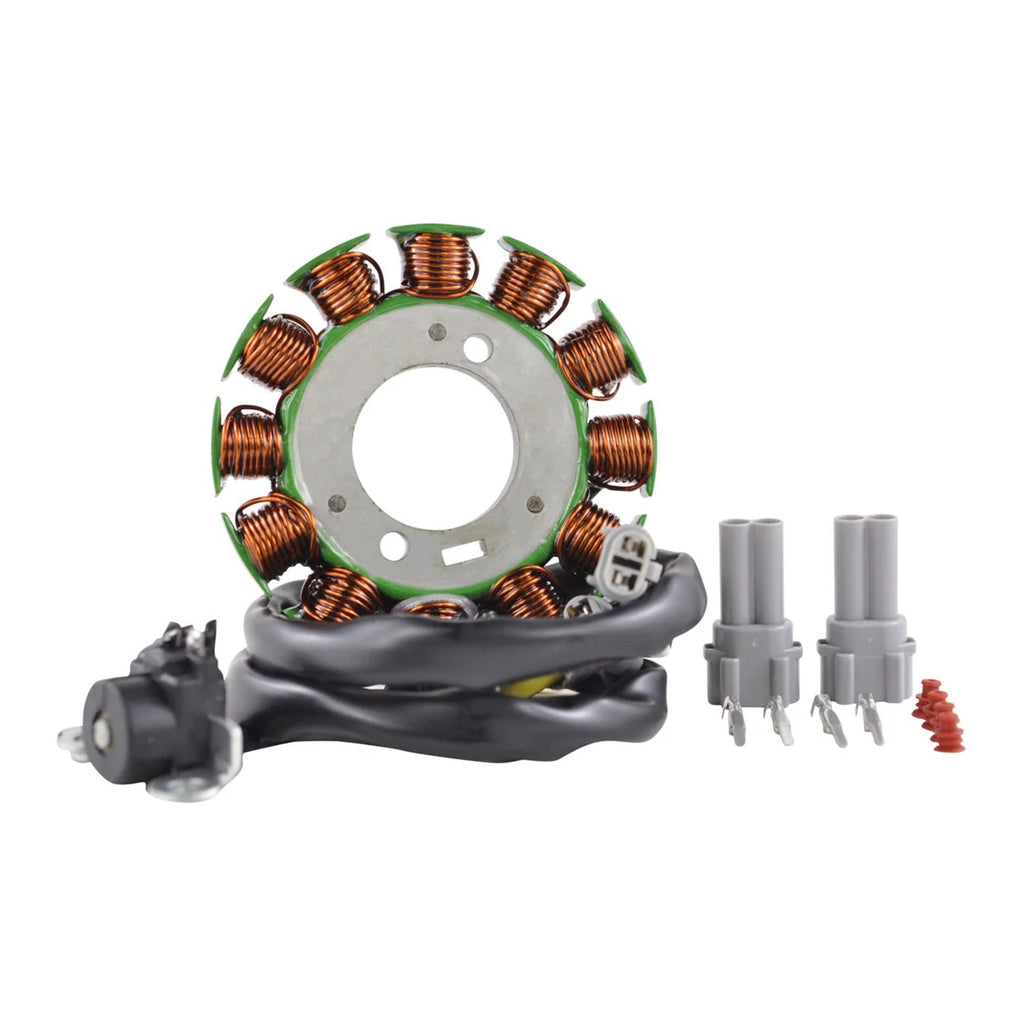

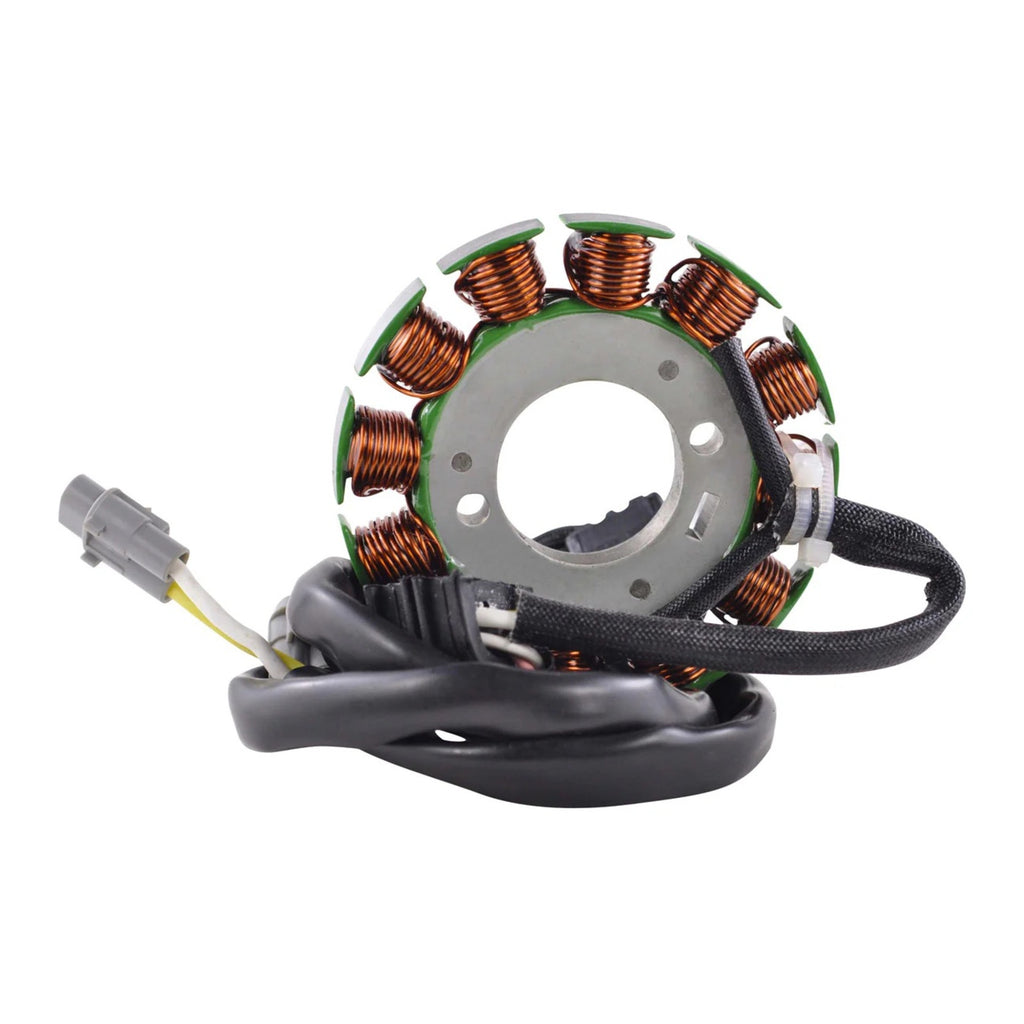

RM Stator Generator – Yamaha WR250F '05–'13

RM Stator RMS010100184

Price:
Sale price$304.49
Stock:
In Stock Online Ready to be shipped from our NZ Warehouse For store pickup please Contact Us.
[storeify-formbuilder-10443]

Description

Brand new aftermarket stator. Direct replacement to your original unit.

Features:

  • Plug-and-play direct fit easy installation.
  • Highest grade lamination materials
  • Highest grade copper windings resistant to 200 degrees Celsius.
  • Pick up pulsar coil included.

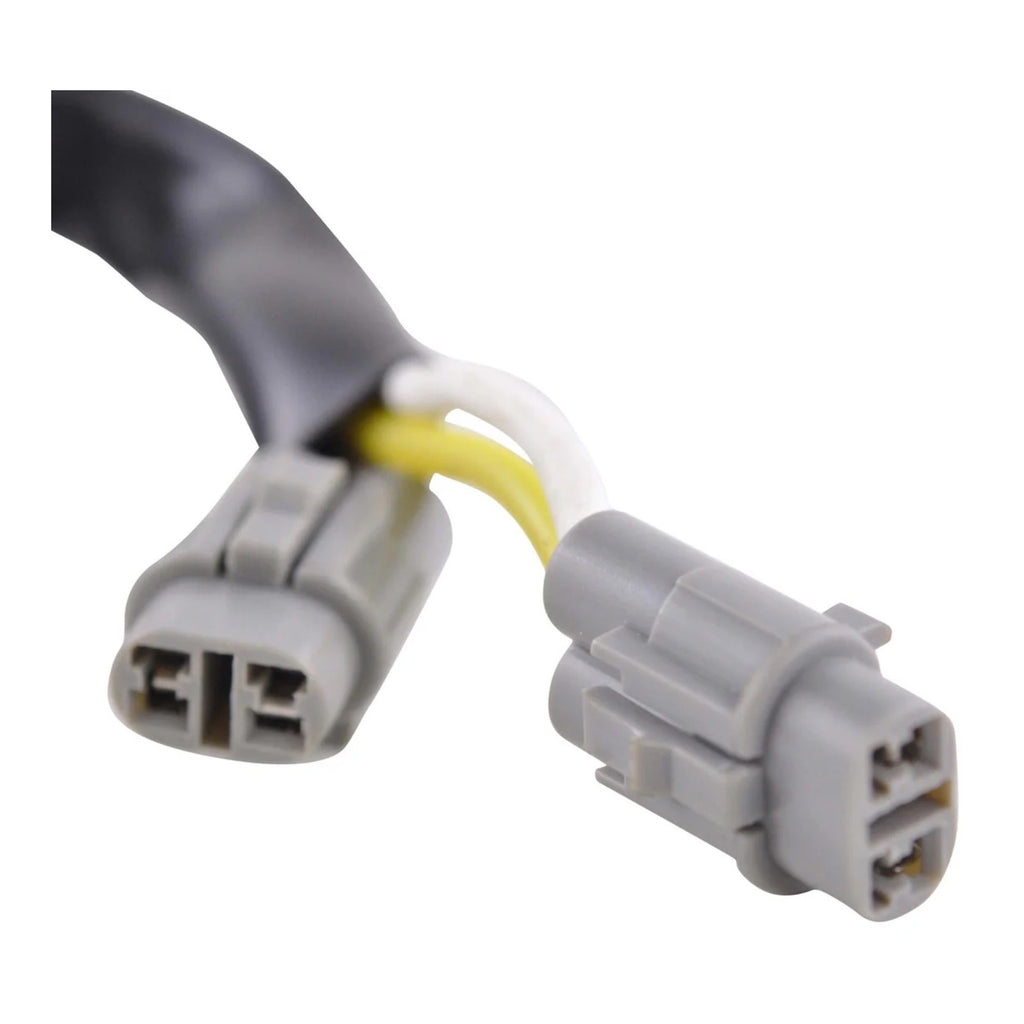

  • Connector included.
  • Rubber grommet included.
  • All products shipped are tested.

Specifications:

Di mensions

  • Interior Diameter: 30mm
  • Exterior Diameter: 84mm
  • Thickness: 9mm
  • Stator to Grommet: 110mm
  • Grommet to Plug: 545mm
  • Pickup Coil to Grommet: 90mm

Other Specifications

  • Number of Wires: 4
  • Number of Plugs: 2

Resistance Values

  • Alternator (Yellow to White): 0.4 Ω ±20%
  • Pickup (Pink to White): 280 Ω ±20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt have the battery load tested or replaced.



Yamaha WR250F 2005-2013
