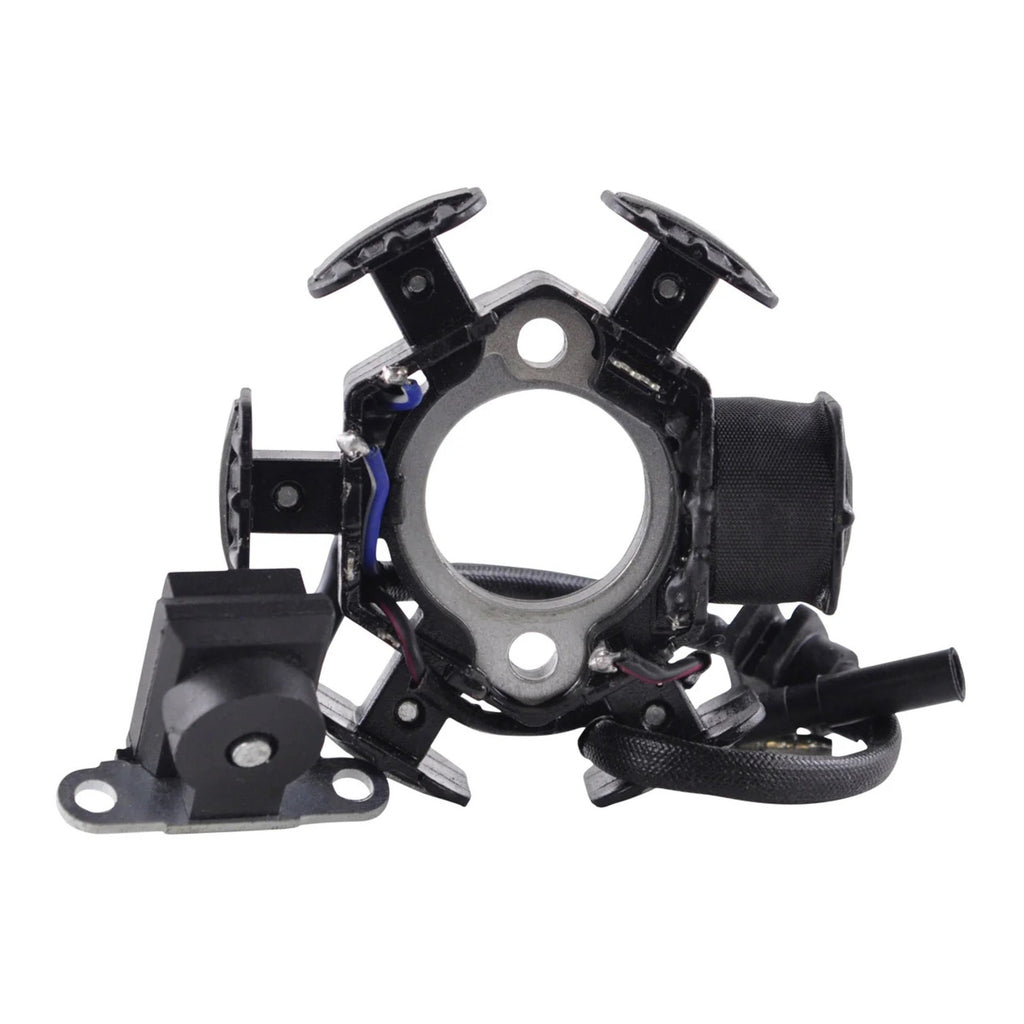

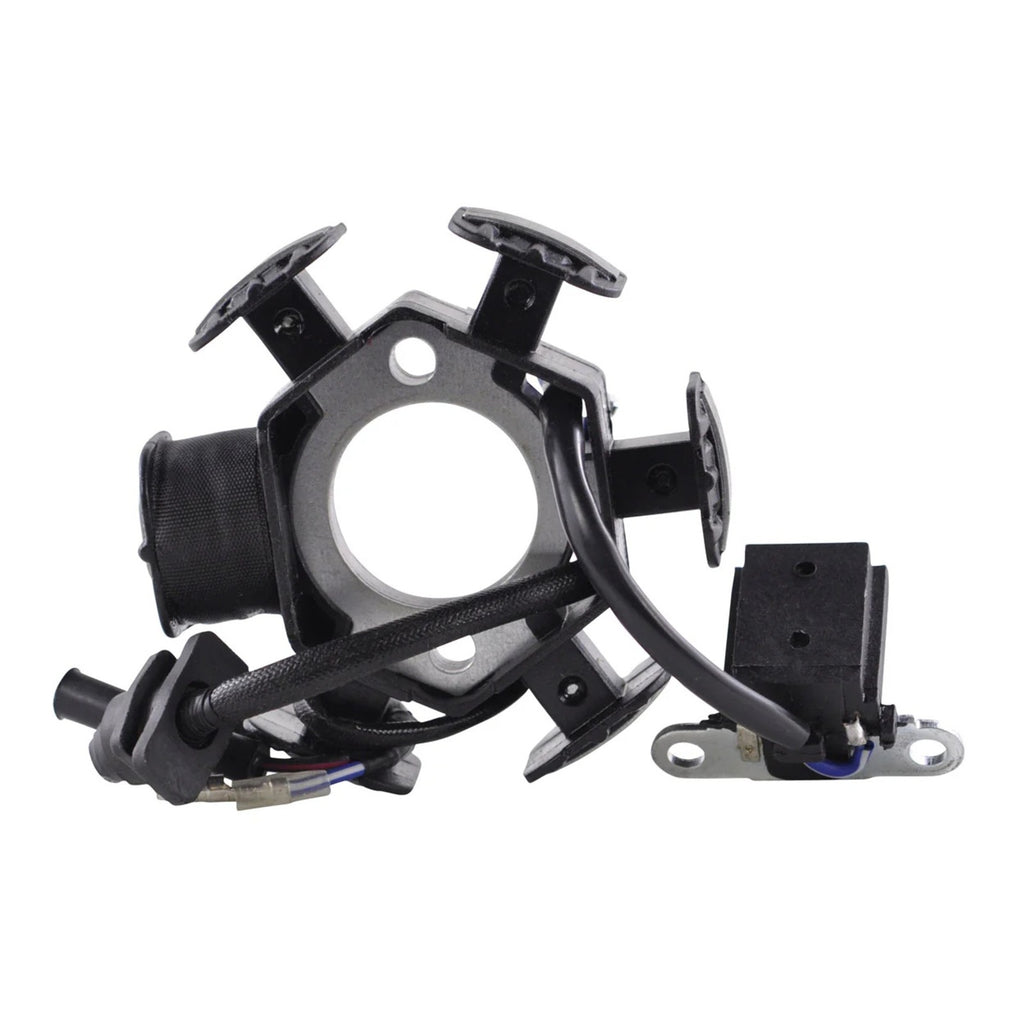

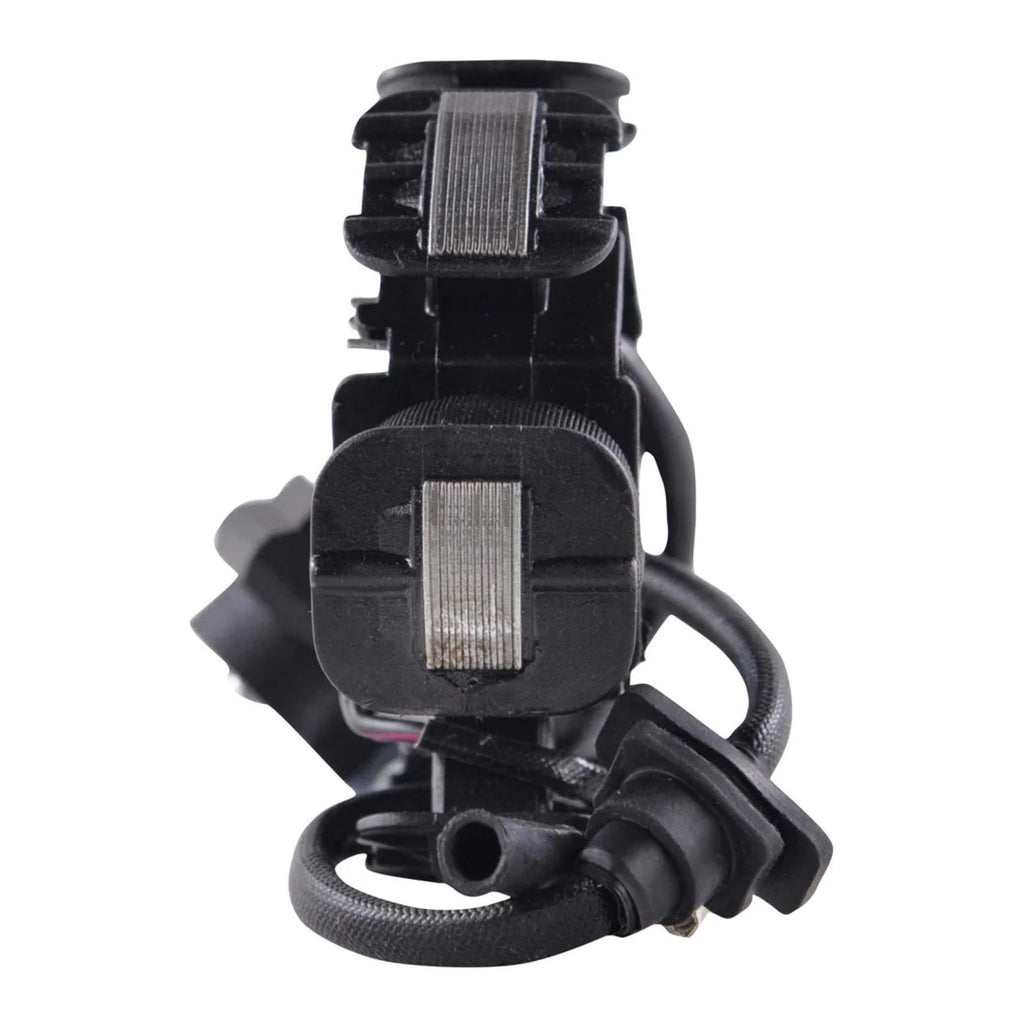

RM Stator for Honda CRF50F XR50R / Z50R XR70R '88-'24

RM Stator RMS010101530

Price:
Sale price$202.49
Stock:
In Stock Online Ready to be shipped from our NZ Warehouse For store pickup please Contact Us.
[storeify-formbuilder-10443]

Description

Brand new aftermarket stator. Direct replacement to your original unit.

Features:

  • Plug-and-play direct fit easy installation.
  • Highest grade of lamination materials.
  • Highest grade of copper windings resistant to 200 degrees Celsius.
  • Pick up pulsar coil included.
  • Connector included.
  • Rubber grommet included.
  • All products shipped are tested.

Technical Data

Dimensions:

  • Interior diameter: 29 mm
  • Exterior diameter: 83 mm
  • Thickness: 9 mm
  • Length of wires stator to grommet: 40 mm
  • Length of wires grommet to plug: 130 mm
  • Length of pickup coil's wire to grommet: 60 mm

Other specifications:

  • Number of wires: 2
  • Number of plugs: 2
  • Number of pins: 2

Wire-to-wire resistance:

  • Pickup: Blue/Yellow to Bracket = 120 ohms +-20%
  • Source: Black/Red to Ground = 715 ohms +-20%
Honda CRF50F 2004-2009 2012-2024 CRF70F 2004-2009 2011-2012 XR50R 2000-2003 XR70R 1997-2003 Z50R 1988-1989 1991-1999
