Description

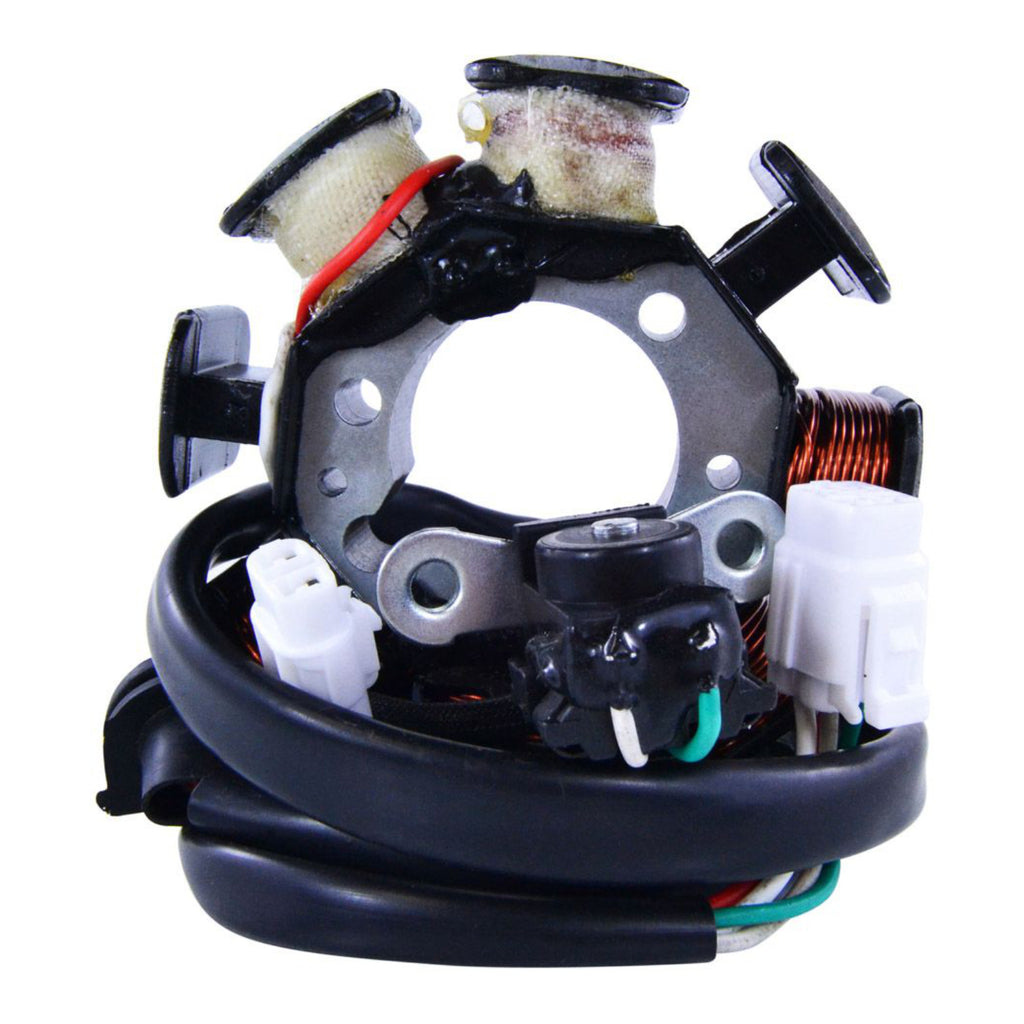

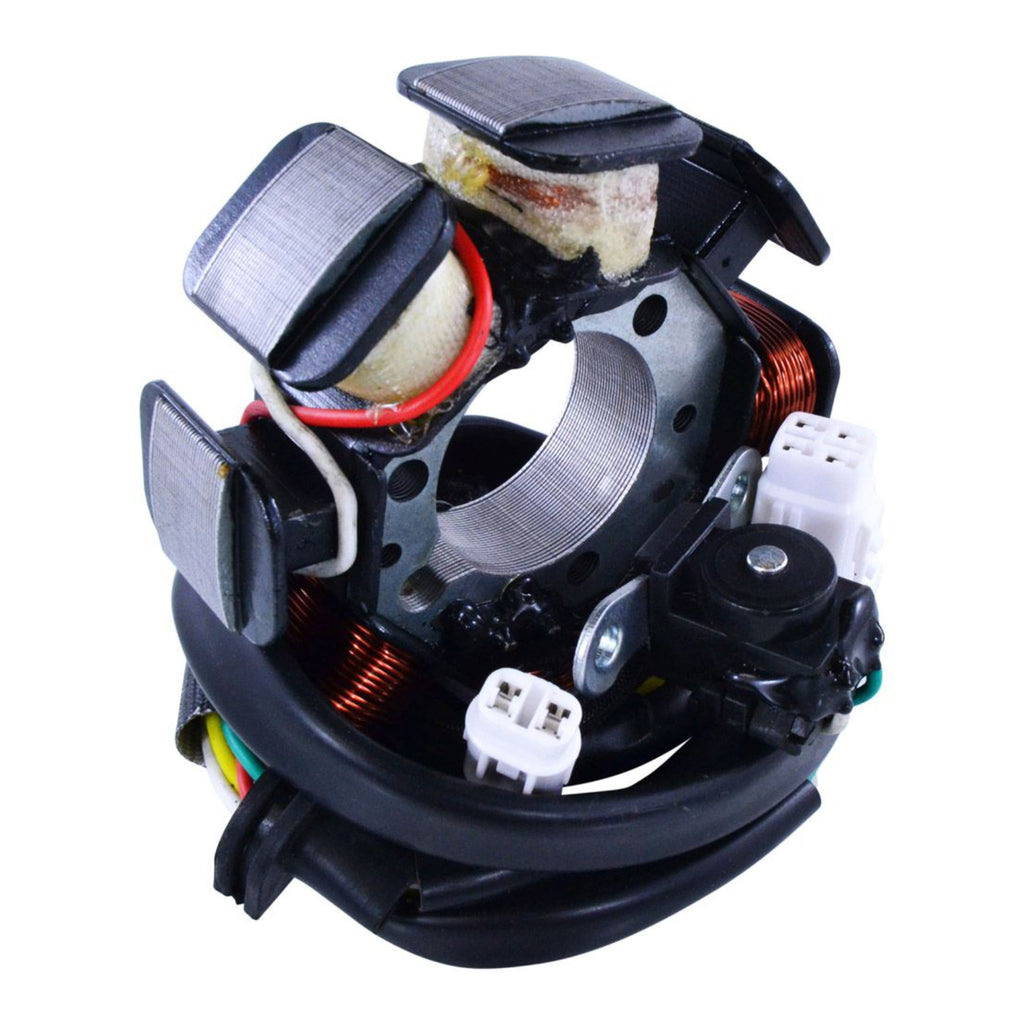

Kawasaki Stator
- KLX250 1994-1996
- KLX300 1997-2007
Specifications:
- E xterior Diameter: 93mm
- Interior Diameter: 35mm
- Thickness: 18mm
- OEM 21003-1274
- Resistant to 200 °C.
Direct replacement to your original unit.
- Plug-and-play direct fit easy installation
- Highest grade of lamination materials
- Highest grade of copper winding resistant to 200 degrees Celsius.

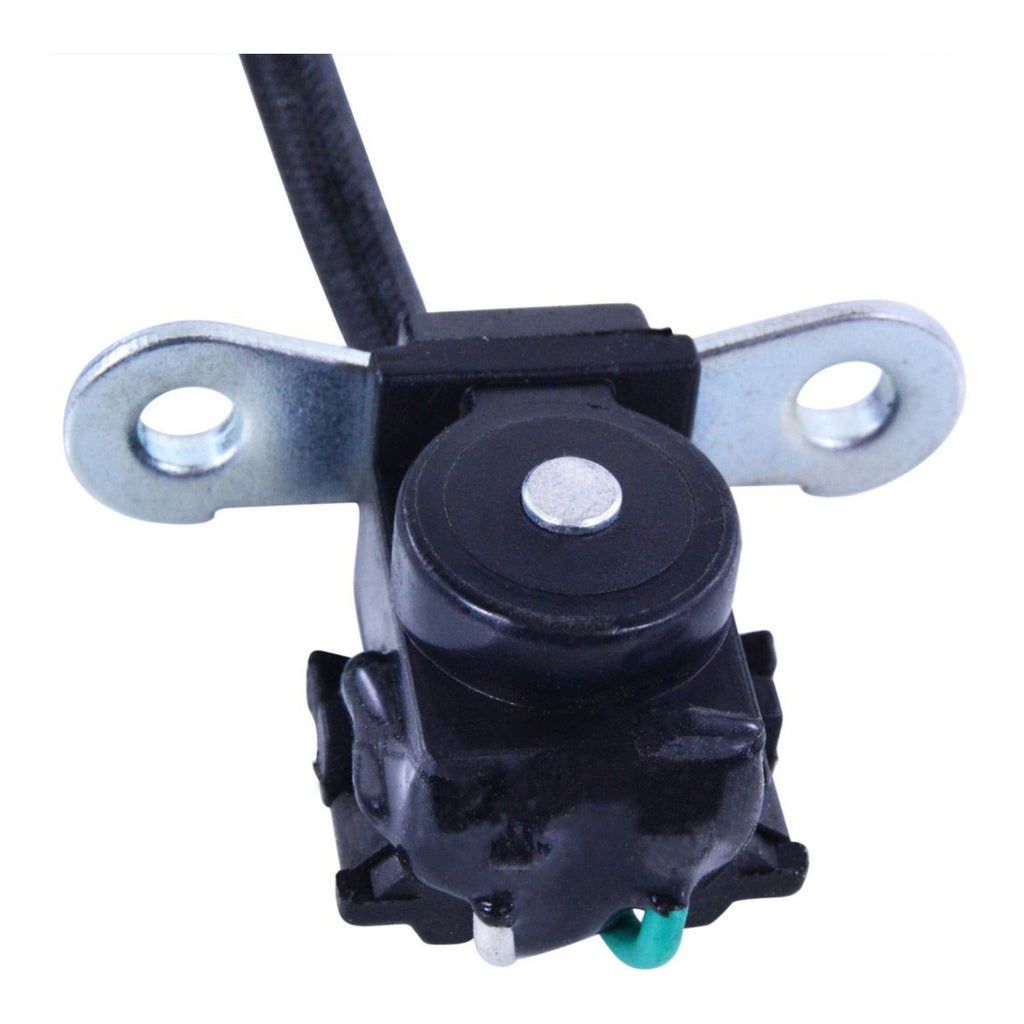

- Pick up pulsar coil included

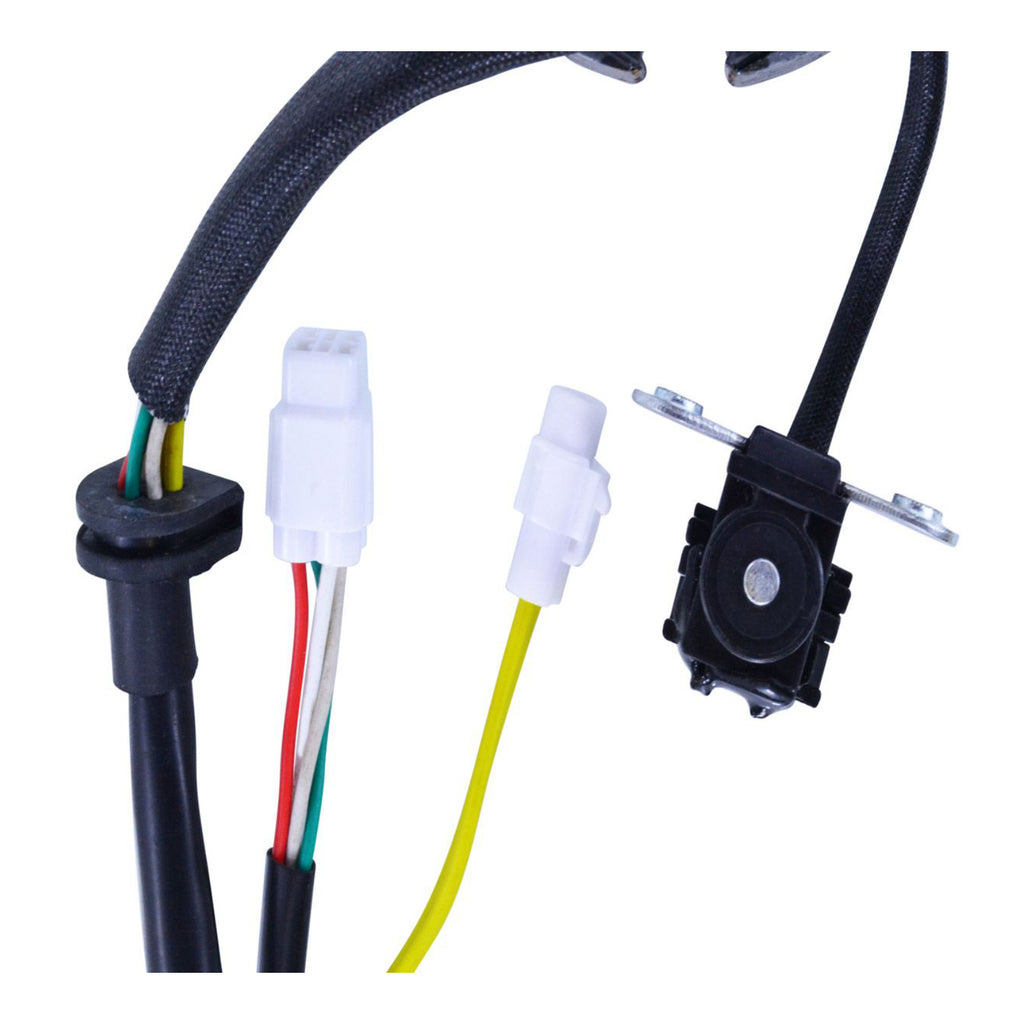

- Connector included

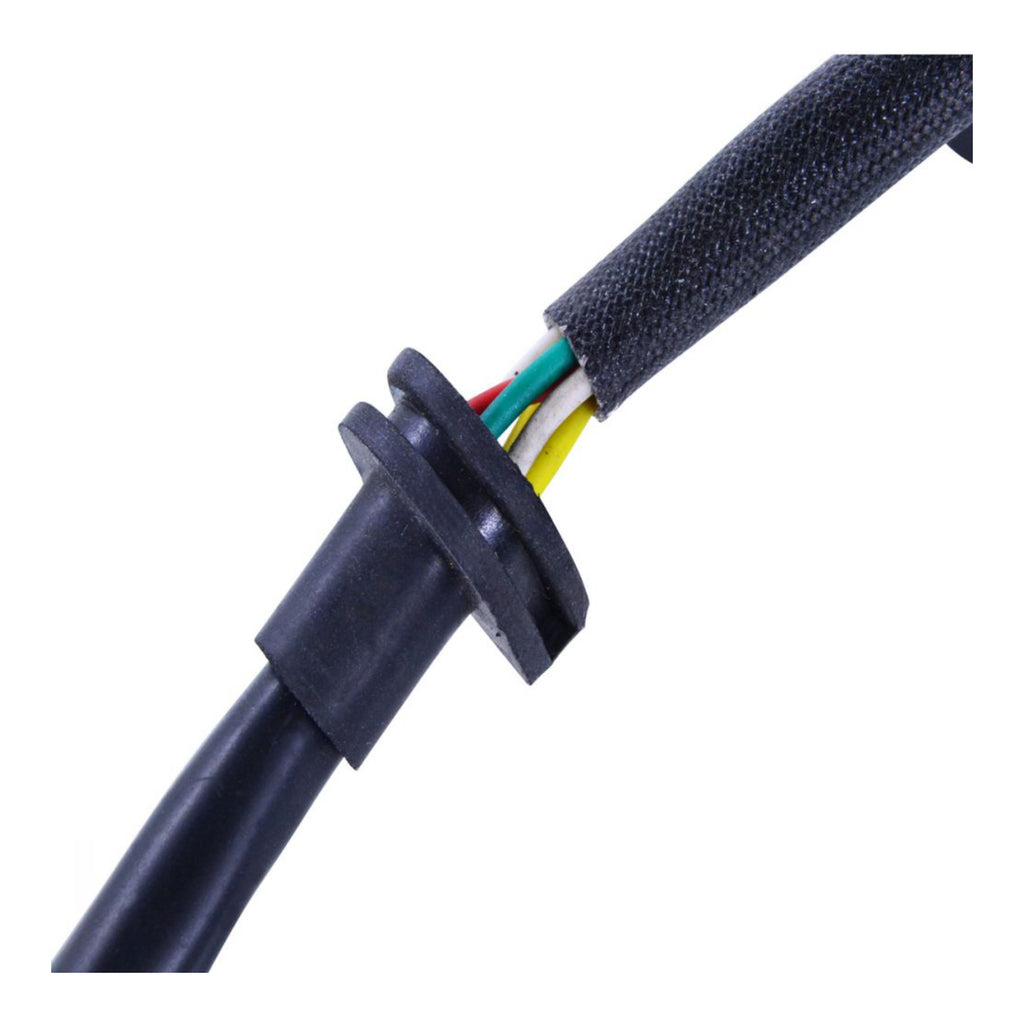

- Rubber grommet included
- All products shipped are tested
- All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Dimensions:
- Interior diameter: 35 mm
- Exterior diameter: 93 mm
- Thickness: 18 mm
- Length of wires stator to grommet: 130 mm
- Length of wires grommet to plug: 700 mm
- Length of pickup coil's wire to grommet: 60 mm
Other Specifications:
- Number of wires: 6
- Number of plugs: 2
- Number of pins: 6
Wire to Wire Resistance:
- Alternator: Yellow to Yellow = 0.9 ohms ±20%
- Source coil: Red to Black = 160 ohms ±20%
- Pickup: Green/White to White = 250 ohms ±20%
