Description

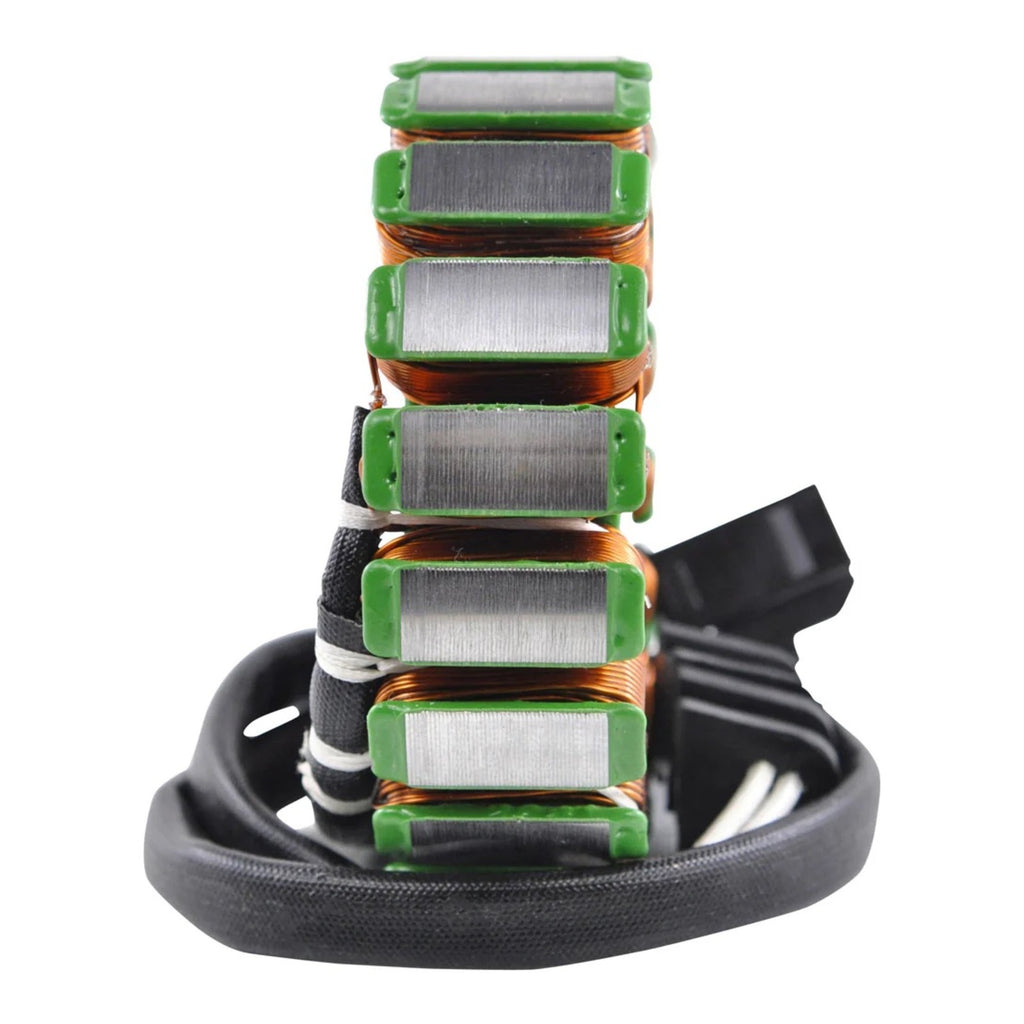

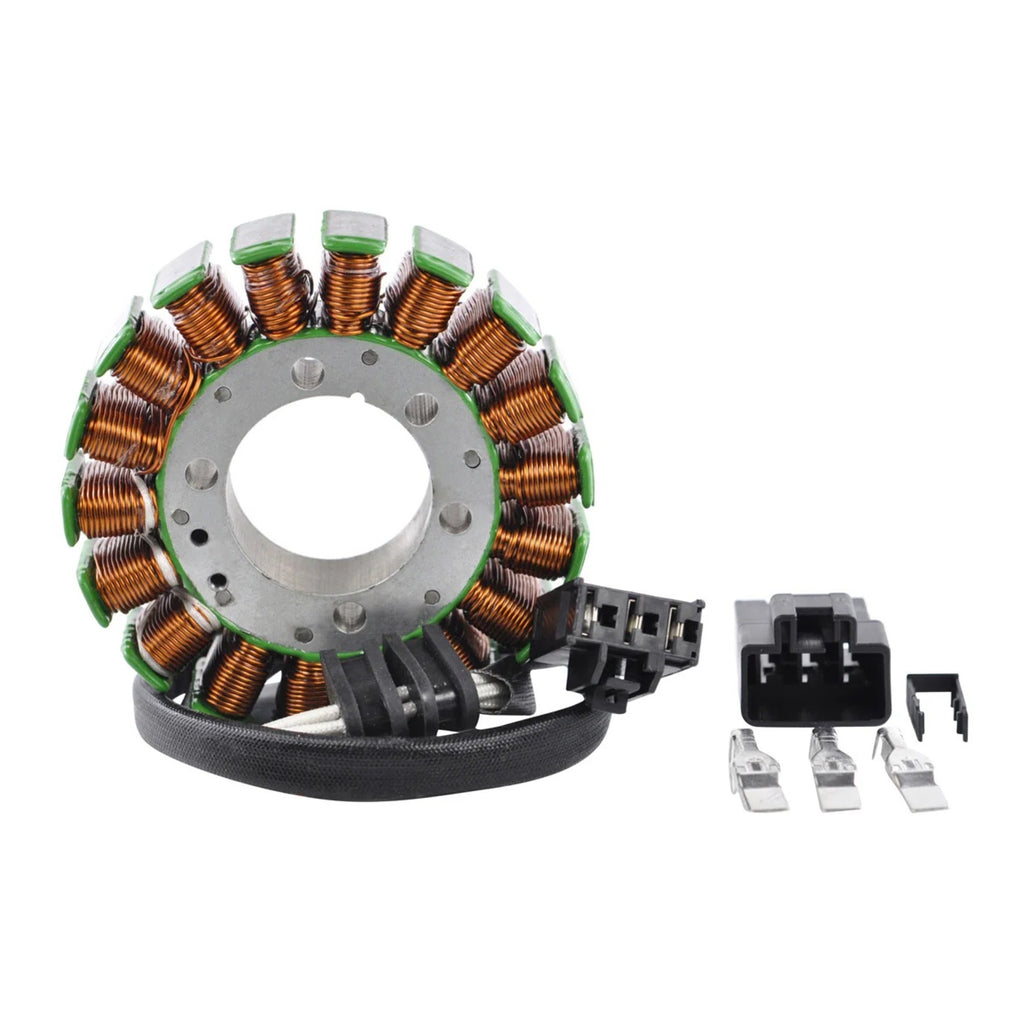

Plug-and-play unit direct fit and very easy to install.
Features:
- Highest grade lamination materials.
- Highest grade copper windings resistant to 200 degrees Celsius.

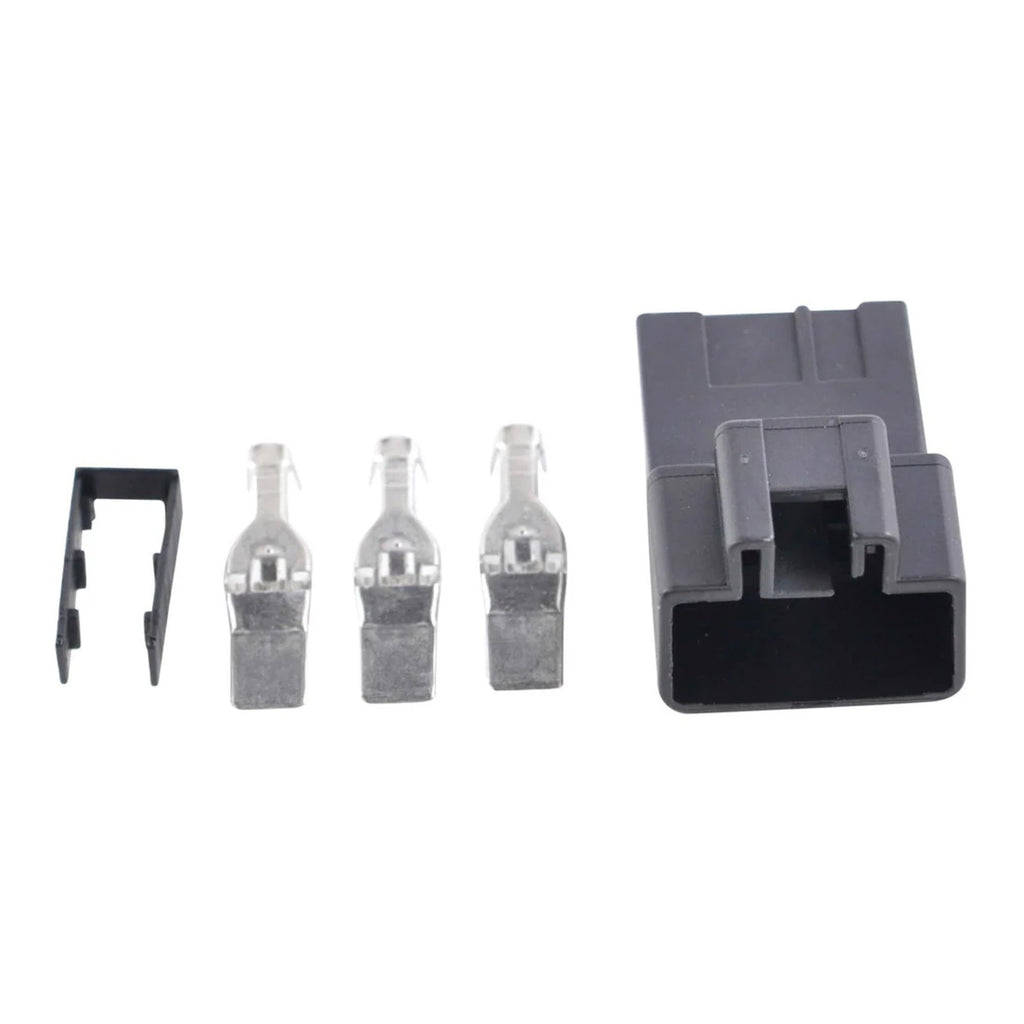

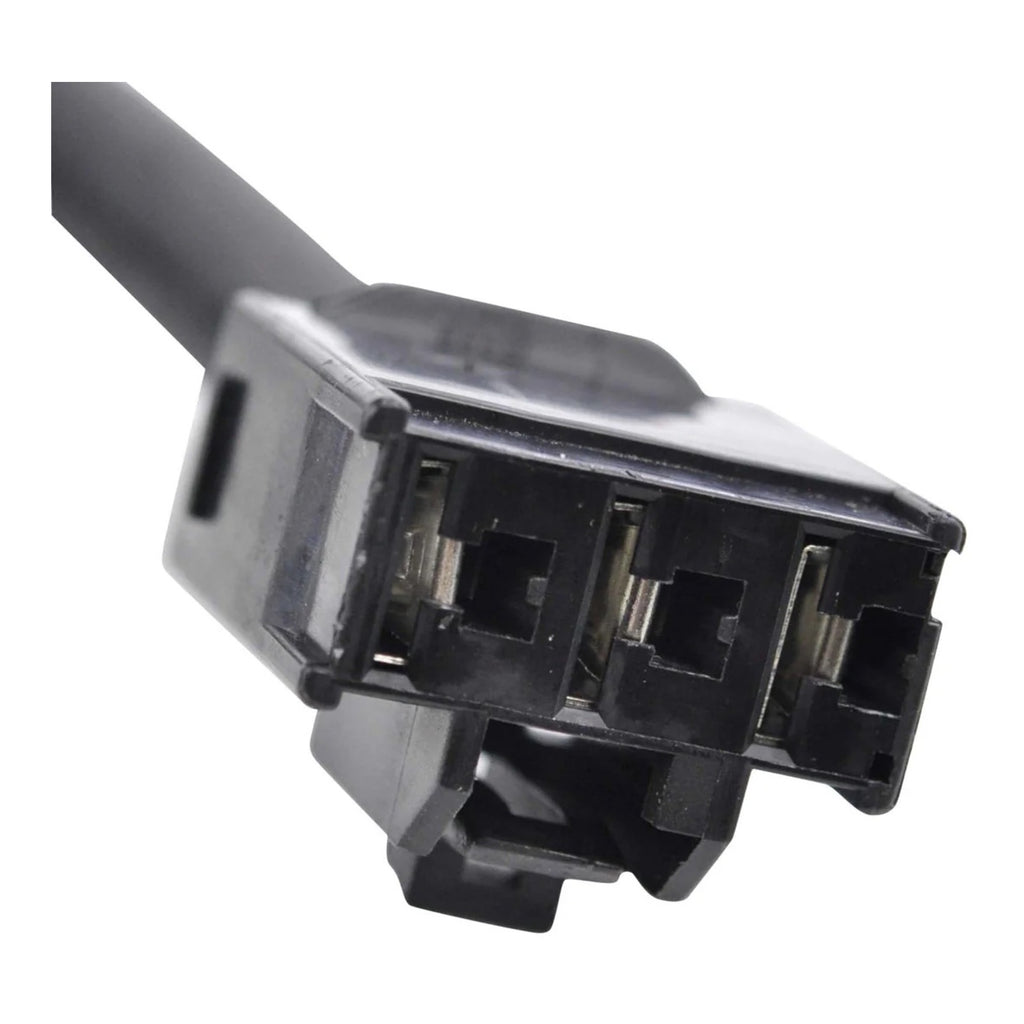

- Connector included.
- Rubber grommet included.
- All products shipped are tested.
Dimensions:
- Interio r diameter: 42 mm
- Exterior diameter: 108 mm
- Thickness : 26 mm
- Length of wires stator to grommet: 120 mm
- Length of wires grommet to plug: 500 mm
Other specifications:
- Number of wires: 3
- Number of plugs: 1
- Number of pins: 3
Wire-to-wire resistance:
- Alternator: White Between each white = 0.4 ohms+/-20%
- Alternator: White to Ground =?O.L. ON DISPLAY
