Description

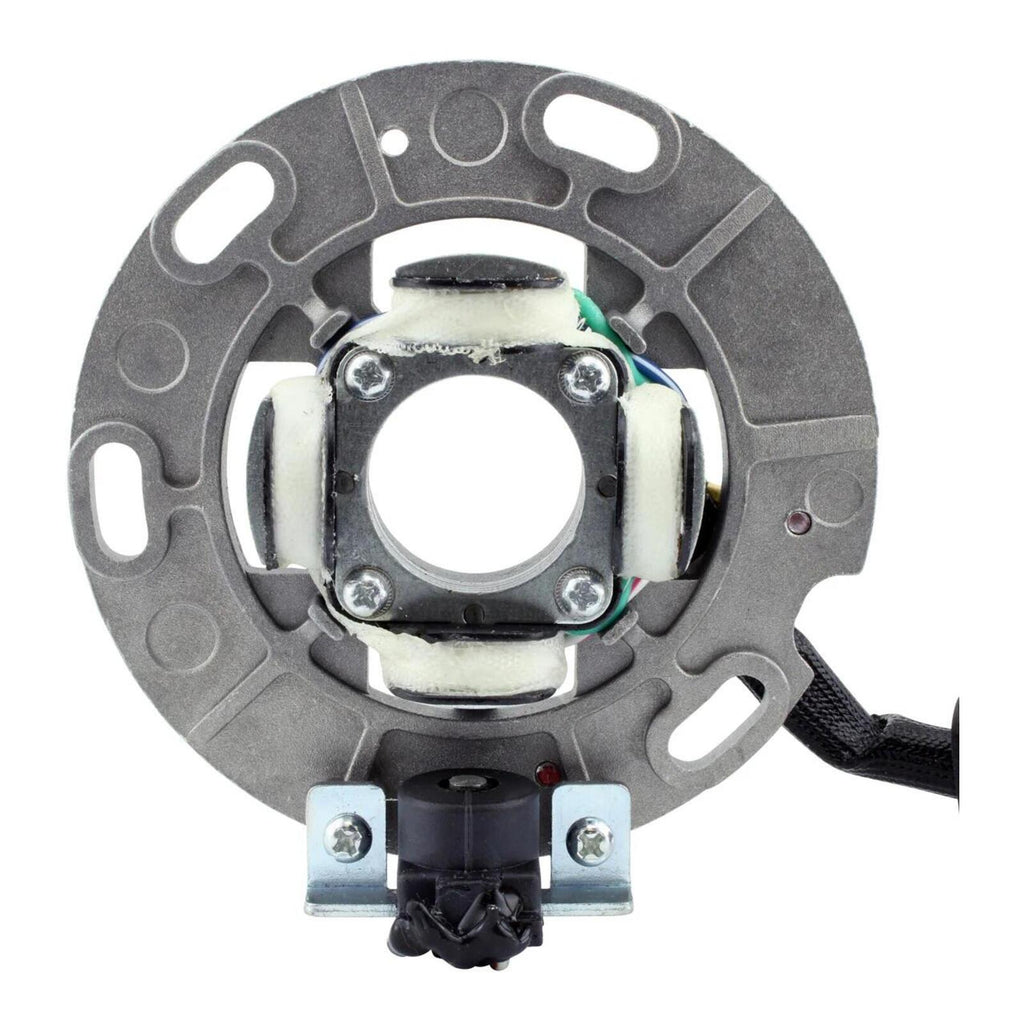

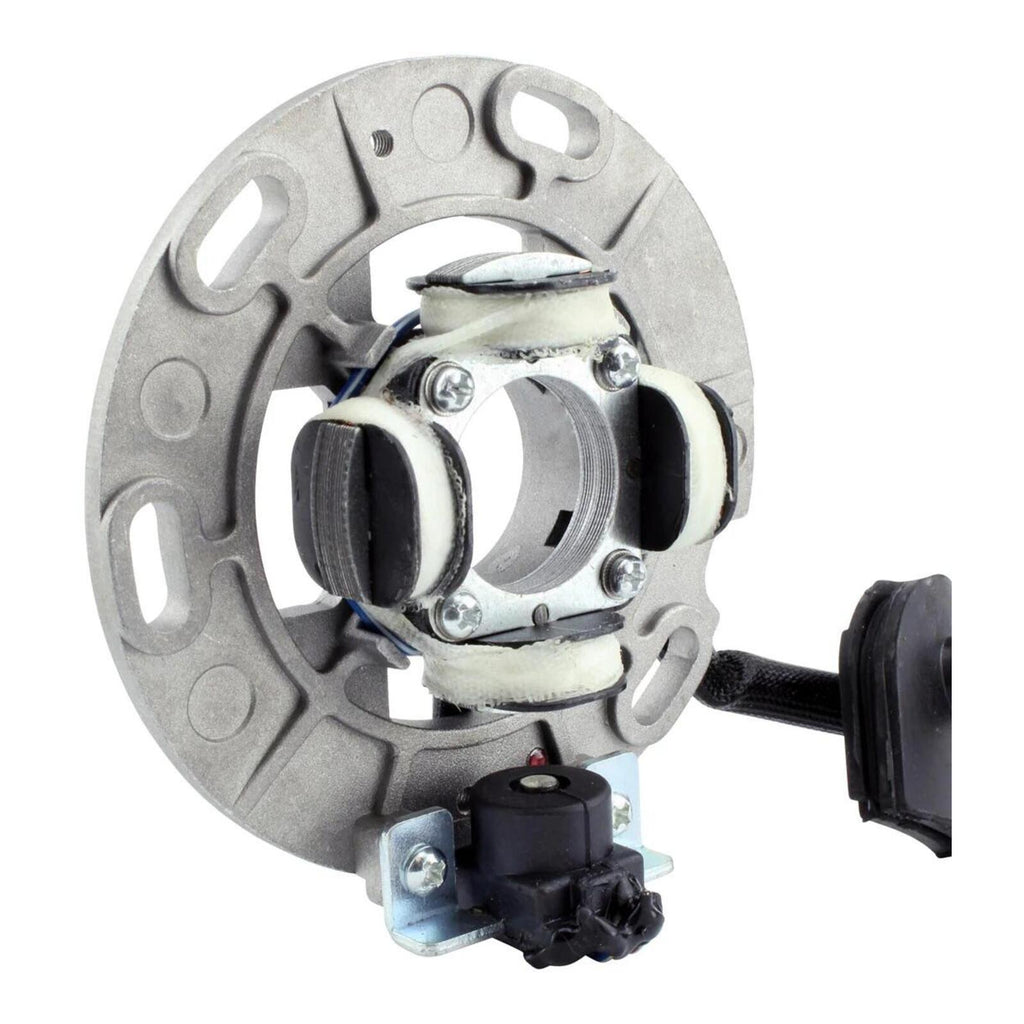

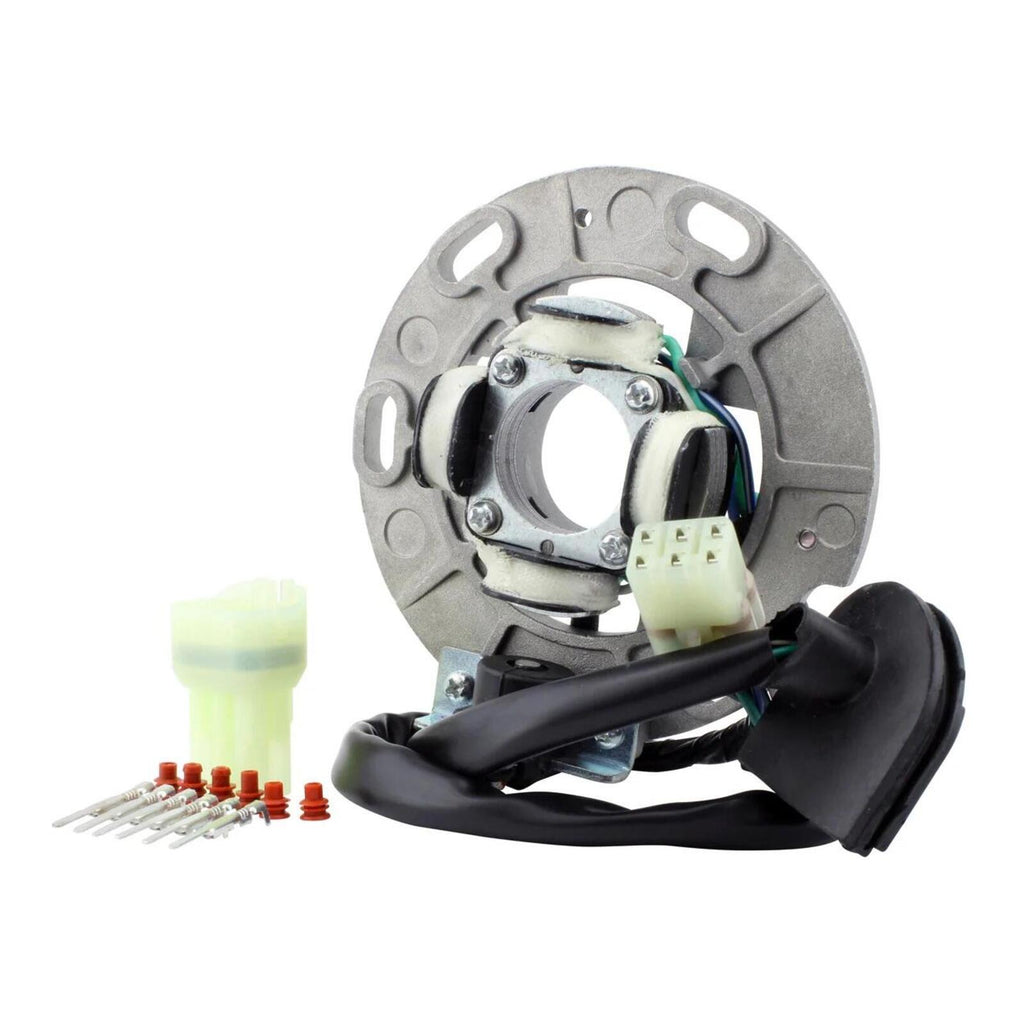

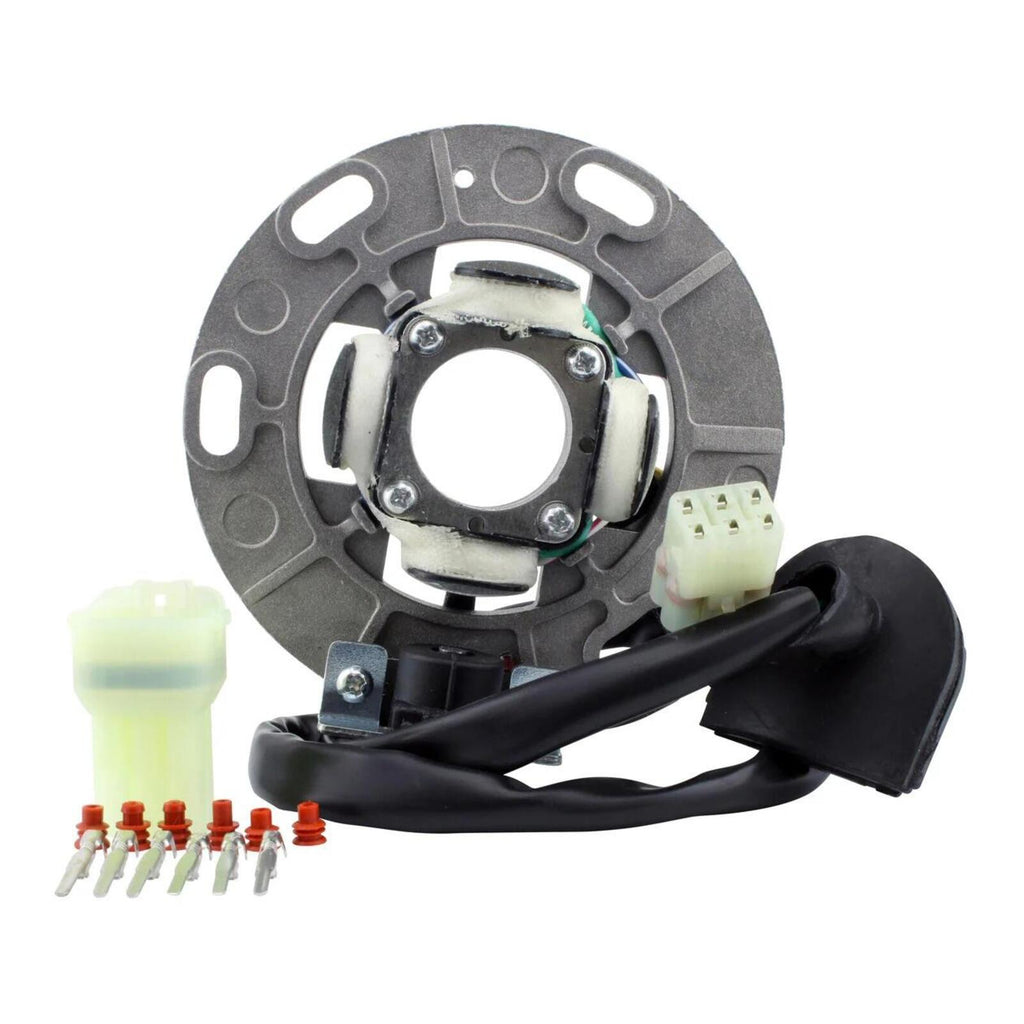

Brand new aftermarket stator. Direct replacement to your original unit.
Features:
- Direct replacement to your original unit.
- Plug-and-play direct fit easy installation.
- Highest grade of lamination materials.
- Highest grade of copper winding resistant to 200 degrees Celsius.
- Pick up pulsar coil included.

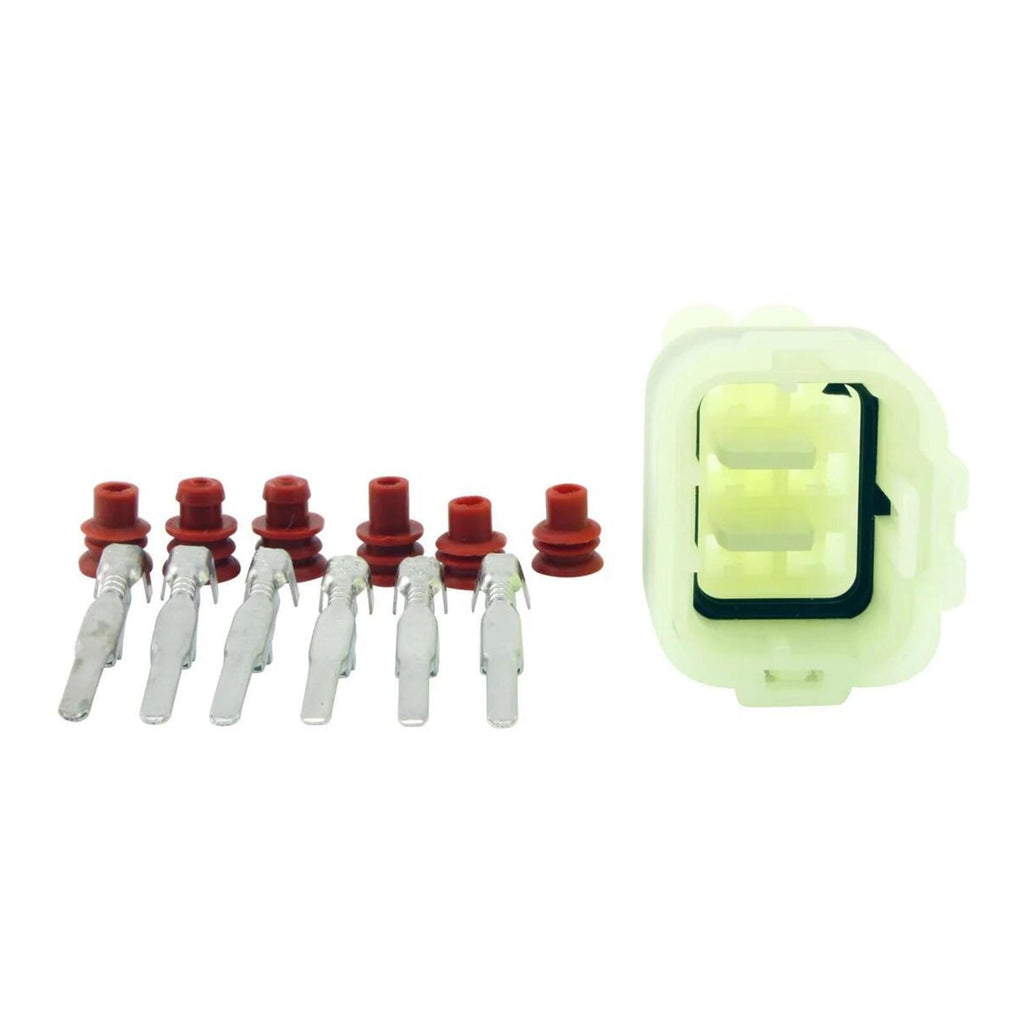

- Connectors included.
- Rubber grommet included.
- Back Plate included.
- All products shipped are tested.
Technical Data
Dimensions:
- Interior diameter: 28mm
- Exterior diameter: 59.30mm
- Thickness: 33mm
- Length of wires stator to grommet: 32mm
- Length of wires grommet to plug: 320mm
Other specifications :
- Number of wires: 6
- Number of plugs: 1
- Number of pins: 6
- Number of poles: 4
- Pickup: White/Blue to White/Red = 285 ohms +-20%
- Source #1 : Green/White to Green = 54 ohms +-20%
- Source #2 : Black/Red to Black = 875 ohms +-20%
