Description

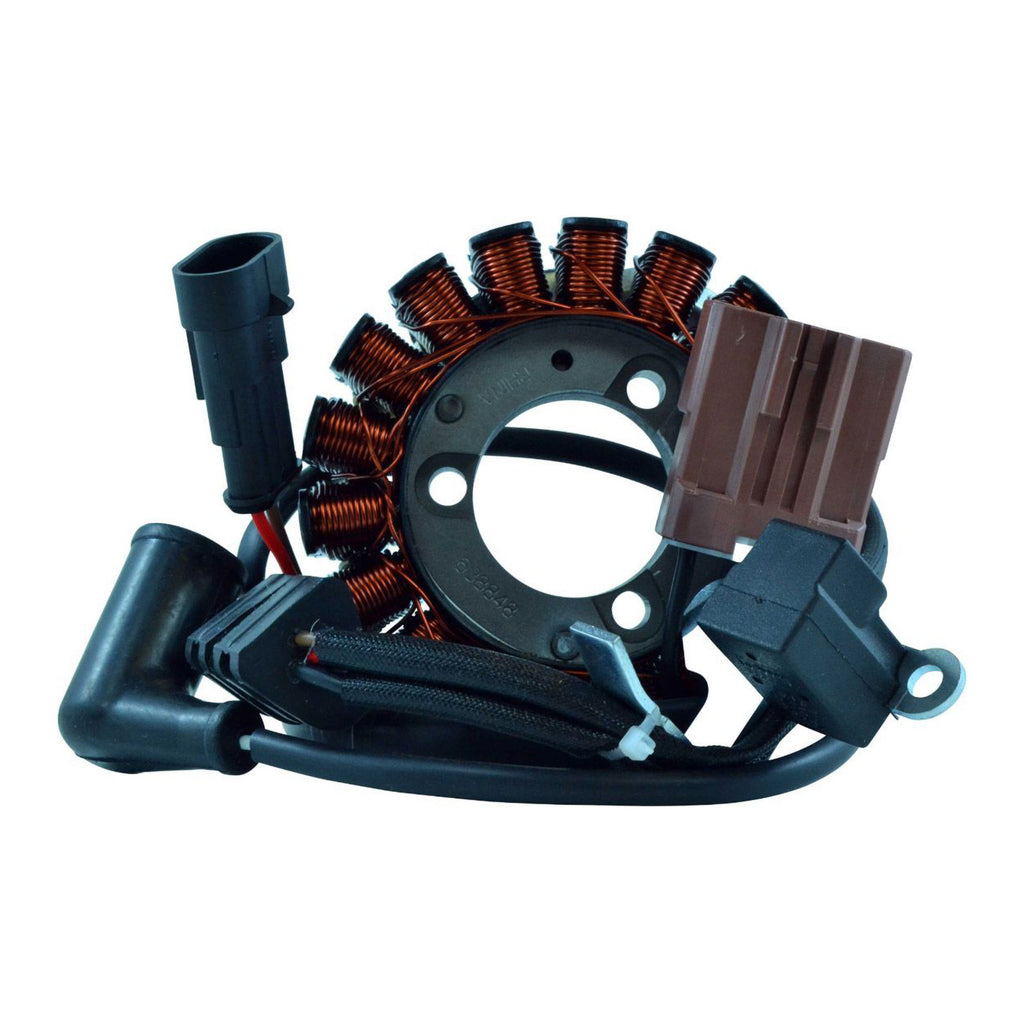

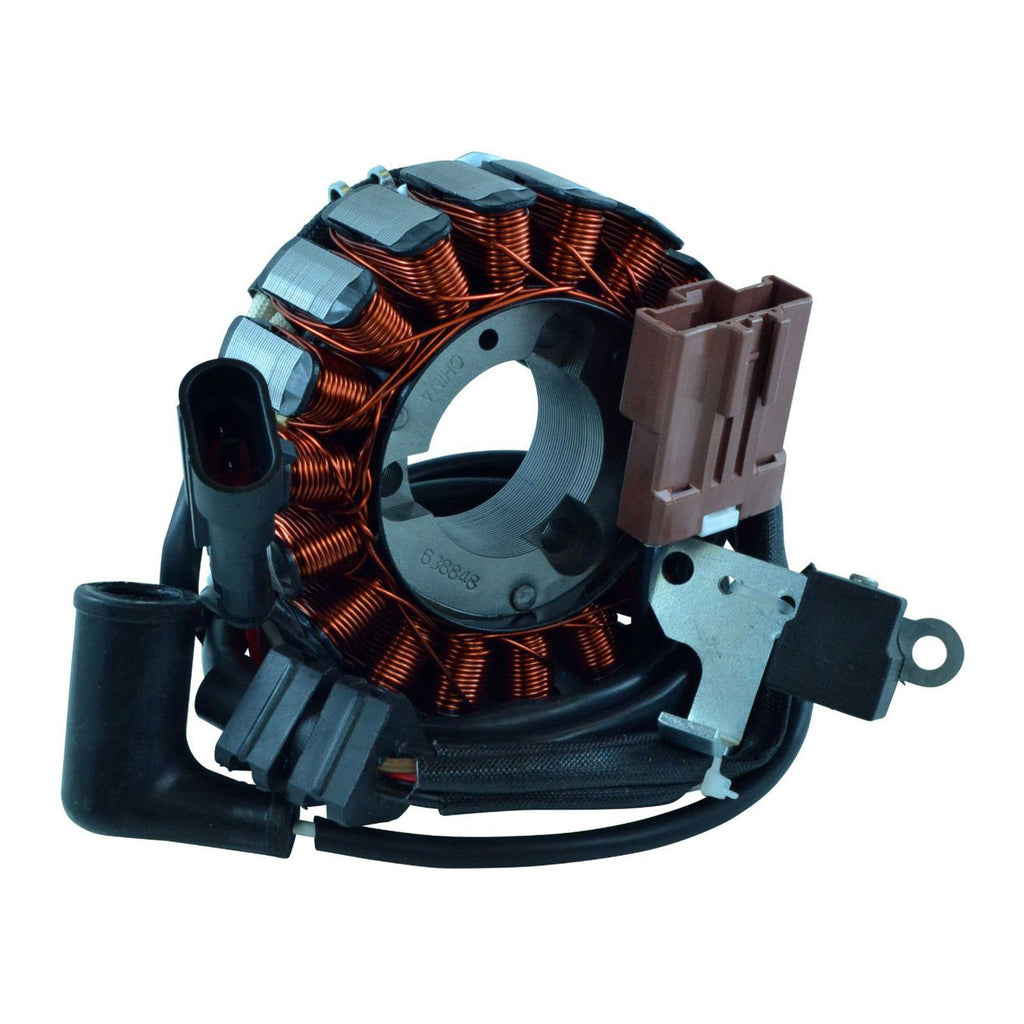

Brand new aftermarket generator statorDirect replacement to your original unitPlug-and-play direct fit easy installationHighest grade lamination materialsHighest grade copper windings resistant to 200 degrees Celsius.Pick-up pulsar coil includedConnector includedRubber grommet includedAll products shipped are testedDimensions:Interior diameter: 36 mmExterior diameter: 95 mmThickness: 32 mmLength of wires stator to grommet: 165 mmLength of wires grommet to plug: 585 mm / 780 mmLength of pickup coil's wire to grommet: 88 mmOther specifications:Number of wires: 6Number of plugs : 3Number of pins: 6Number of poles: 18Wire to wire resistance:Alternator: Yellow between each Yellow = 0.4 ohms +-20%Pickup: Green/White to Yellow/White = 125 ohms +-20%Source: Black/Red to Ground = 210 ohms +-20%
