Description

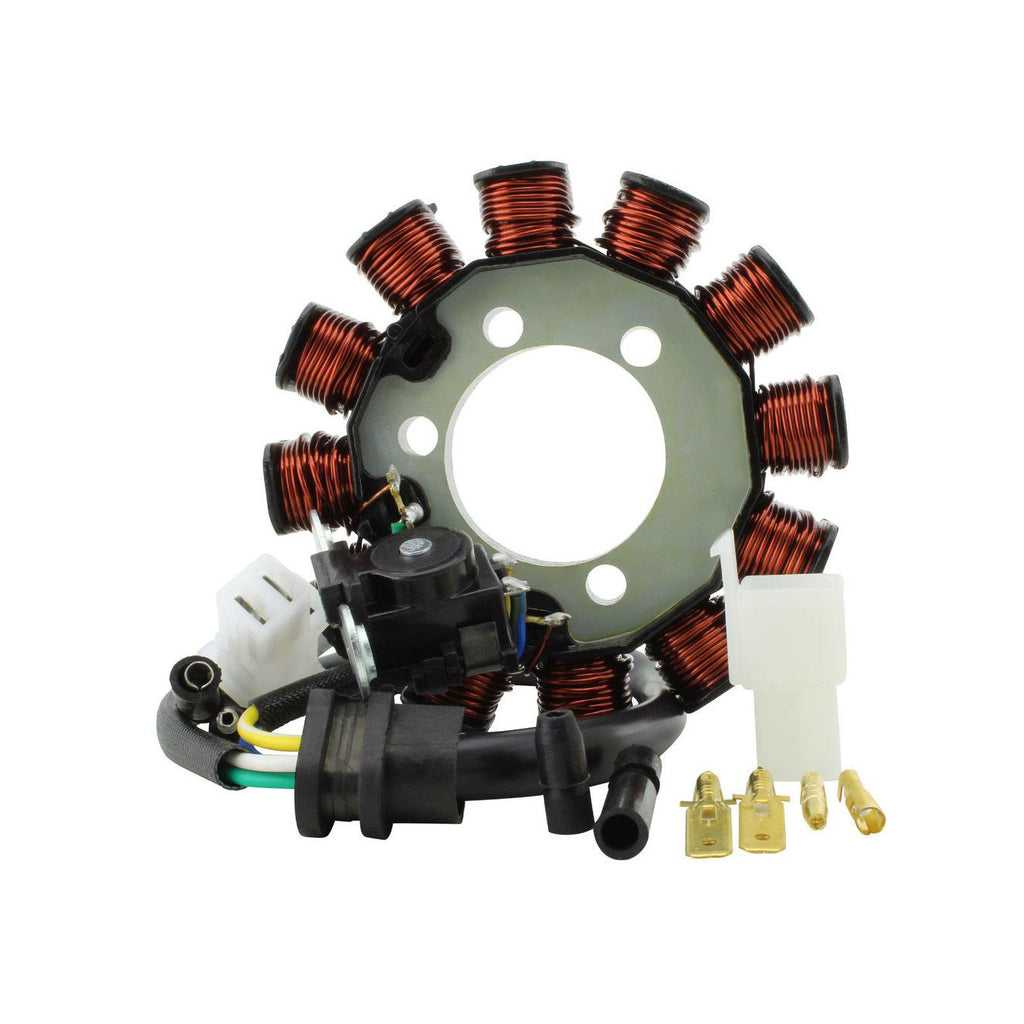

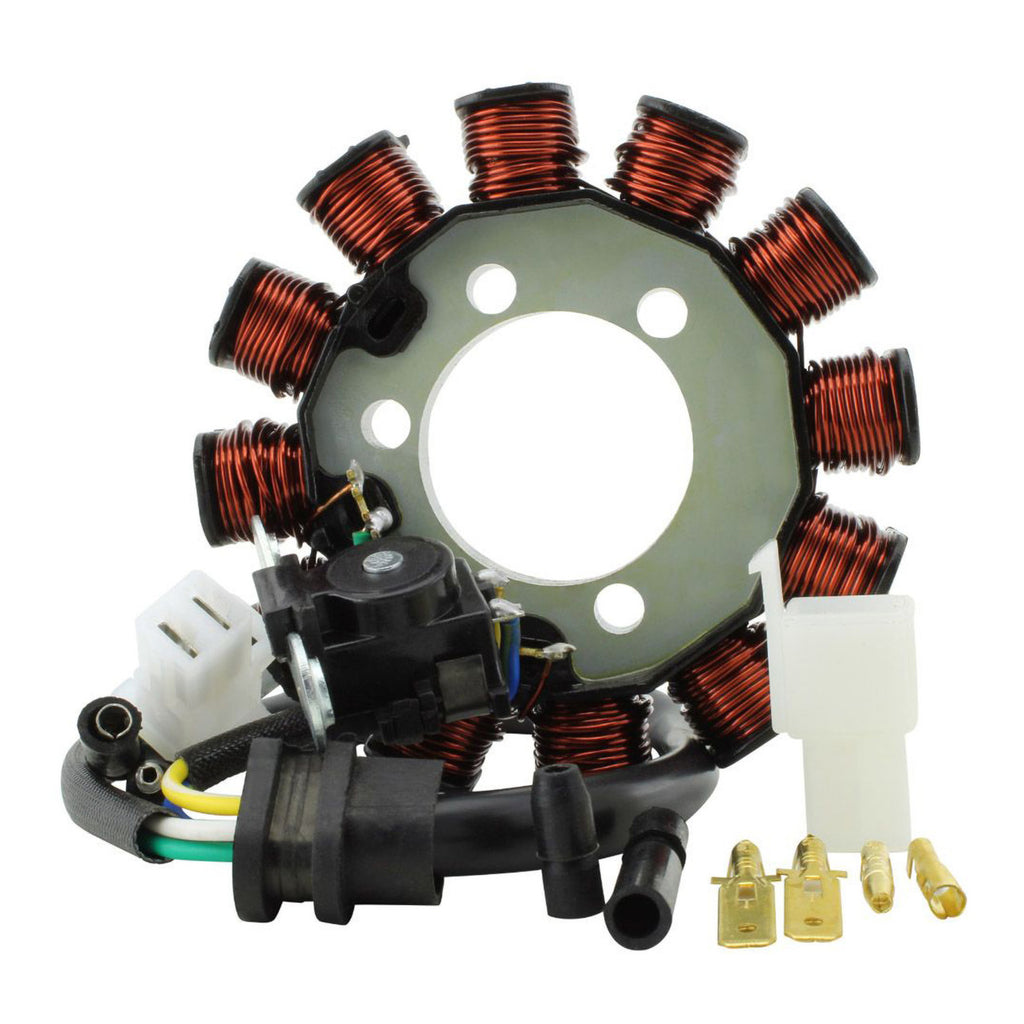

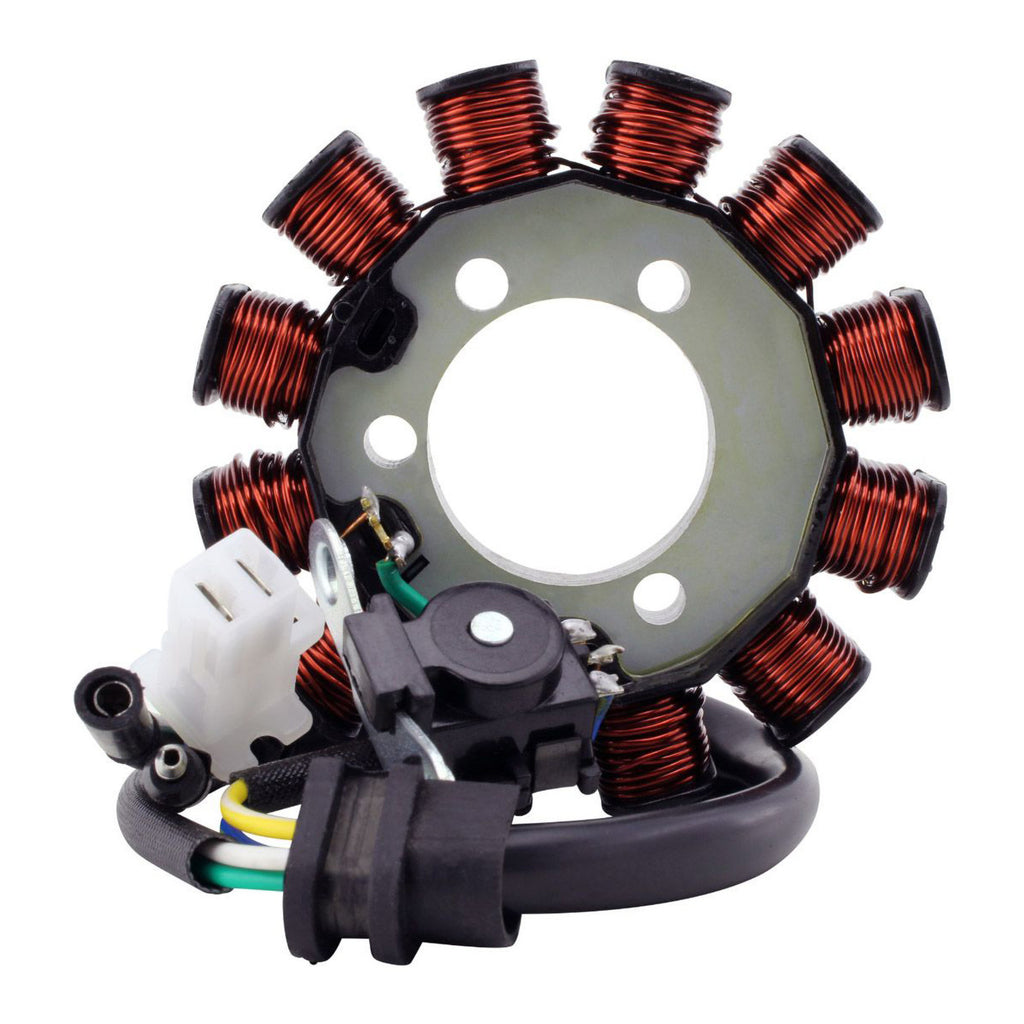

Brand new aftermarket StatorDirect replacement to your original unitPlug-and-play direct fit easy installationHighest grade of lamination materialsHighest grade of copper winding resistant to 200 degrees CelsiusPick up pulsar coil includedConnectors includedRubber grommet includedAll products shipped are testedDimensions:Interior diameter: 35mmExterior diameter: 93mmThickness: 9mmLength of wires stator to grommet: 120mmLength of wires grommet to plug: 230mmLength of pickup coil's wire to grommet: 30mmOther specifications:Number of wires: 3Number of plugs: 3Number of pins: 3Number of poles: 12Wire to wire resistance:Alternator: Green to White = 1.2 ohms +-20%Pickup: Green to Blue/Yellow = 263 ohms +-20%Source: Green = Ground Please Note:All electrical components must be fitted by a qualified technician.Before fitting electrical components ensure the root cause of the original failure has been addressed.The absence of either of points 1 or 2 above will void any warranty.
