Description

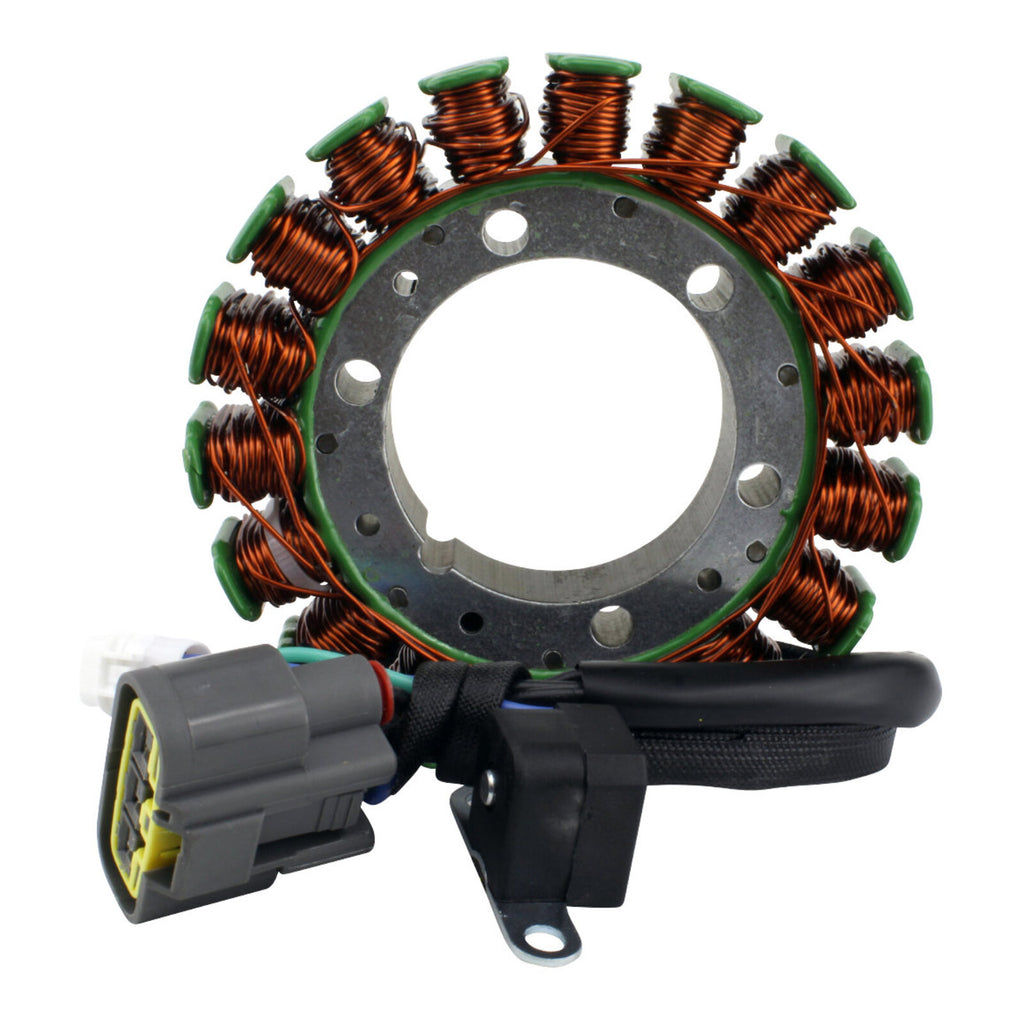

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over25 product families, rest assured that you will find the part you need. Direct replacement to your original unit Plug-and-play, direct fit, easy installation Highest grade of lamination materials Highest grade of copper winding, resistant to 200 degrees Celsius Pick up pulsar coil included Connectors included Rubber grommet included Back Plate included All products shipped are tested We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause of repetitive electrical issues.Dimensions: Interior diameter: 54mm Exterior diameter: 115mm Thickness: 21mm Length of wires stator to grommet: 175mm Length of wires grommet to plug: 310mm Length of pickup coil's wire to grommet: 120mm Other specifications: Number of wires: 5 Number of plugs: 2 Number of pins: 5 Number of poles: 18 Wire to wire resistance: Alternator: Black to Black = 0.5 ohms +-20% Pickup: White to Blue = 209 ohms +-20%
