RMSTATOR Generator Stator Yam YXZ1000R 19-21 (RMS010-107076)
RMSTATOR Generator Stator Yam YXZ1000R 19-21 (RMS010-107076)
Roll over image to zoom in Click on image to zoom
RMSTATOR Generator Stator Yam YXZ1000R 19-21 (RMS010-107076)
RMSTATOR Generator Stator Yam YXZ1000R 19-21 (RMS010-107076)

RMSTATOR Generator Stator Yam YXZ1000R 19-21 (RMS010-107076)

RM Stator RMS010107076
Price:
$549.49
Stock:
In Stock Online Ready to be shipped from our NZ Warehouse For store pickup please Contact Us.
[storeify-formbuilder-10443]

Description

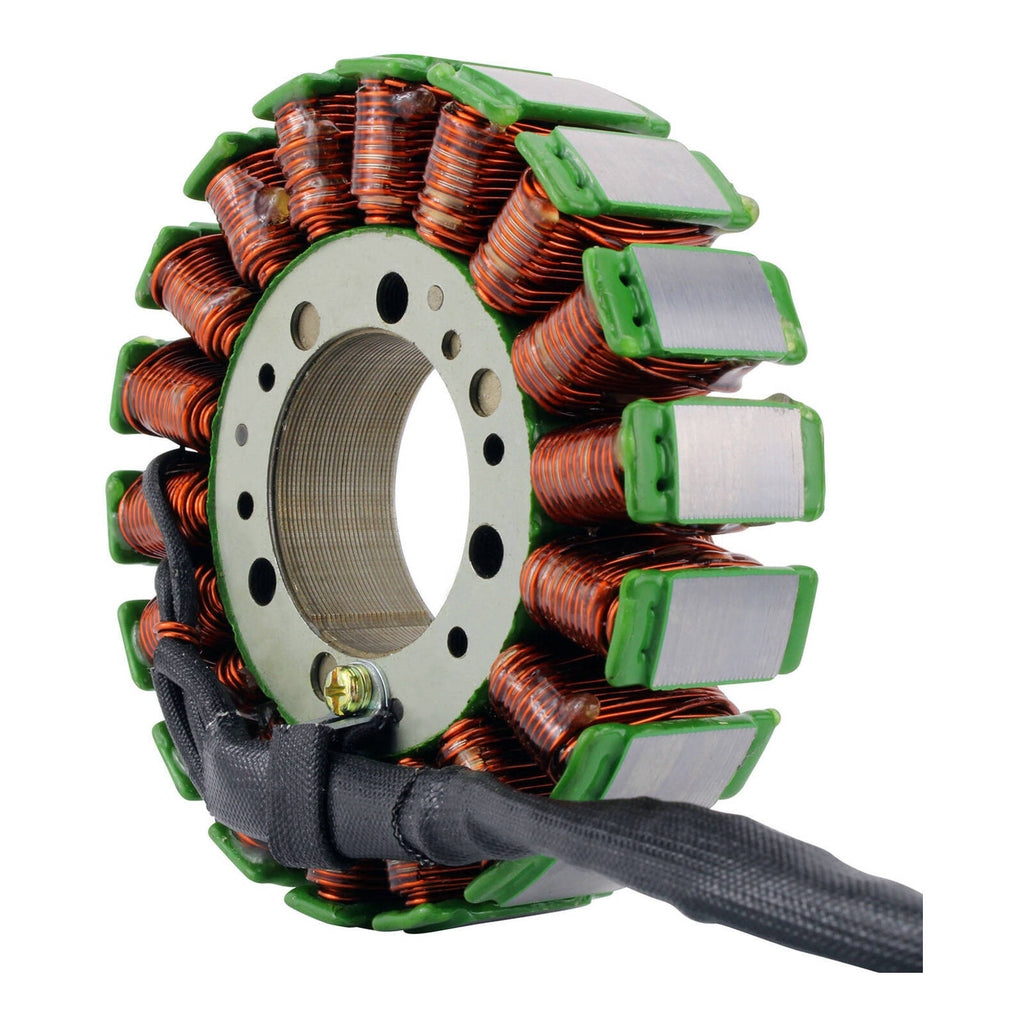

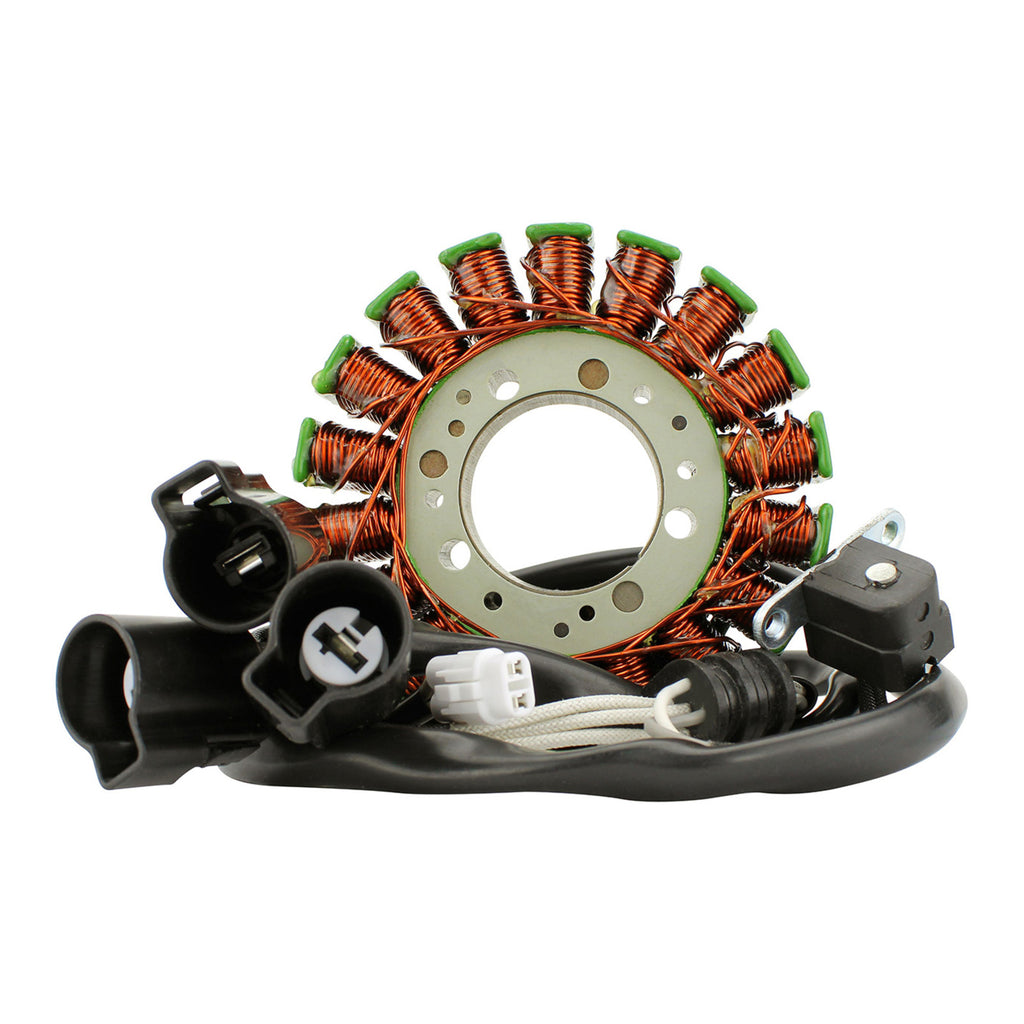

Brand new aftermarket generator statorDirect replacement to your original unitPlug-and-play direct fit easy installationHighest grade lamination materialsHighest grade copper windings resistant to 200 degrees Celsius.Pick-up pulsar coil includedConnector includedRubber grommet includedAll products shipped are testedDimensions:Interior diameter: 42 mmExterior diameter: 115 mmThickness: 23 mmLength of wires stator to grommet: 200 mmLength of wires grommet to plug: 1020 mmLength of pickup coil's wire to grommet: 110 mmOther specifications:Number of wires: 5Number of plugs: 4Number of holes: 5Number of poles: 18Wire to wire resistance:Alternator: White to White = 0.5 ohms +-20%Pickup: Black to Grey = 512 ohms +-20%

Yamaha YXZ1000R 2019-2021 YXZ1000R SS SE 2019-2022
