RMSTATOR Generator Stator Kaw KLX110 10-21 (RMS010-107078)
RMSTATOR Generator Stator Kaw KLX110 10-21 (RMS010-107078)
Roll over image to zoom in Click on image to zoom
RMSTATOR Generator Stator Kaw KLX110 10-21 (RMS010-107078)
RMSTATOR Generator Stator Kaw KLX110 10-21 (RMS010-107078)

RMSTATOR Generator Stator Kaw KLX110 10-21 (RMS010-107078)

RM Stator RMS010107078
Price:
$379.49
Stock:
In Stock Ready to be shipped from our NZ Warehouse For store pickup please Contact Us.
[storeify-formbuilder-10443]

Description

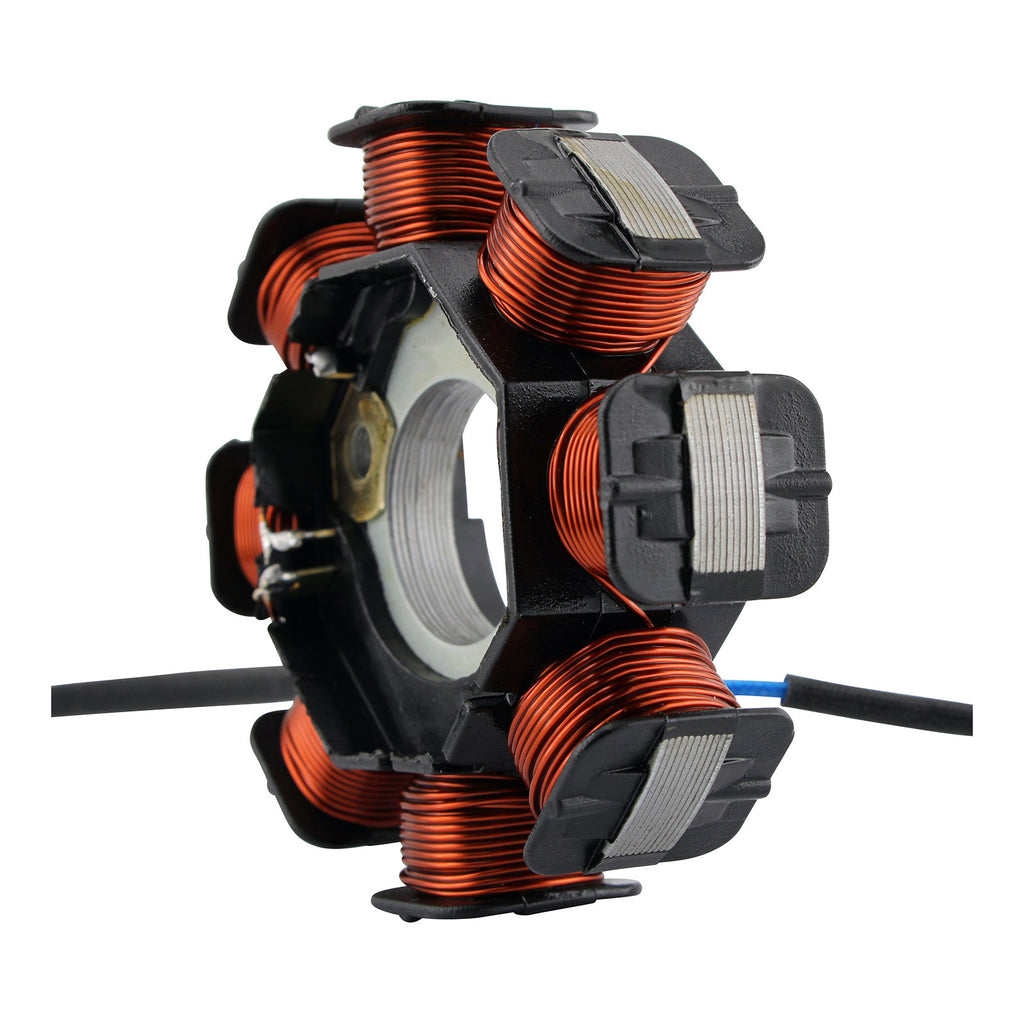

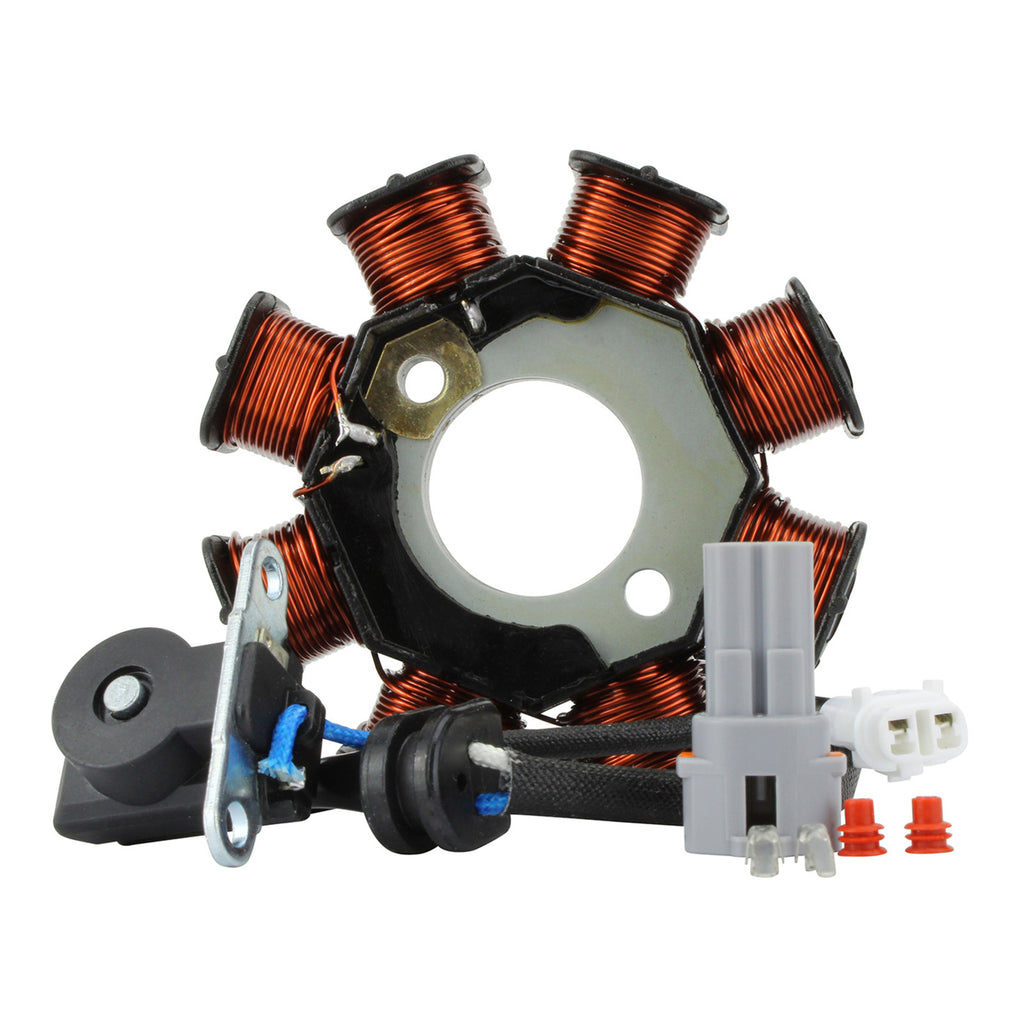

Brand new aftermarket generator statorDirect replacement to your original unitPlug-and-play direct fit easy installationHighest grade lamination materialsHighest grade copper windings resistant to 200 degrees Celsius.Pick-up pulsar coil includedConnector includedRubber grommet includedAll products shipped are testedDimensions:Interior diameter: 29 mmExterior diameter: 88 mmThickness: 10 mmLength of wires stator to grommet: 150 mmLength of wires grommet to plug: 150 mmLength of pickup coil's wire to grommet: 120 mmOther specifications:Number of wires: 2Number of plugs: 1Number of holes: 2Number of poles: 8Wire to wire resistance:Alternator: White to Ground = 1.2 ohms +-20%Pickup: Blue/yellow to Ground = 118 ohms +-20%

Kawasaki KLX110 2010-2020 KLX110L 2010-2020
