Description

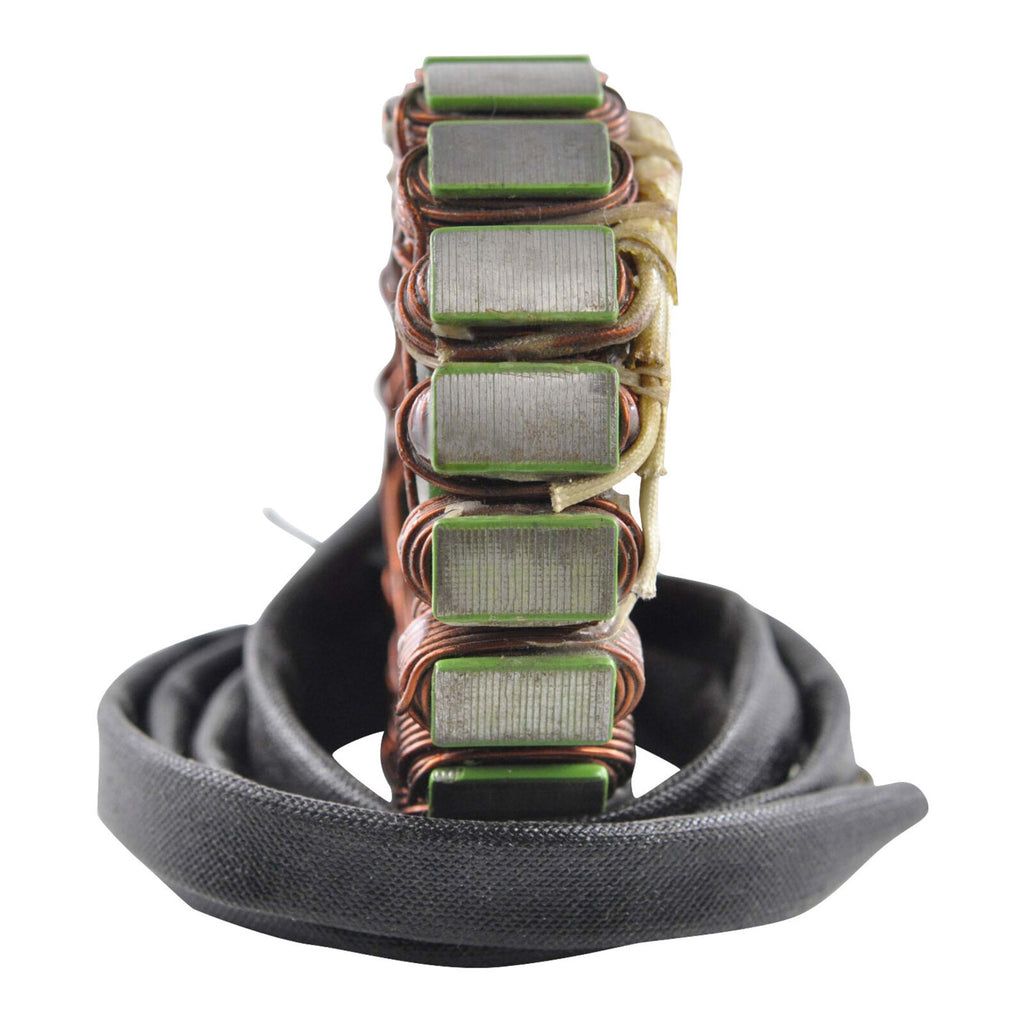

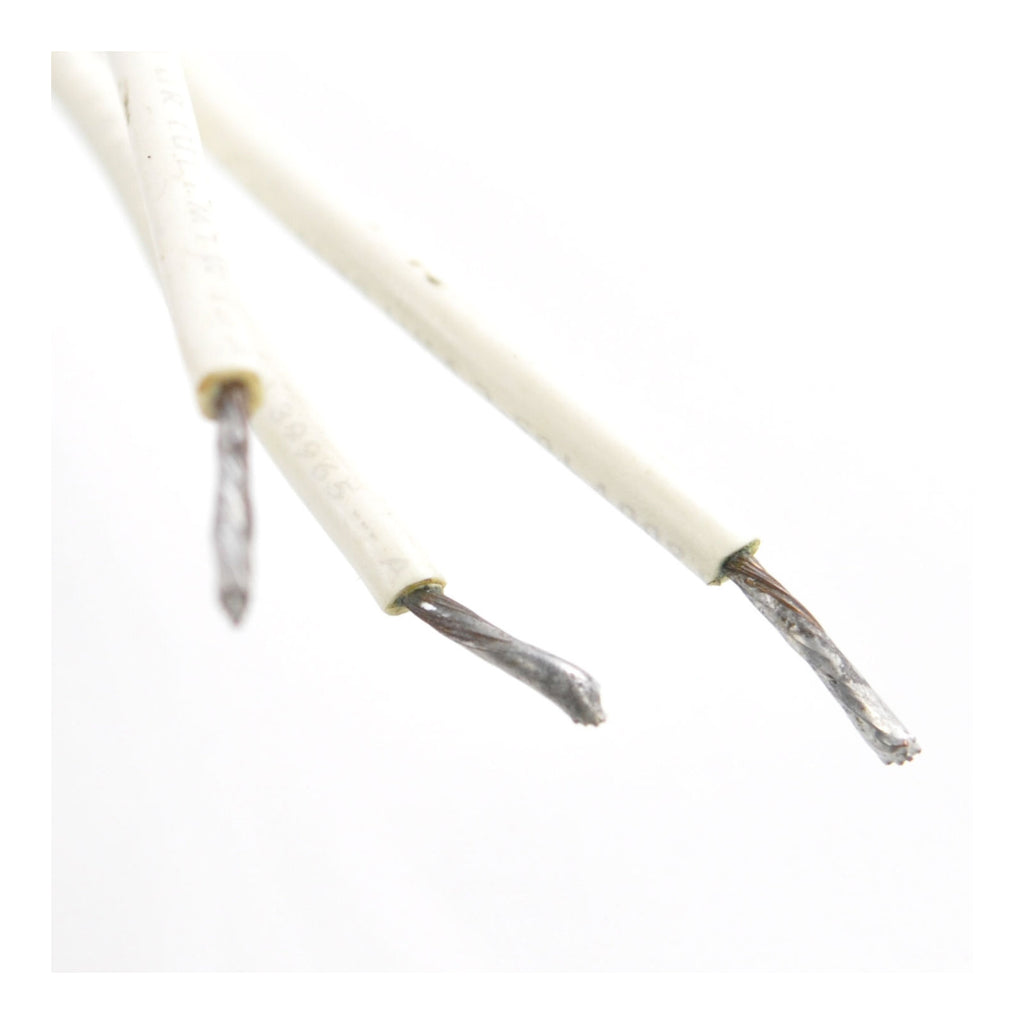

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over25 product families, rest assured that you will find the part you need. You must re-install your original connector and grommet (see picture). Once your connector and grommet is re-installed, our part becomes a plug-and-play unit, direct fit, and very easy to install. Higher grade of electric components. Highest grade copper windings, resistant to 200 degrees Celsius. All products shipped are tested We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.Dimensions: Interior Diameter: 28mm Exterior Diamter: 102mm Thickness: 20mm Wires length stator to terminals: 700mm Other specifications: Number of wires: 3 Number of plugs: 0 Number of terminals: 3 Wire to wire resistance: Alternator: White Between each White = 0.4 ohms+/-20% Alternator: White to Ground = O.L. ON DISPLAY
