Description
RMSTATOR is specialized in designing and manufacturing innovativeelectrical and electronic components for Powersports vehicles likemotorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelentingquality control, we ensure that each component meets or exceeds the OEMspecs. With over25 product families, rest assured that you will findthe part you need.
- Direct replacement to your originalunit
- Plug-and-play, direct fit, easyinstallation
- Highest grade of laminationmaterials
- Highest grade of copper winding, resistant to 200degrees Celsius
- Connector included
Batterycondition is extremely important. No stator can work correctly with a bador weak battery.Always fully charge your battery before performingany charging system tests or replacing parts.If there is any doubt,have the battery load tested orreplaced.

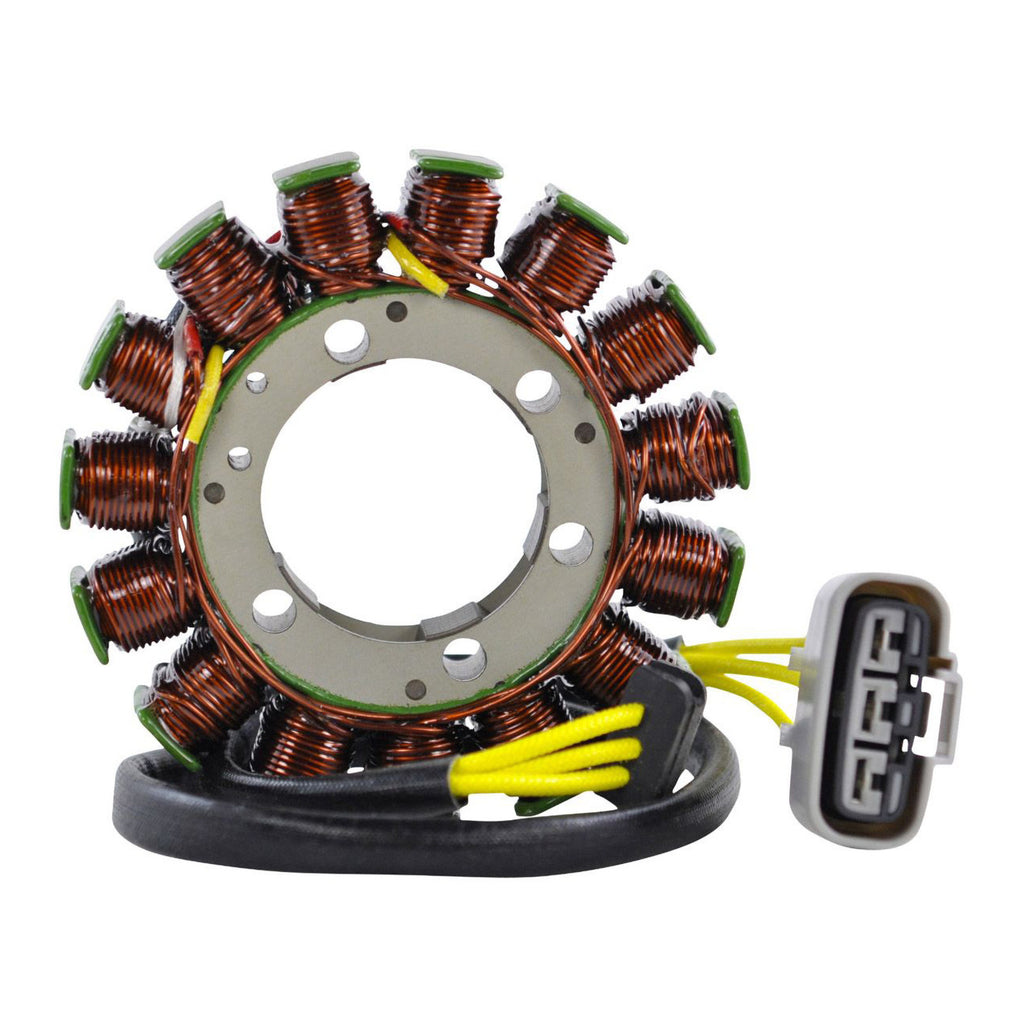

Dimensions:
- Interiordiameter: 41mm
- Exterior diameter: 106mm
- Thickness:14mm
- Length of wires stator to grommet: 100mm
- Length ofwires grommet to plug: 400mm
OtherSpecifications:

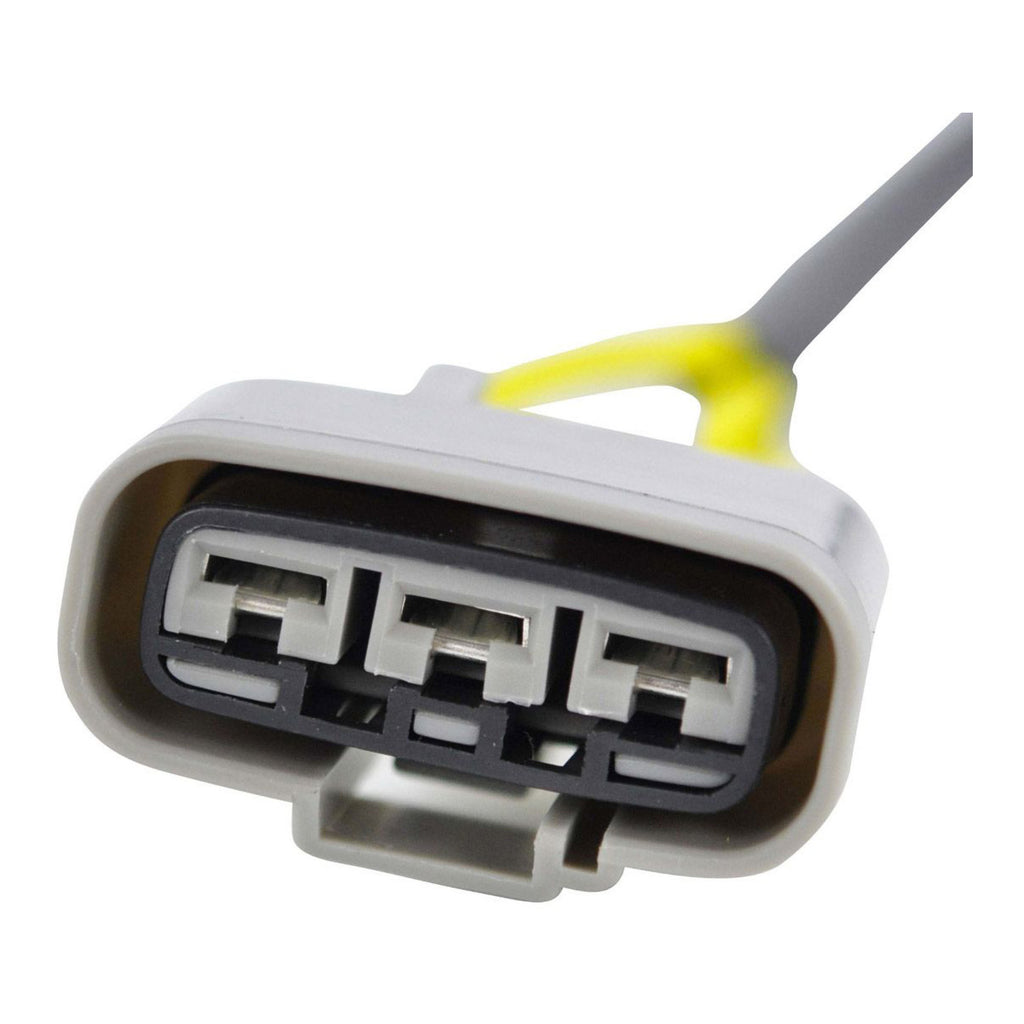

- Number of wires: 3
- Numberof plugs: 1
- Number of pins: 3
Please Note:
- All electrical components mustbe fitted by a qualified technician.
- Before fitting electricalcomponents ensure the root cause of the original failure has beenaddressed.
- The absence of either of points 1 or 2 above, will voidany warranty.
