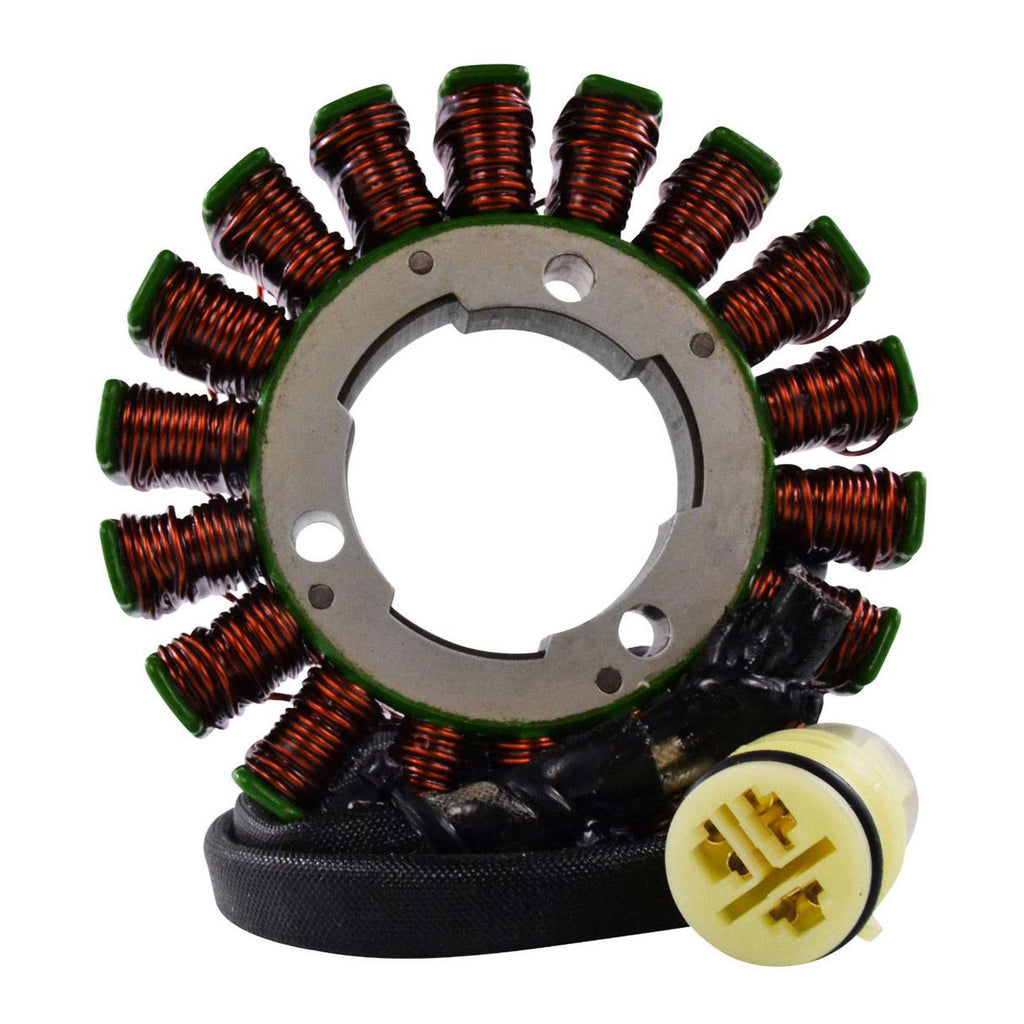

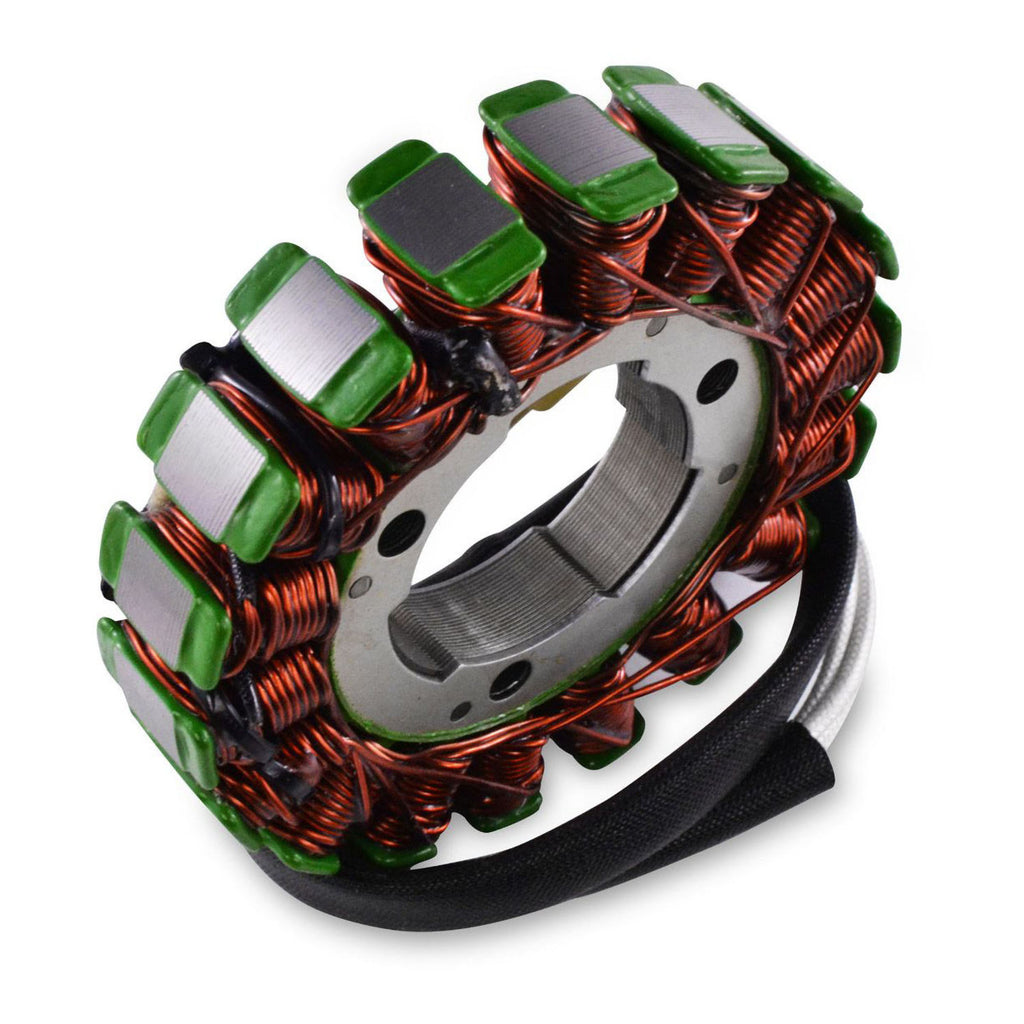

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over25 product families, rest assured that you will find the part you need. Direct replacement to your original unit Plug-and-play, direct fit, easy installation Highest grade of lamination materials Highest grade of copper winding, resistant to 200 degrees Celsius Connector included Battery condition is extremely important. No stator can work correctly with a bad or weak battery.Always fully charge your battery before performing any charging system tests or replacing parts.If there is any doubt, have the battery load tested or replaced.Dimensions: Interior diameter: 41mm Exterior diameter: 104mm Thickness: 14mm Length of wires stator to grommet: 75mm Length of wires grommet to plug: 60mm Other specifications: Number of wires: 3 Number of plugs: 1 Number of pins: 3 Wire to wire resistance:Alternator: Between each White = 1.1 ohms +-20%
Fits: Kawasaki JT1200 STX-12F 2003 JT1500 Ultra 250X 2007-2008 JT1500 Ultra 260LX 2009-2010 JT1500 Ultra 260X 2009-2010 JT1500 Ultra 300LX 2011-2013 JT1500 Ultra 300X 2011-2013 Ultra 310LX 2011-2020 Ultra 310R 2014-2019 Ultra 310X 2011-2019
