Description

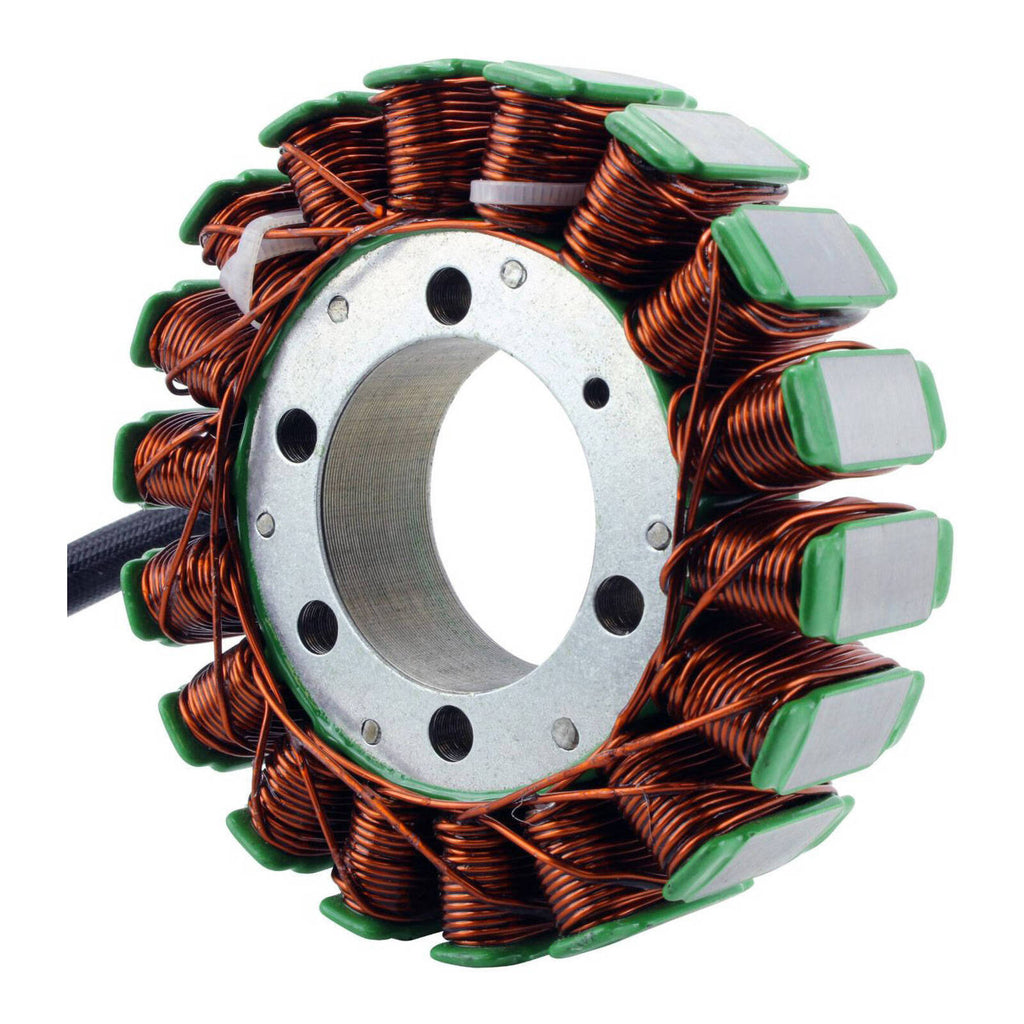

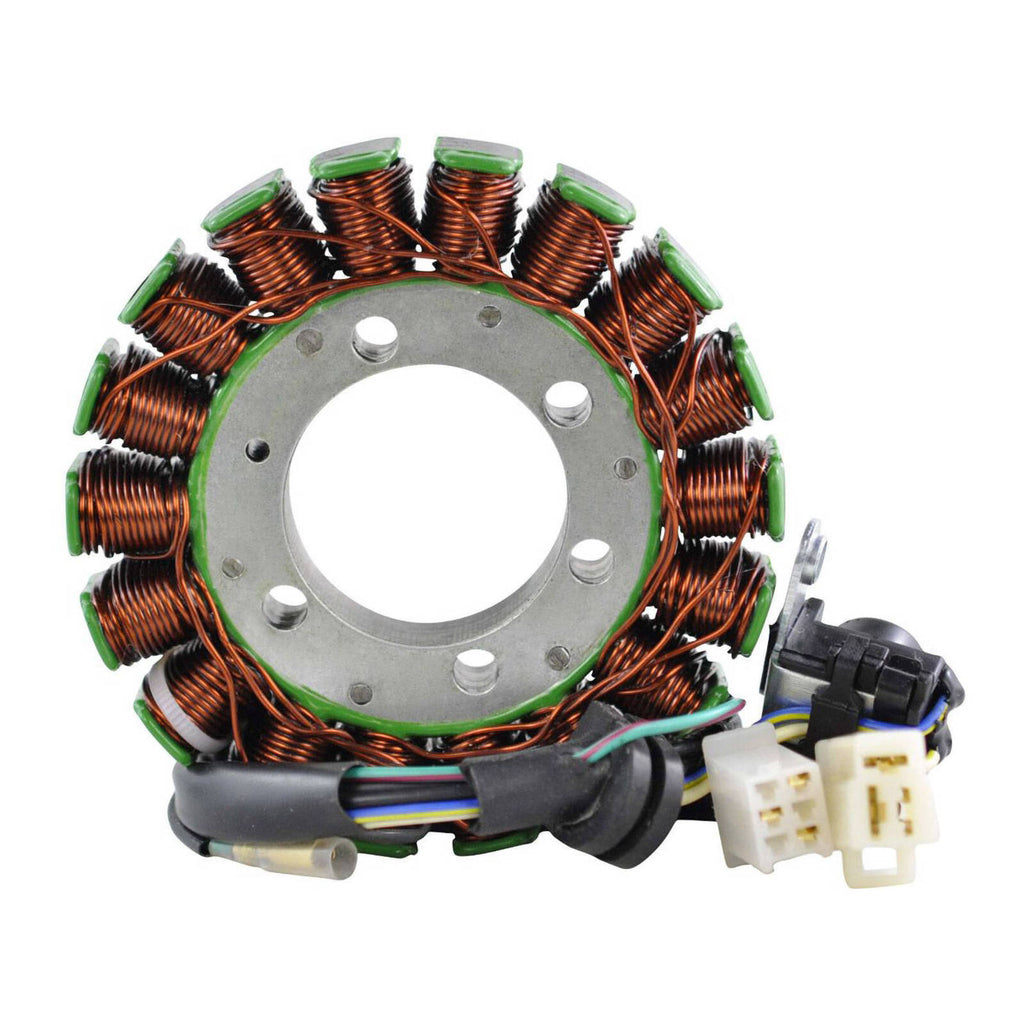

Brand new aftermarket stator
- Directreplacement to your original unit
- Plug-and-play, direct fit, easyinstallation.
- Highest grade lamination materials
- Highestgrade copper windings, resistant to 200 degrees Celsius.

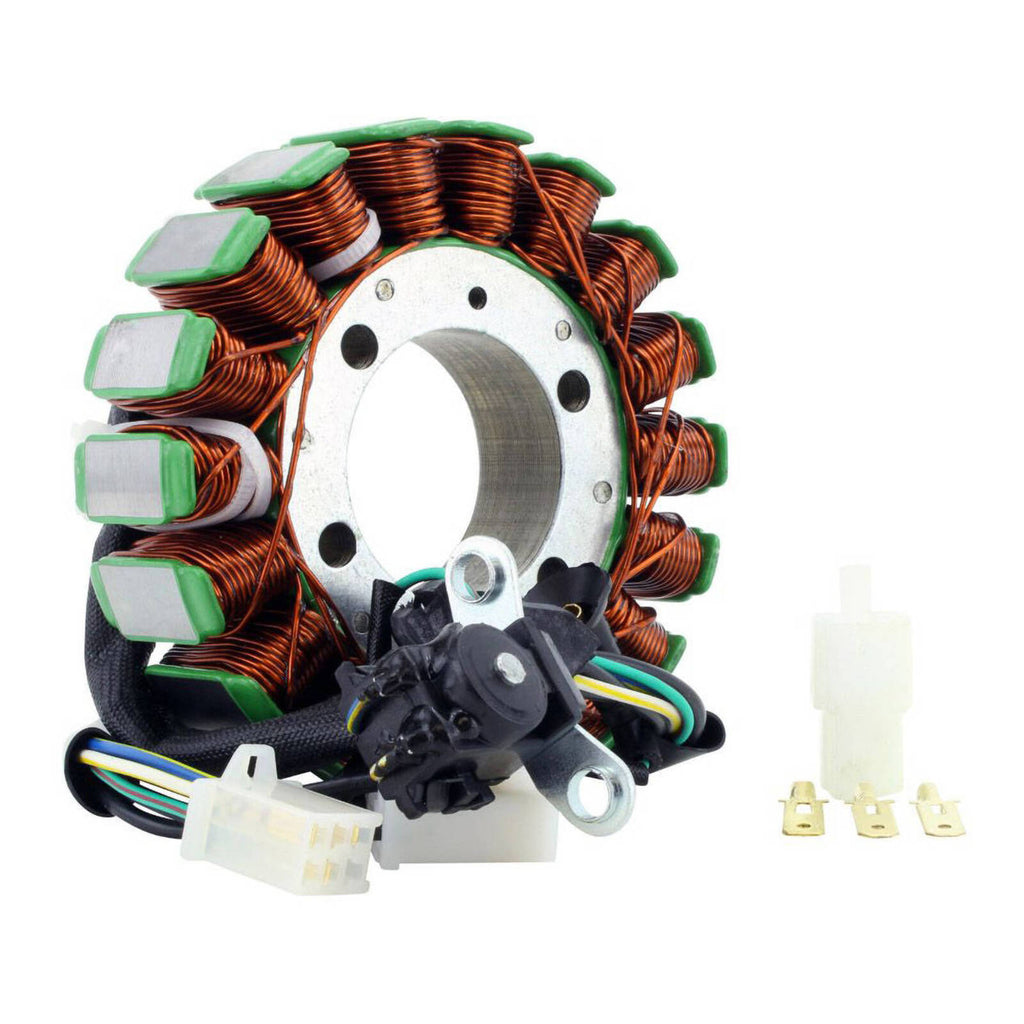

- Pick uppulsar coil included
- Connector included
- Rubber grommetincluded
- All products shipped aretested
Dimensions:
- Interiordiameter: 42mm
- Exterior diameter: 107mm
- Thickness:22mm
- Length of wires stator to grommet: 60mm
- Length ofwires grommet to plug: 180mm
- Length of pickup coil's wire togrommet: 20mm
Otherspecifications:
- Number of wires: 6
- Number ofplugs: 3
- Number of pins: 10
Wire to wireresistance:
- Alternator: Black to Black = 0.6 ohms+/-20%
- Pickup: White/Yellow to Blue/Yellow = 232 ohms+/-20%
Battery condition is extremely important. No stator canwork correctly with a bad or weak battery.Always fully chargeyour battery before performing any charging system tests or replacingparts.If there is any doubt, have the battery load tested orreplaced.
Please Note:
- All electrical components mustbe fitted by a qualified technician.
- Before fitting electricalcomponents ensure the root cause of the original failure has beenaddressed.
- The absence of either of points 1 or 2 above, will voidany warranty.
