Description
This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.
Features:
- Direct replacement to your original unit.
- Plug-and-play direct fit easy installation.
- No assembly required.
- Higher grade of electric components.

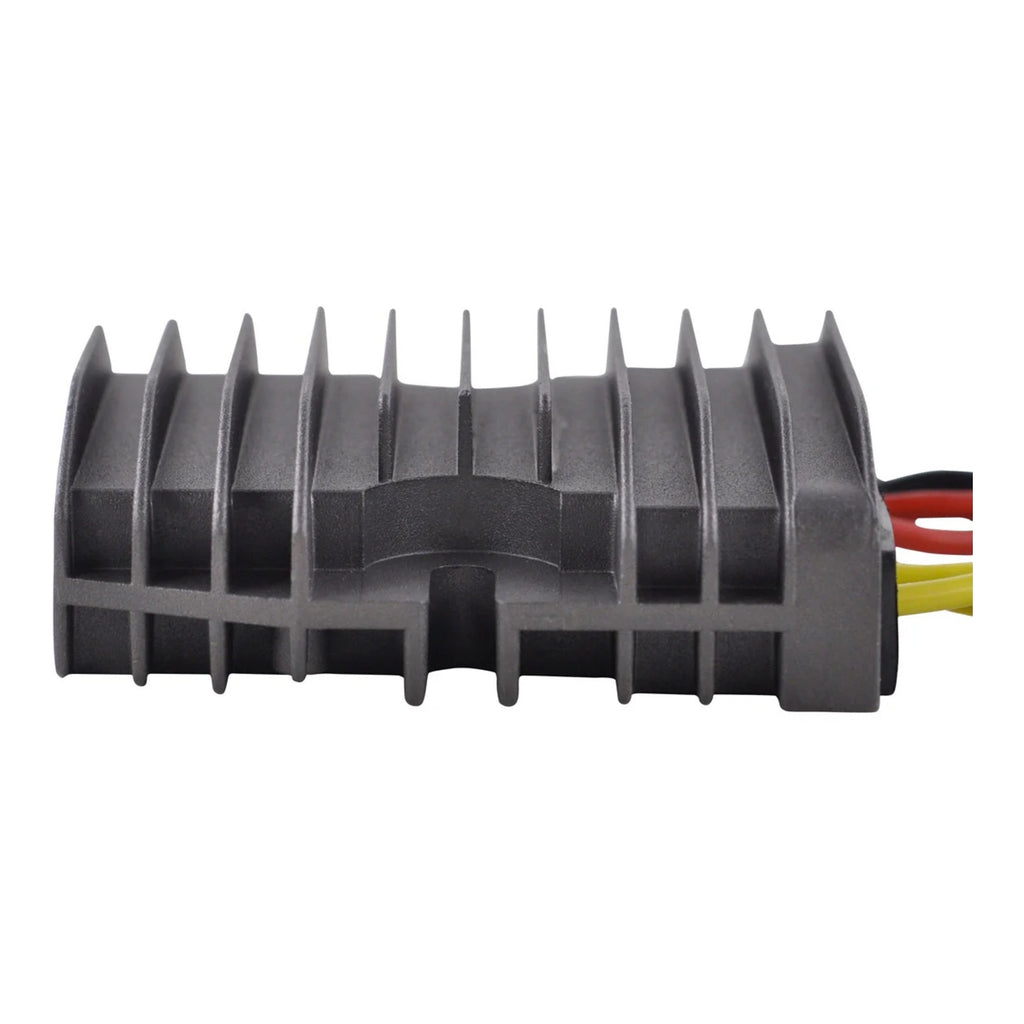

- Improved heat sink and charging capabilities.
- The quality exceeds the OEM equipment.
- All shipped products are tested.
Technical Data:
-
Dimensions:
- Width: 90 mm
- Length: 90 mm
- Height: 30 mm
- Wires length: 220 and 210 mm
- Fixation holes centre to centre: 75 mm
-
Other specifications:

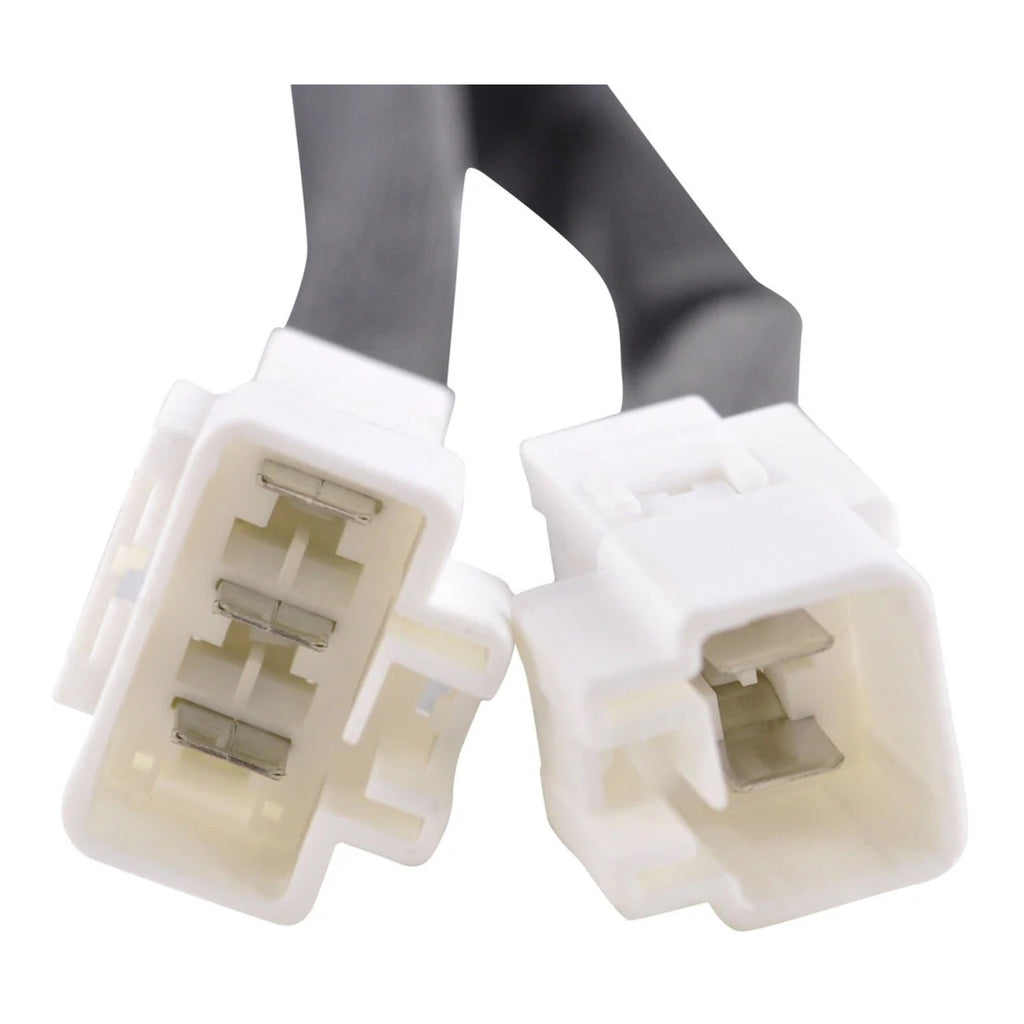

- Number of plugs: 2
- Number of pins: 5
- Number of wires: 5
- Minimum Charging Voltage: 14.5V +- 0.5V
- Maximum Charging Current: 50A500W
- Open Circuit Voltage: 15V
- Operation Temperature: -20° to 85°
