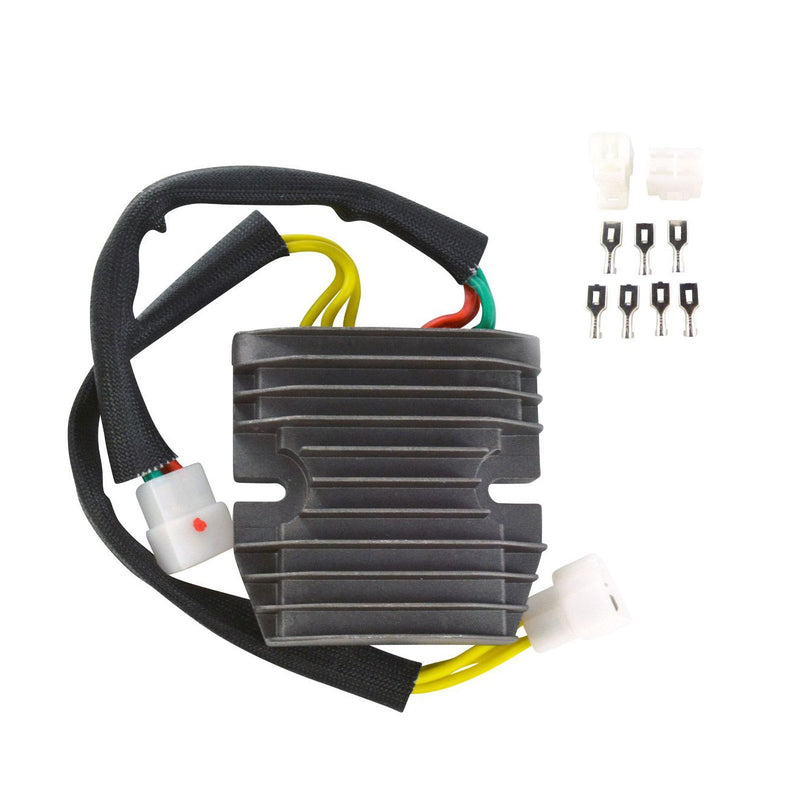

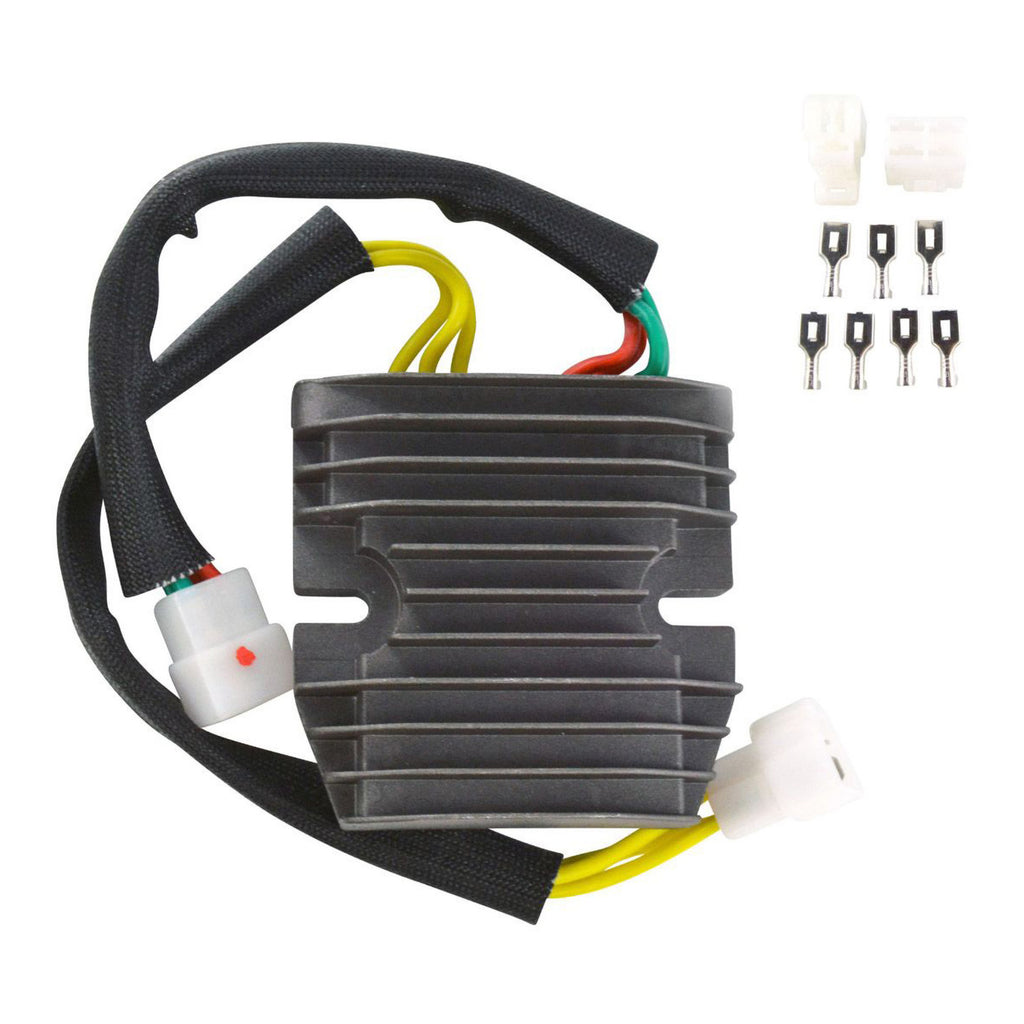

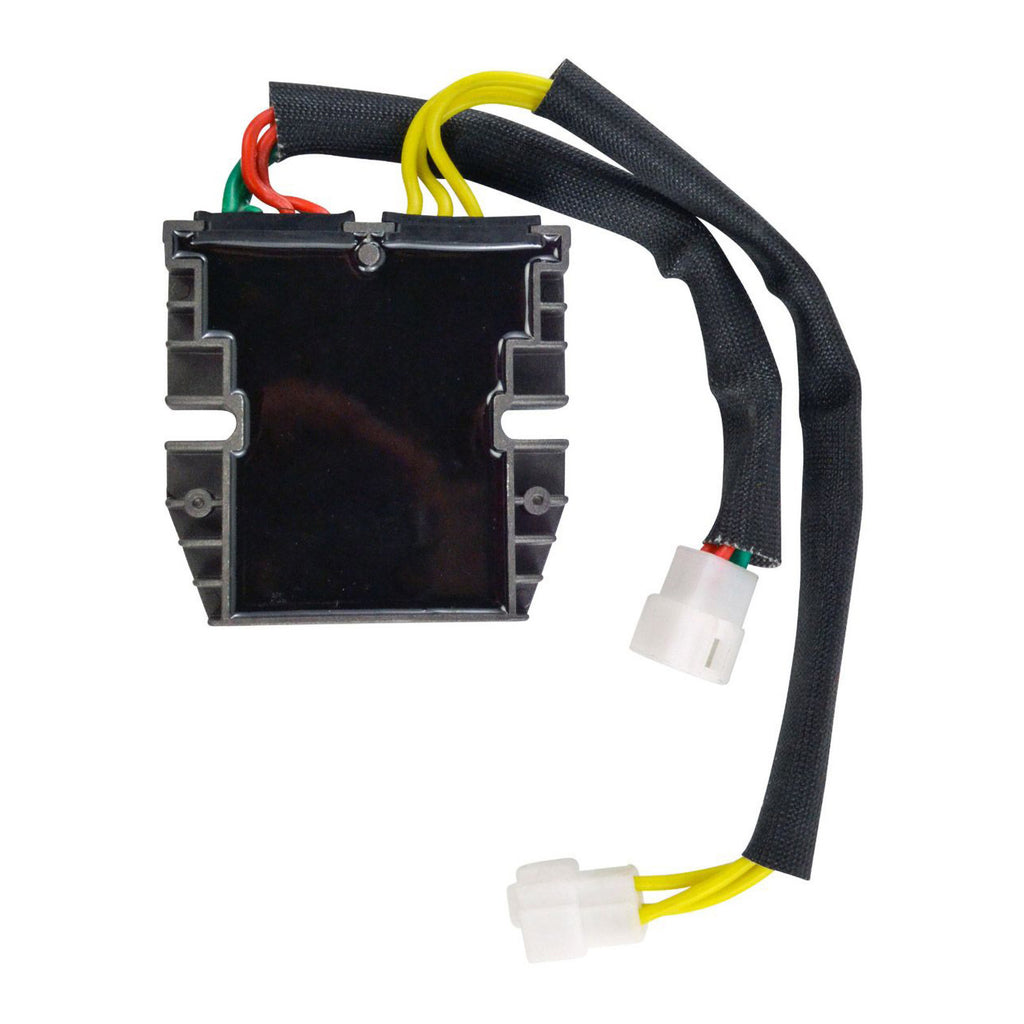

Brand new aftermarket voltage regulator rectifier

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• Higher grade of electric components.
• Improved heat sink and charging capabilities
• The quality exceeds the OEM equipment
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted corroded defective and a major cause for repetitive electrical issues.

Dimensions:

• Width: 90mm
• Length: 94mm
• Height: 30mm
• Fixation holes centre to centre: 75mm
• Wires Length: 320mm & 235mm

Other specifications:

• Number of plugs: 2
• Number of pins: 7
• Number of wires: 7
• Minimum Charging Voltage: 14.5 V +- 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: < 15 V
• Operation Temperature: -20° to 85°

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Fits: Ducati 1098 2007-2008 1098 S/TRICOLOR 2007-2008 1098R 2008-2009 1198 2009-2011 1198 S 2009-2010 749 2004-2006 749 R (OHLINS) 2004-2005 848 2008-2010 848 EVO 2011-2013 999 R 2003-2006 999 S 2006 MULTISTRADA 1000 DS 2003-2006 STREETFIGHTER 848 2012-2015 STREETFIGHTER S 1099 2010-2011 Triumph DAYTONA 600 2004 DAYTONA 650 2005 DAYTONA 955i 2002-2006 SPEED FOUR 2002-2005 SPEED TRIPLE 1050 2005-2012 SPEED TRIPLE 955 1999-2004 SPRINT RS 2000-2004 SPRINT ST 2002-2009 TIGER 1050 2007-2012 TIGER 955 2001-2006
