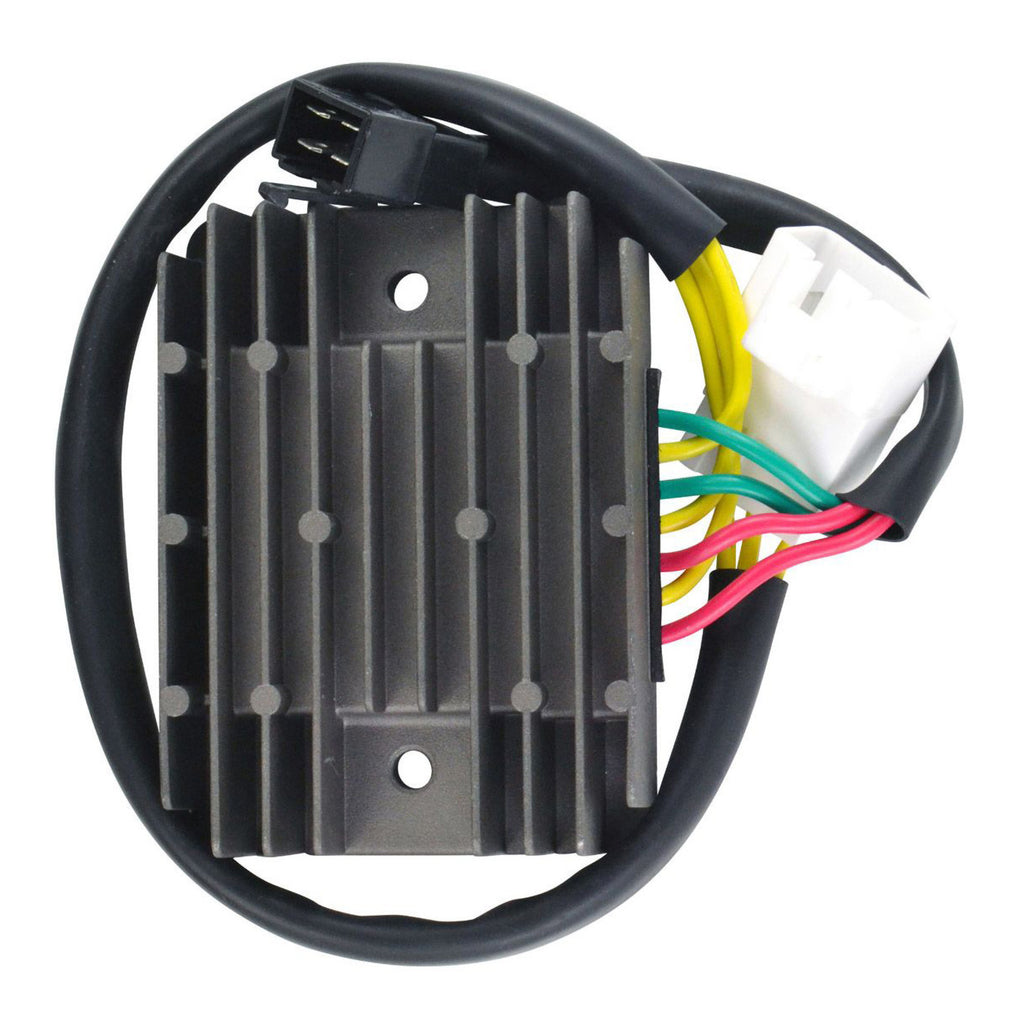

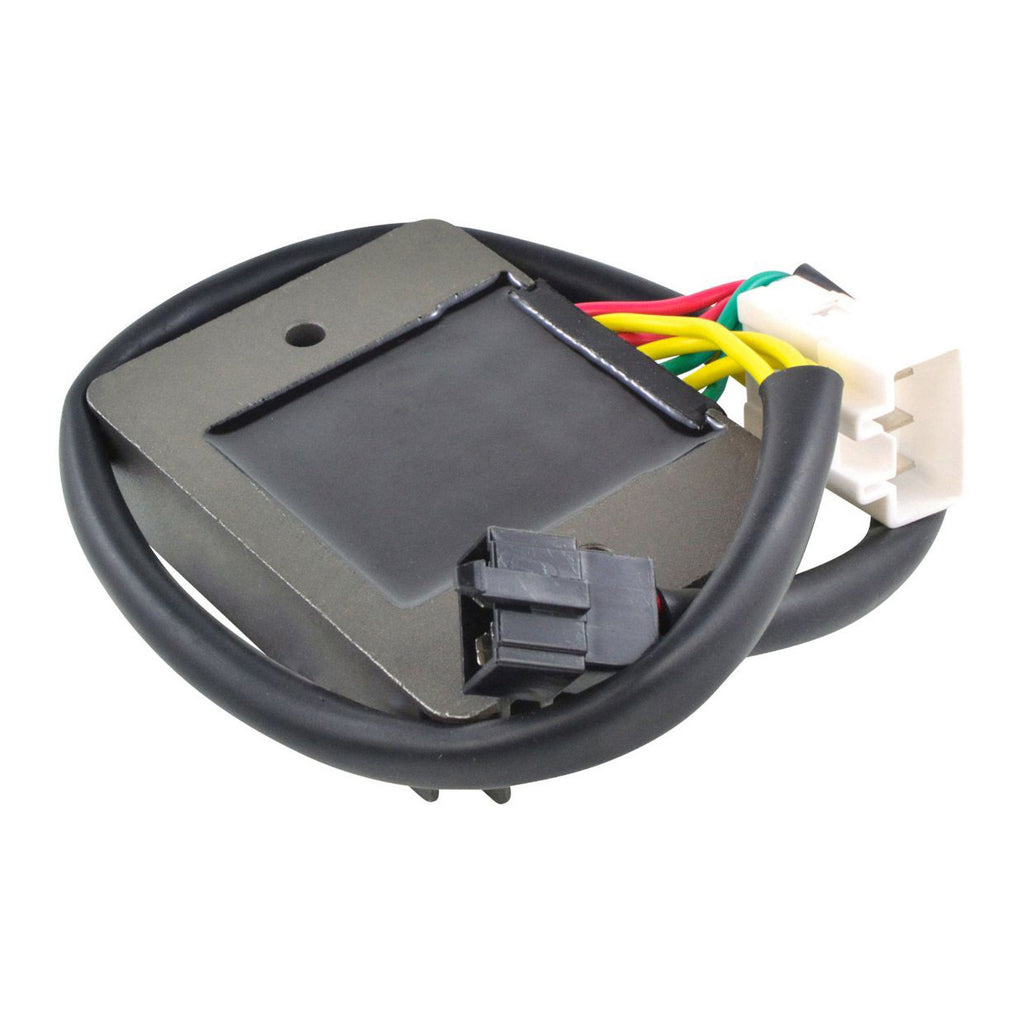

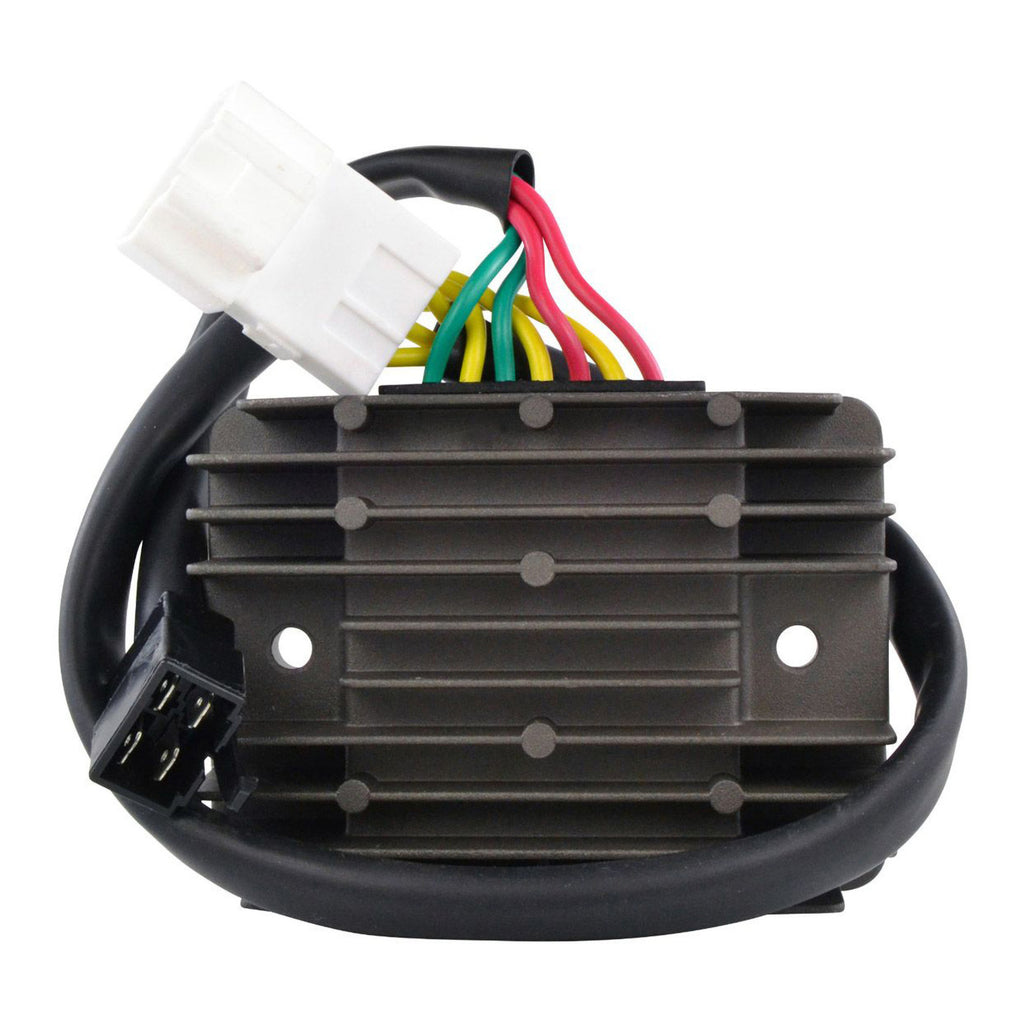

Brand new aftermarket voltage regulator rectifier

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• Higher grade of electric components.
• The quality exceeds the OEM equipment
• All products shipped are tested

Dimensions:

• Width: 80mm
• Length: 110mm
• Height: 28mm
• Wires length: 150mm & 400mm
• Fixation holes centre to centre: 80mm

Other Specifications:

• Number of plugs: 2
• Number of pins: 7
• Number of wires: 7
• Minimum Charging Voltage: 14.5 V +- 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: 15 V
• Operation Temperature: -20° to 85°

NOTE: Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
