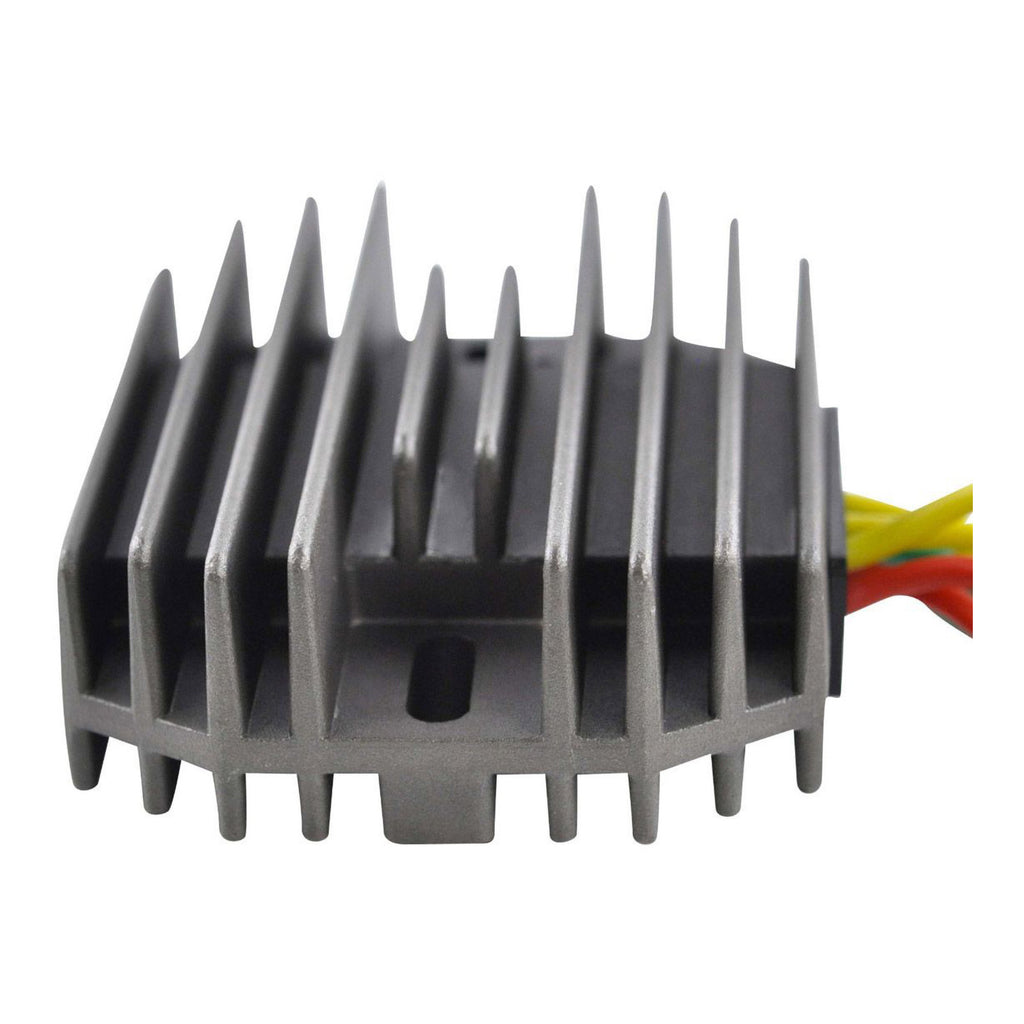

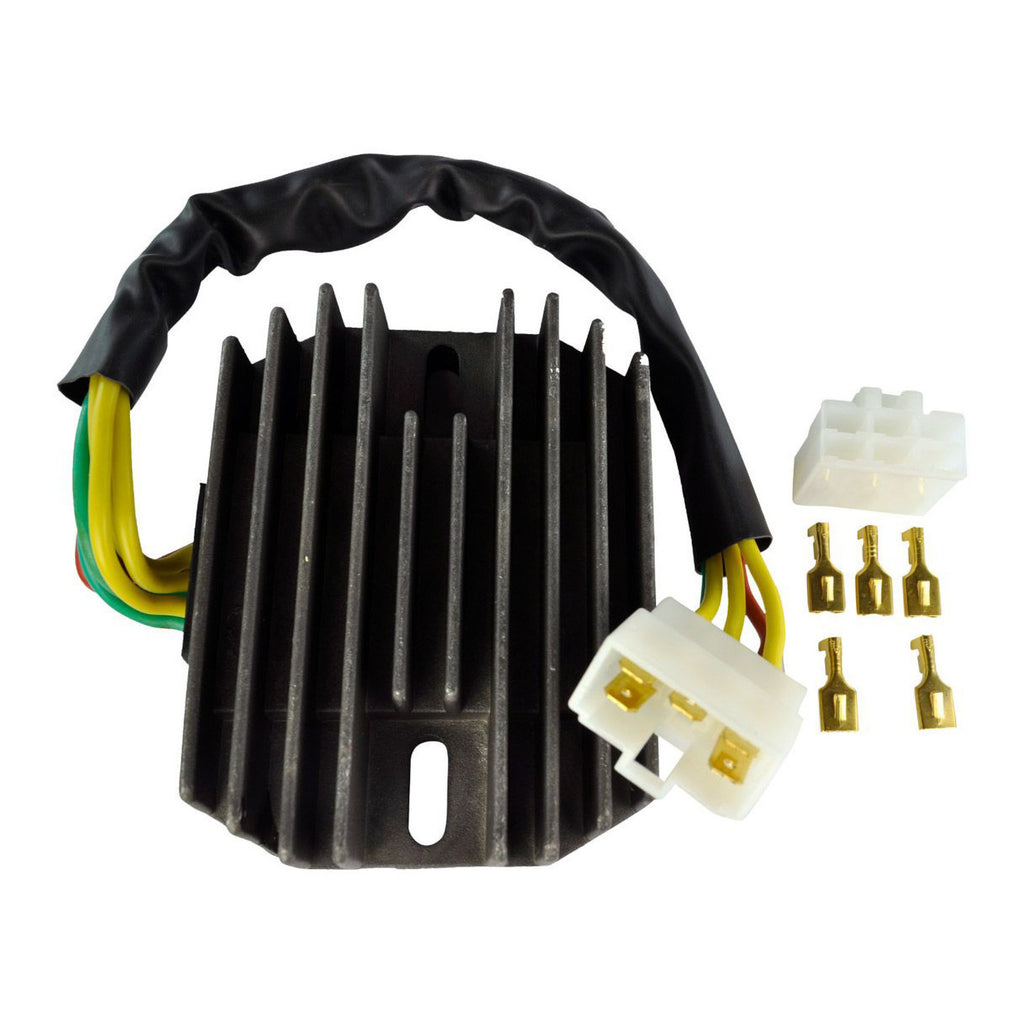

Brand new voltage regulator rectifierBEWARE: 1996 and early 1997 454 Bearcat 4x4 has a different plug.Please consult installation instruction before buying this product.Arctic Cat split the year on certain models; the RM30405 replaces OEM parts #3430-037 and #3430-016. Direct replacement to your original unit. Plug-and-play, direct fit, easy installation. No assembly required Quality exceeds the OEM equipment Improved heat sink and charging capabilities Higher grade of electric components. All products shipped are tested Dimensions: Width: 80mm Length: 115mm Height: 54mm Fixation holes centre to centre: 80mm Wires length: 275mm Other specifications: Number of plugs: 1 Number of pins: 5 Minimum Charging Voltage: 14.5V +/- 0.5V Maximum Charging Current: 25A-35A/300W-500W Open Circuit Voltage: <15V Operation Temperature: -20 to 85
Fits: Can-Am Outlander 500 MAX 4WD G2 DPS 2015 Outlander 500 MAX DPS 2015 Outlander 570 MAX DPS 2018-2019 Outlander 570 PRO 2019-2020 Triumph AMERICA 2007-2010 BONNEVILLE 2001-2010 BONNEVILLE T100 2002-2020 SCRAMBLER 2006-2010 SPEEDMASTER 800 2003-2005 SPEEDMASTER 865 2006-2010 THRUXTON 900 2004-2015 TT600 2000-2003
