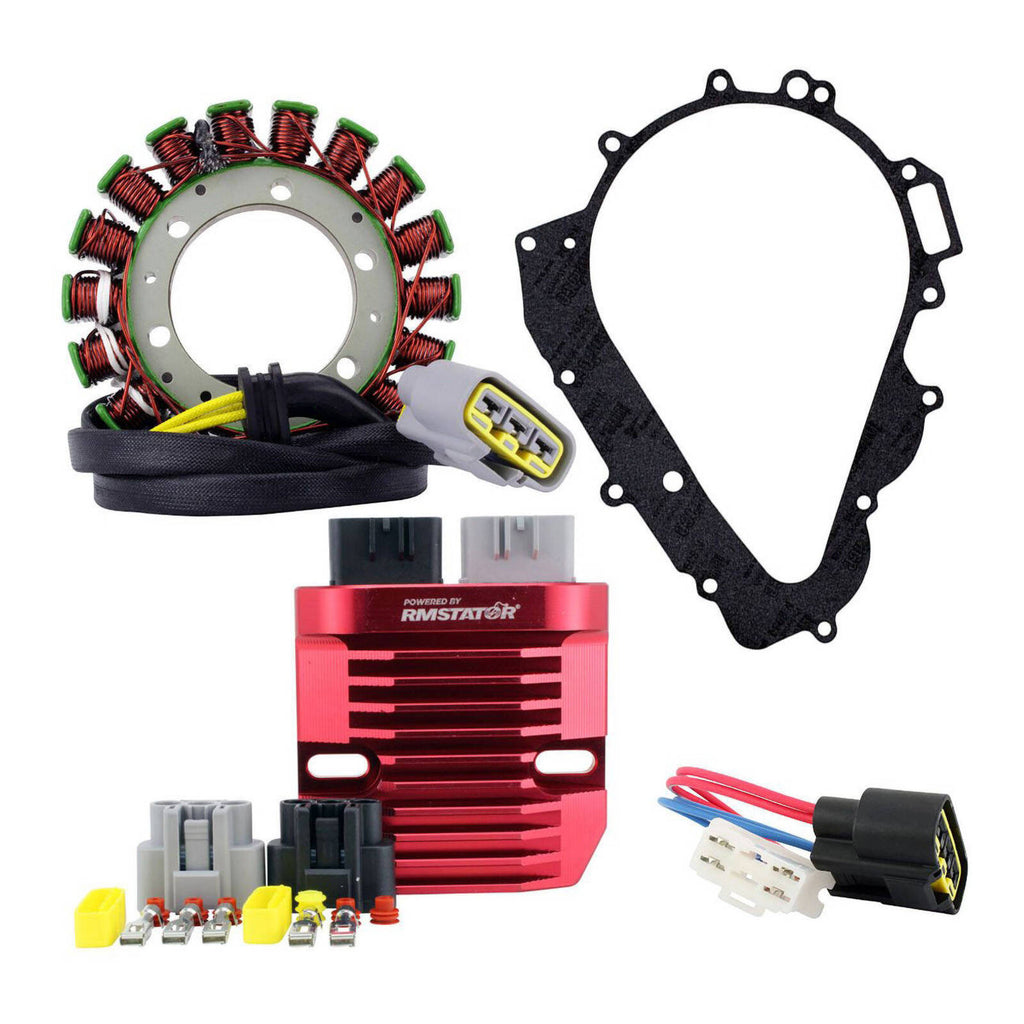

RMSTATOR Upgrade Stator + Mosfet Regulator set (RMS900-106902)

Brand new aftermarket Stator + Machined Aluminum Mosfet RegulatorKit

• Direct replacement to your originalunit
• Plug-and-play, direct fit, easyinstallation
• Harness and Gasket Included
• Include 3X OFM6-1.00 X 30 Allen socket head
• All shipped products aretested

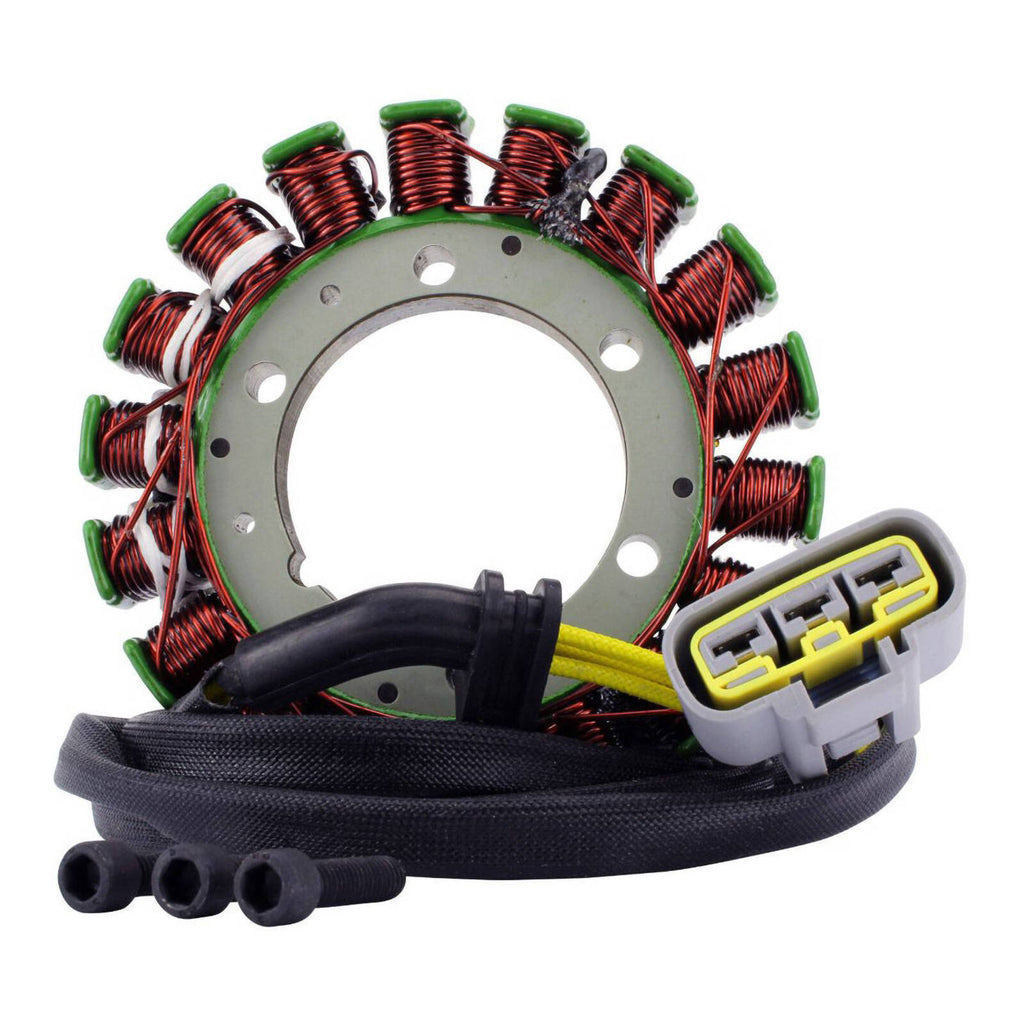

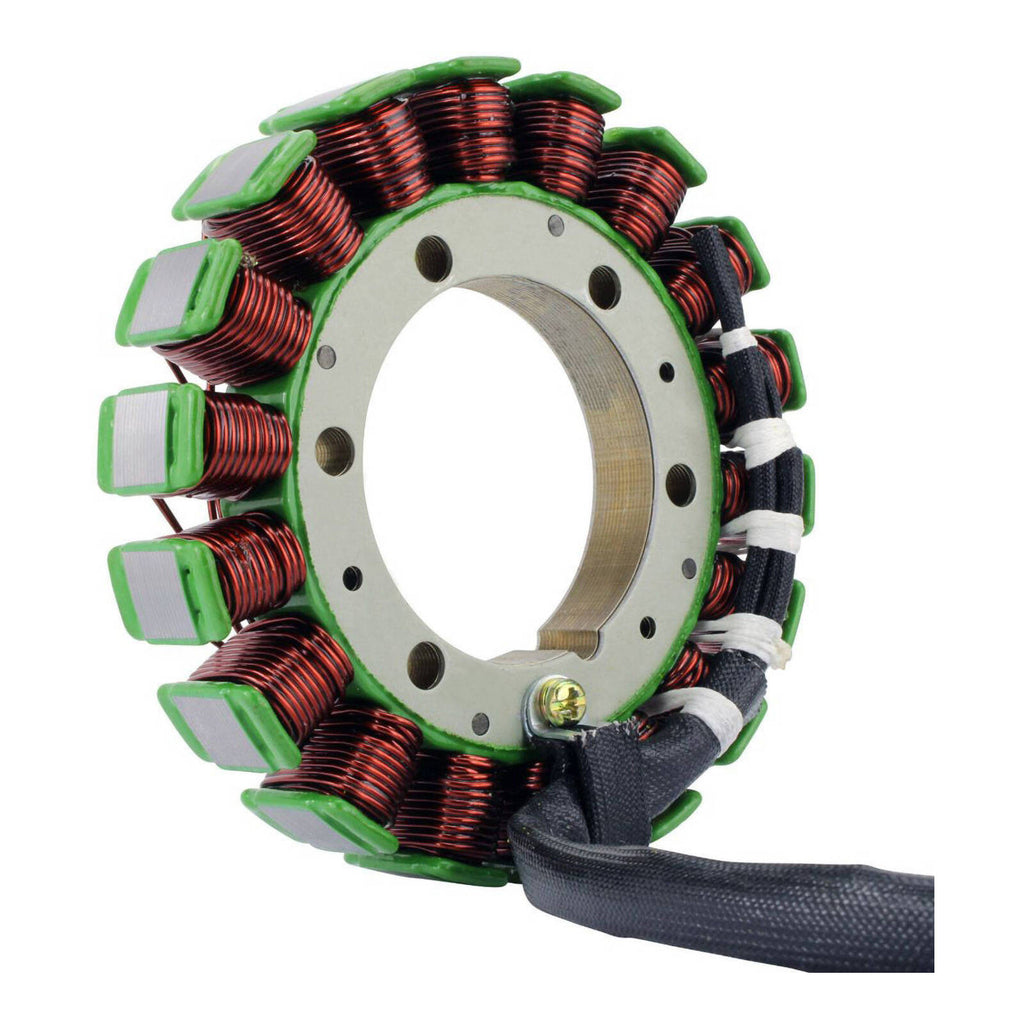

Brand new aftermarketStator

• Highest grade of laminationmaterials
• Highest grade of copper winding, resistant to 200degrees Celsius
• Tow pick up pulsar coilincluded
• Connectors included

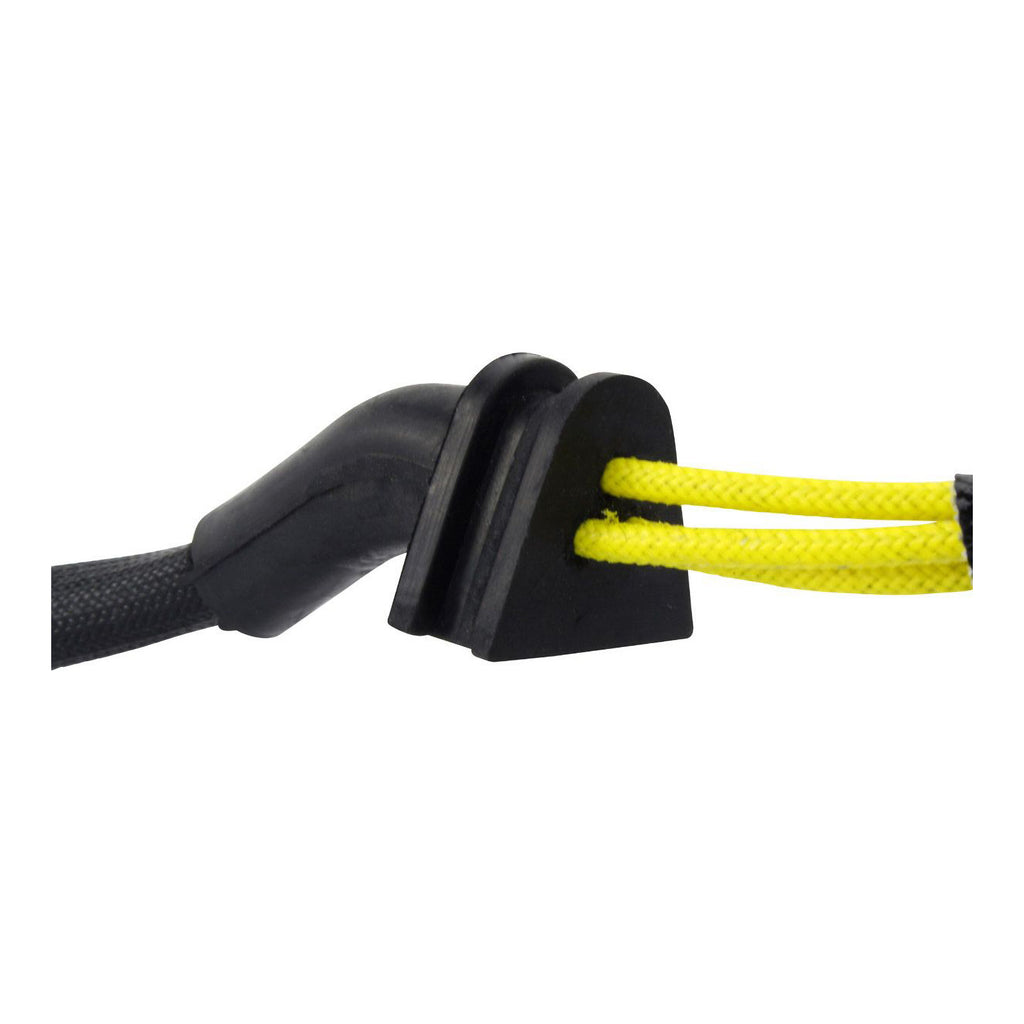

• Rubber grommetincluded

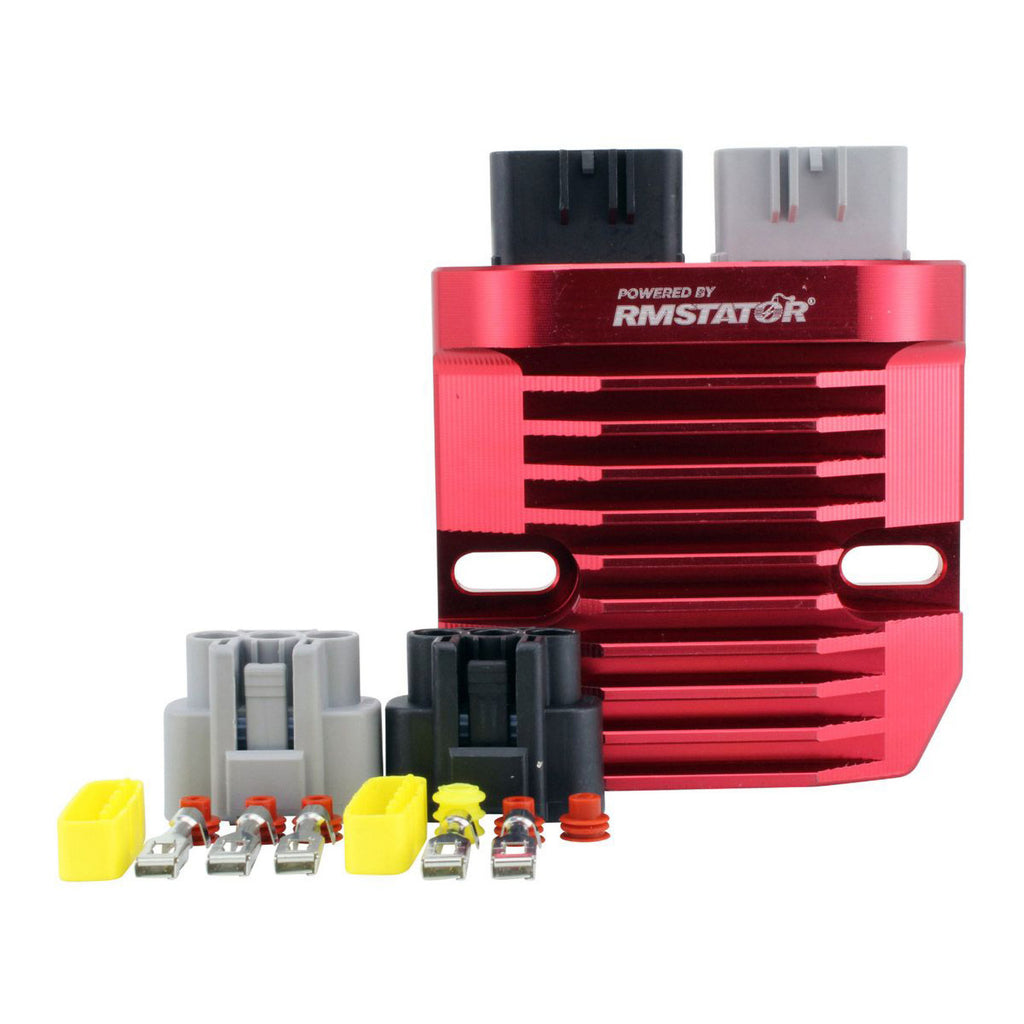

Brand new RMSTATOR Red Machined Aluminum MosfetRegulator

Our newRMSTATORmachinedaluminium Mosfet voltage regulator is a great upgrade for heat dissipationin any powersports charging system. After 10 minutes of use, our billetaluminium heatsink runs cooler by 33% than standard cast regulatorhousings. Our newRMSTATORred regulator,equipped with the renowned Mosfet regulation technology, is an added valueto any three-phase permanent magnet charging system.

STOPBURNING YOUR REGULATOR RECTIFIER!It is time toupdate or replace your voltage regulator with the advanced MOSFETtype.

It runs cooler than all OEM diode style regulators.In addition, this rectifier has overheat protection, rather than burn up,it will simply turn off for a while and cool off.

• Thequality exceeds the OEM equipment
• Improved heat sink and chargingcapabilities
• Higher grade of electriccomponents

We have even included the oppositeconnector (main harness side) as we know these are oftenmelted/corroded/defective and a major cause of repetitive electricalissues.

Why use Mosfet Enhancedtechnology?

• Runscooler:Runs much cooler than the traditional Shunt voltageregulator rectifier.
• Saves gas:Less loadon the stator, less work, less fuel is used and yousave.
• Regulated energy:The power chargingyour battery is steadier and smooth.
• Extended batterylife:Extends the batterys life and cold crankingcapacity.
• More engine power:Removes statorload resulting in more engine power.
• Optimizedpower:Optimize power delivery by switching the stator coilson or off.
• WithEnhanceTechnologydesign:This product is an advanced designthat lowers operating temperatures for extended longevity and betterperformance than the OEM part.

StatorDimensions

• Interior diameter:54mm
• Exterior diameter: 115mm
• Thickness:14mm
• Length of wires stator to grommet: 160mm
• Length ofwires grommet to plug: 1180mm

Otherspecifications:

• Number of wires: 3
• Number ofplugs: 1
• Number of pins: 3
• Number of poles:18

Wire to wire resistance:

• Alternator 3p:Yellow to Yellow = 0.8 ohms +-20%
• Pickup: Green to Blue = 500ohms +-20%

RegulatorDimensions:

• Width: 103mm
• Length:103mm
• Height: 28mm
• Distance between fixation holescentre to centre: 80mm

Otherspecifications:

• Number of plugs: 2
• Number of pins:5
• Minimum Charging Voltage: 14.5 V +- 0.5 V
• MaximumCharging Current: 50 A / 500 W
• Open Circuit Voltage: < 15V
• Operation Temperature: -20C to 85C

Please Note:

1. All electrical components mustbe fitted by a qualified technician.
2. Before fitting electricalcomponents ensure the root cause of the original failure has beenaddressed.
3. The absence of either of points 1 or 2 above, will voidany warranty.
