Description

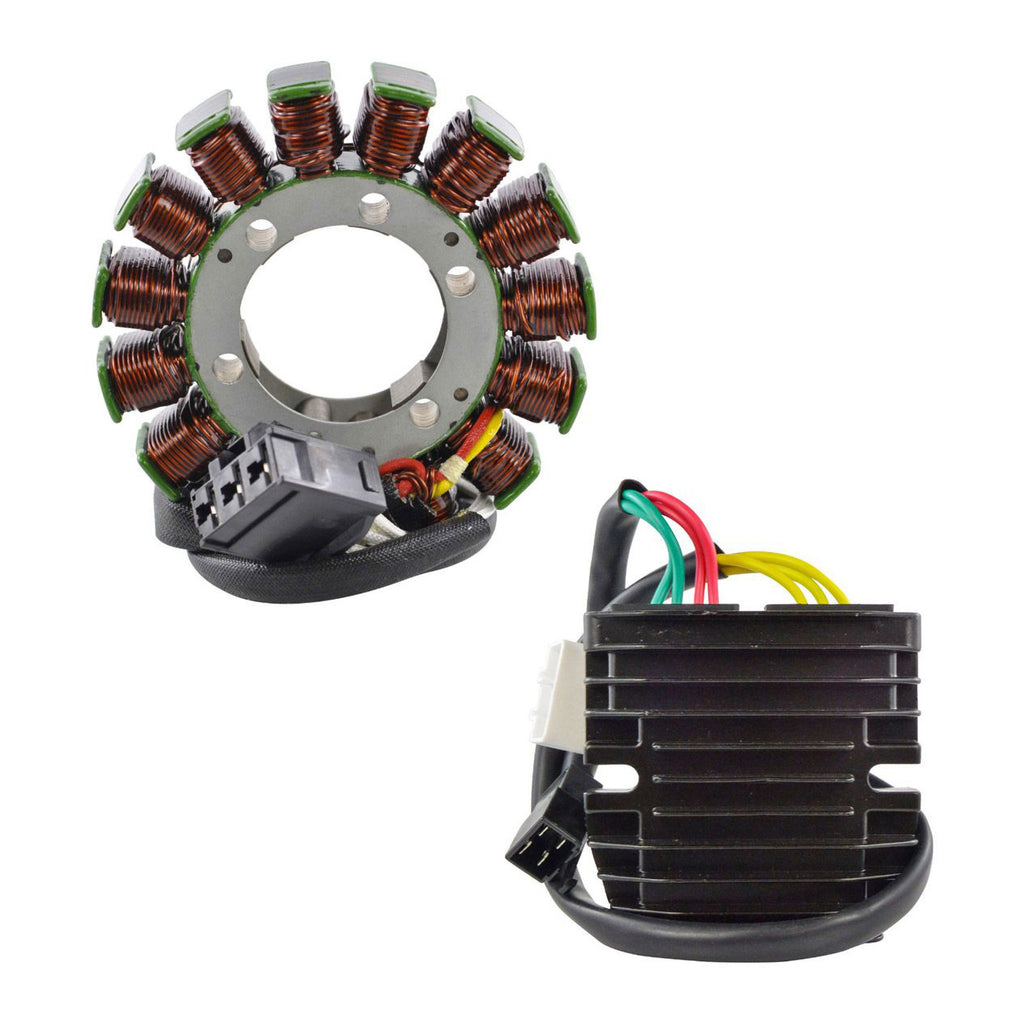

Kit Generator Stator + Mosfet RegulatorRectifier
- Direct replacement to your originalunit
- Plug-and-play, direct fit, easy installation
- Allshipped products are tested
- All item pictures are accurate; if indoubt, do not hesitate to compare our item to your originalpart
Brand new aftermarketstator
- Highest grade of laminationmaterials
- Highest grade of copper winding, resistant to 200 degreesCelsius
- Connector included
- Rubber grommetincluded

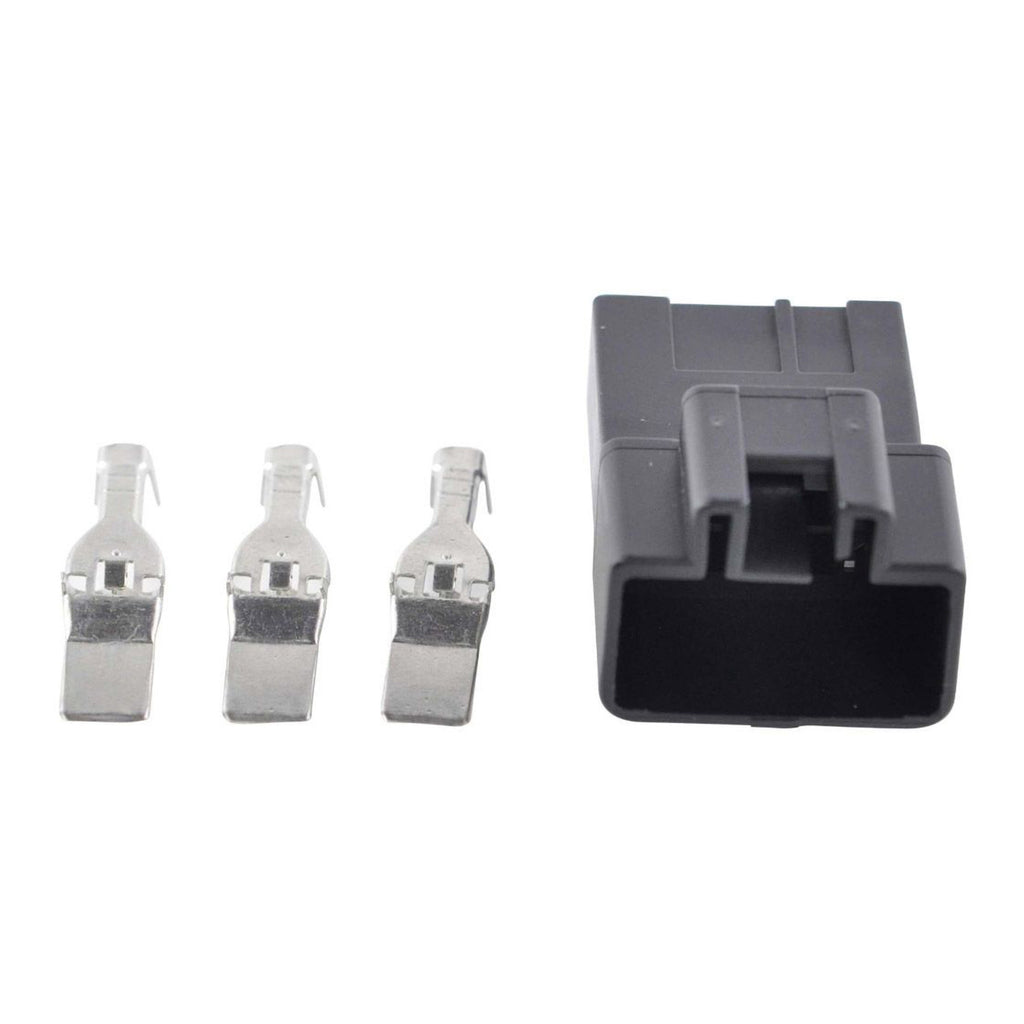

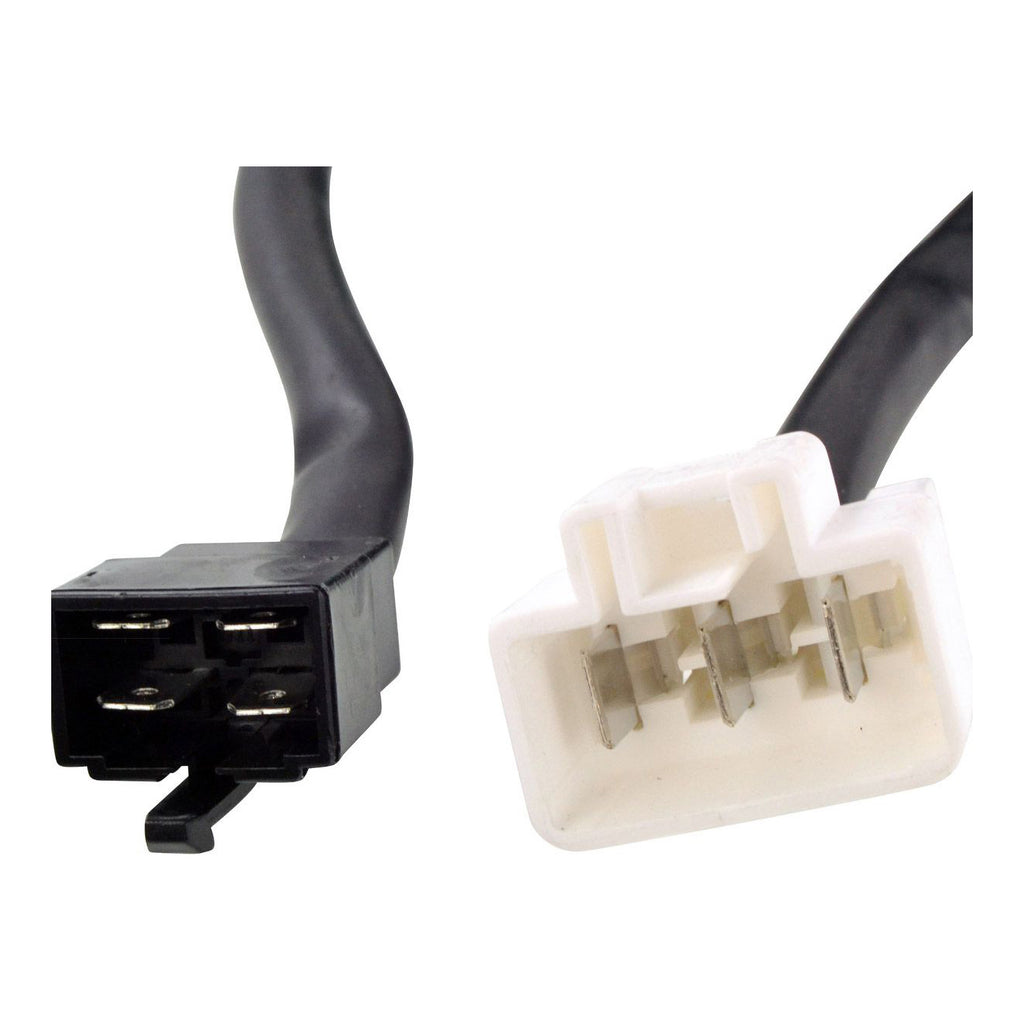

We have even included the opposite connector (mainharness side), as we know these are often melted / corroded/defective and amajor cause of repetitive electrical issues.

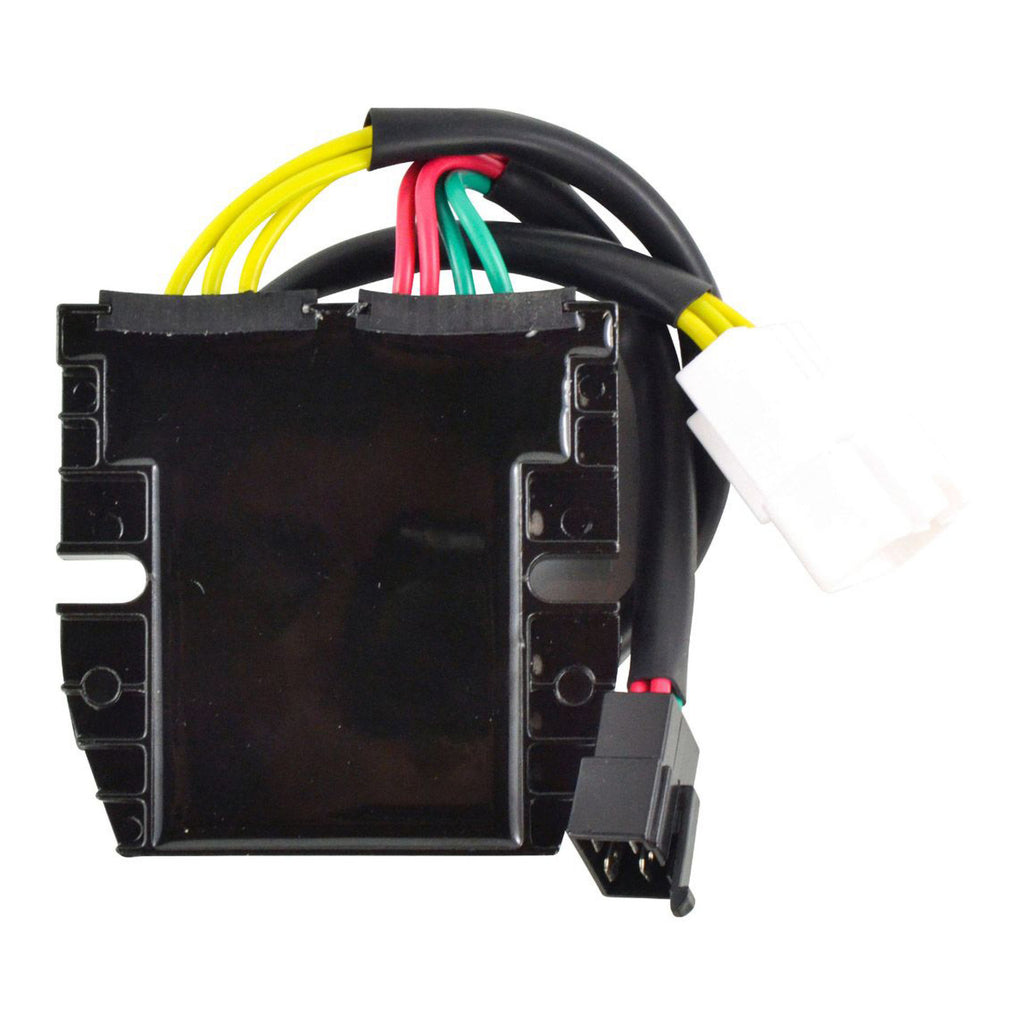

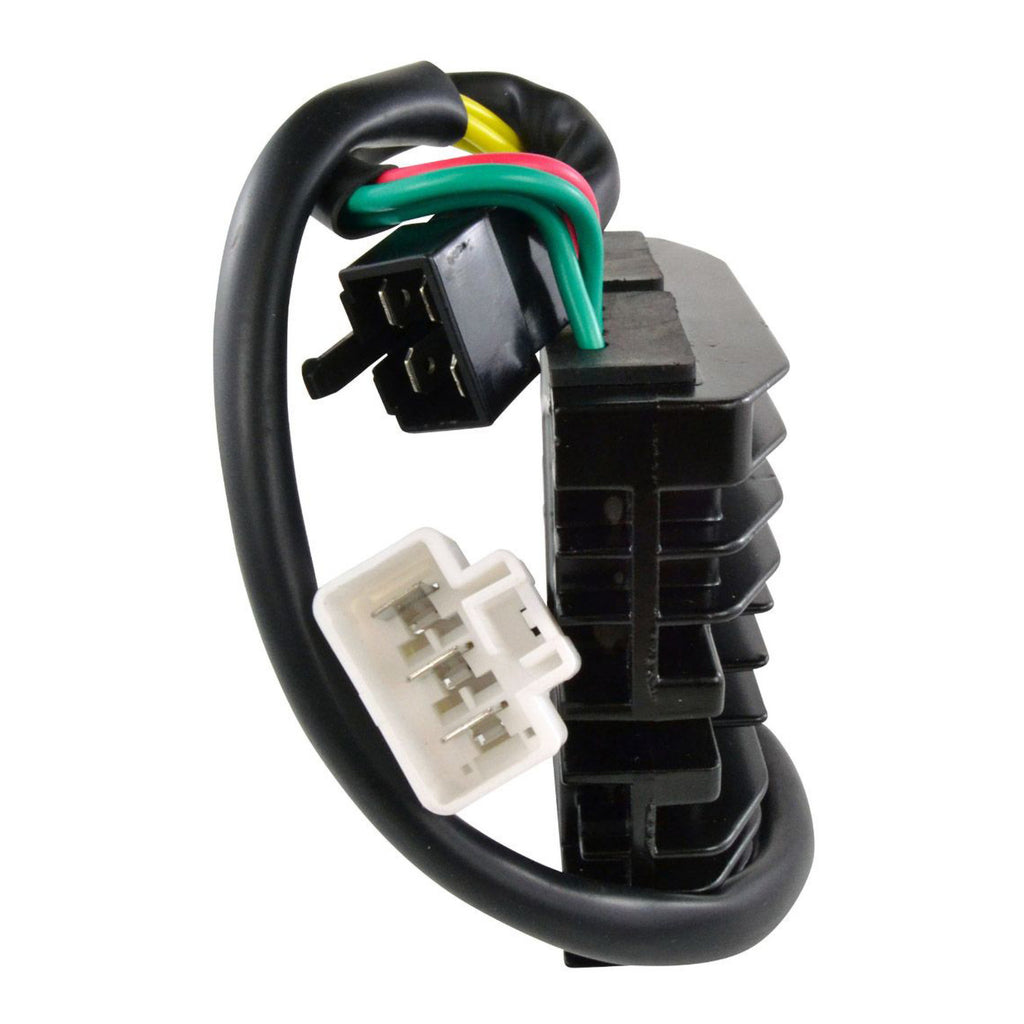

Brand new Mosfetvoltage regulator rectifier
STOP BURNING YOURREGULATOR RECTIFIER!
It is time to update or replace your voltageregulator with the advanced MOSFET type.
It runs cooler thanall OEM diode-style regulators. In addition, this rectifier has overheatprotection, rather than burn up it will simply turn off for a while andcool off.
- Plug-and-play, direct fit, easyinstallation
- The quality exceeds the OEM equipment
- Improvedheat sink and charging capabilities
- Higher grade of electriccomponents
Stator Dimensions
Interiordiameter: 42 mm
Exterior diameter: 115 mm
Thickness: 16 mm
Length of wires stator to grommet: 90 mm
Length of wires grommet toplug: 300 mm
Other specifications:
Number ofwires: 3
Number of plugs: 1
Number of pins: 3
Wire towire resistance:
Alternator : Between each White = 0.4 ohms+/-20%
Mosfet Voltage Regulator RectifierDimensions
Width: 95 mm
Length: 95 mm
Height: 28mm
Wires length: 150 mm & 400 mm
Fixation holes center tocenter: 80 mm
Other specifications:
Number ofplugs: 2
Number of pins: 7
Number of wires: 7
MinimumCharging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500W
Open Circuit Voltage: 15 V
Operation Temperature: -20 to85
