Description

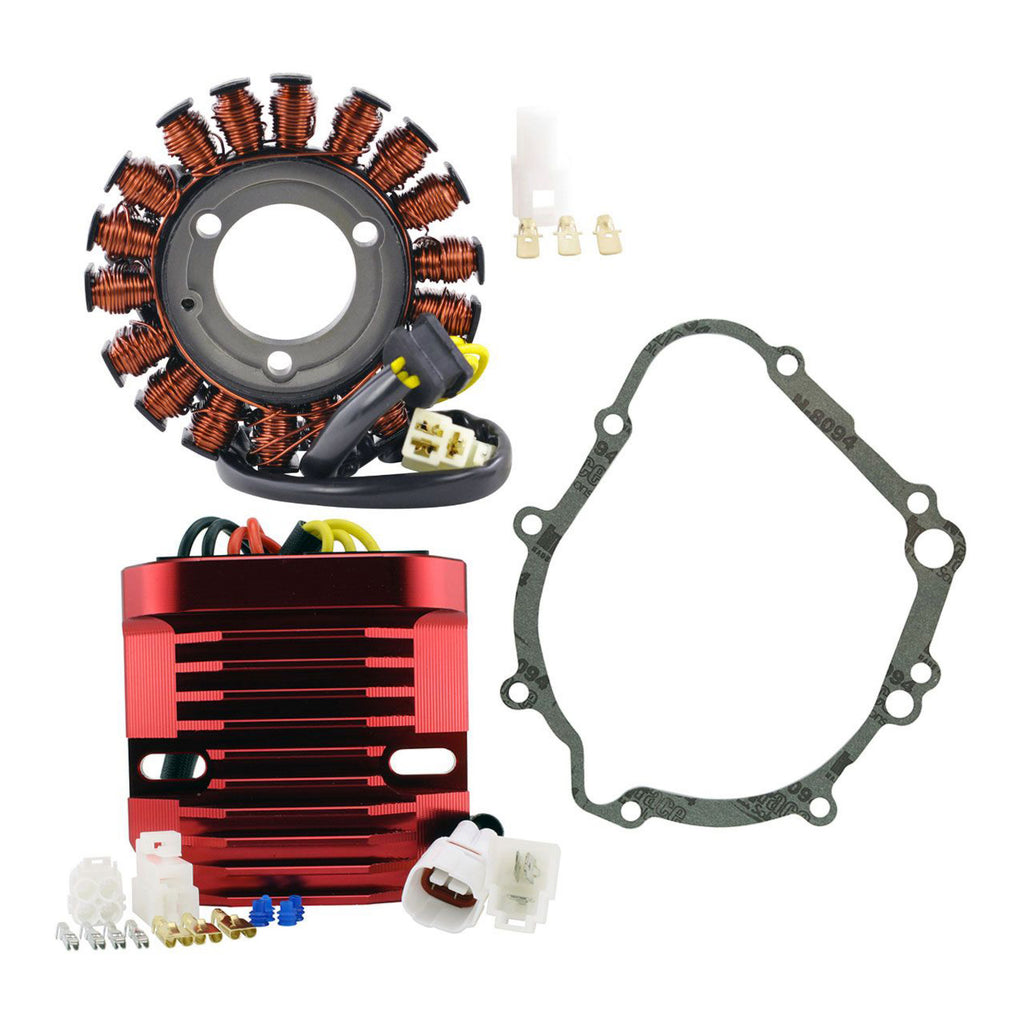

Brand new aftermarket Stator + Crankcase Cover Gasket + MosfetVoltage Regulator Kit
- Direct replacement to youroriginal unit
- Plug-and-play, direct fit, easyinstallation
- All shipped products are tested

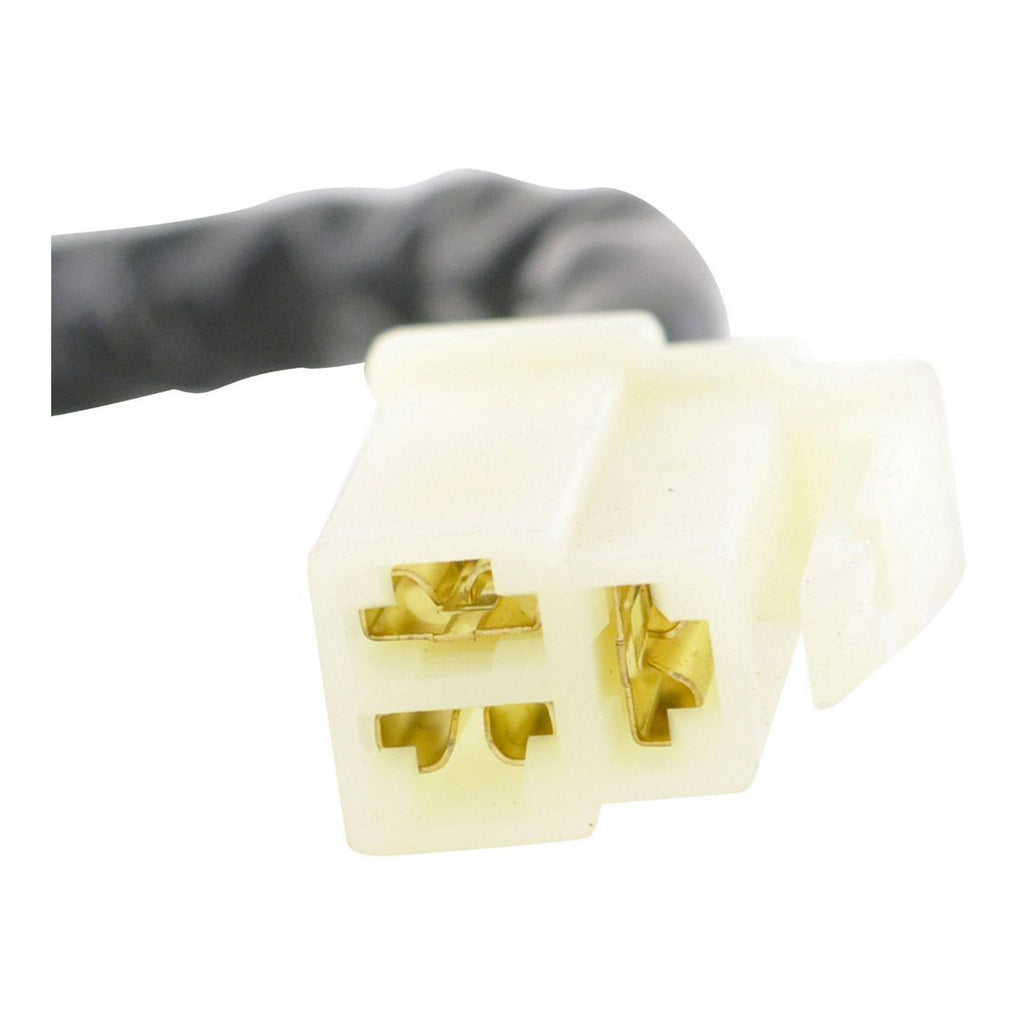

Wehave even included the opposite connector (main harness side) as we knowthese are often melted / corroded/defective and a major cause of repetitiveelectrical issues.
All item pictures are accurate; if indoubt, do not hesitate to compare our item to your originalpart.

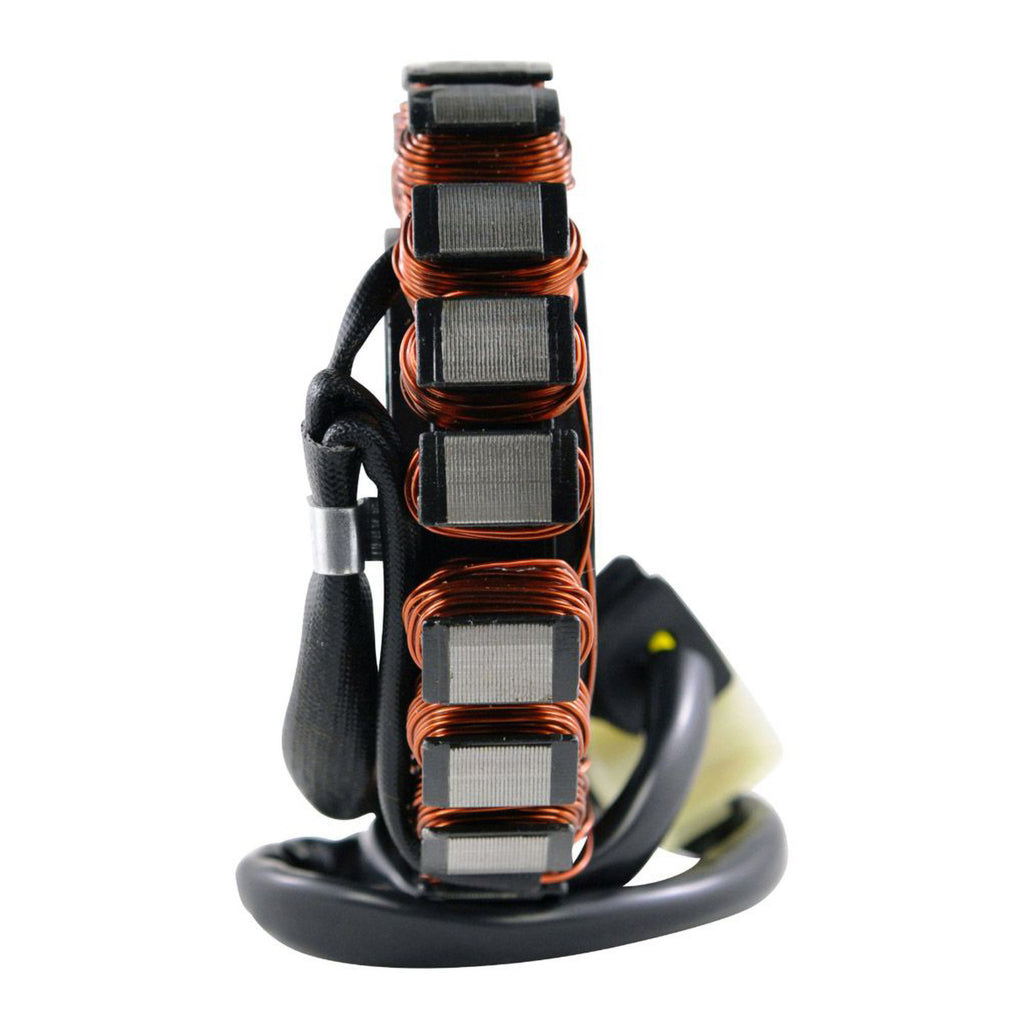

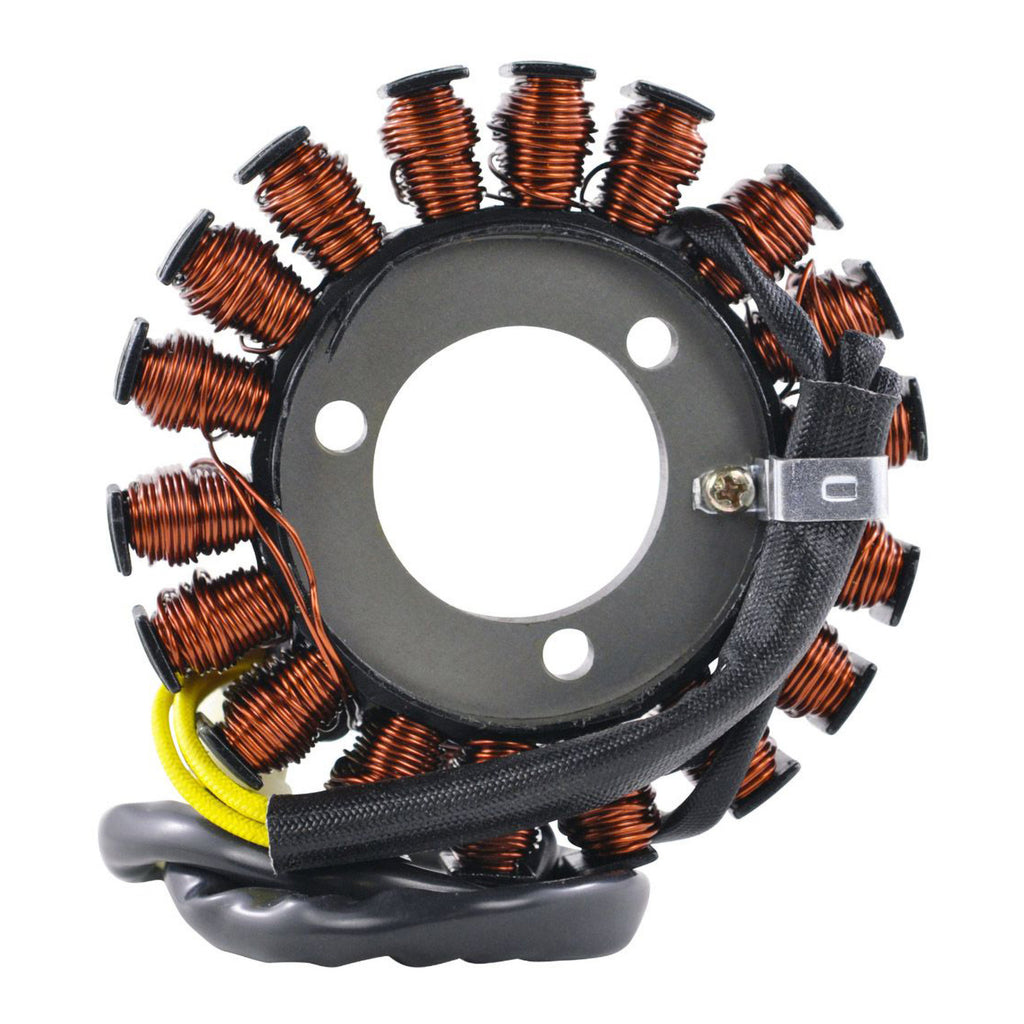

Stator
- Highest grade of laminationmaterials
- Highest grade of copper winding, resistant to 200 degreesCelsius
- Stator crankcase cover gasket included
- Connectorincluded
- Rubber grommet included
Brand newRMSTATOR Red Machined Aluminum Mosfet Regulator
Our newRMSTATOR machined aluminum Mosfet voltage regulator is agreat upgrade for heat dissipation in any powersports charging system.After 10 minutes of use, our billet aluminum heatsink runs cooler by 33%than standard cast regulator housings. Our new RMSTATORred regulator, equipped with the renowned Mosfet regulation technology, isan added value to any three-phase permanent magnet chargingsystem.
STOP BURNING YOUR REGULATOR RECTIFIER!
It istime to update or replace your voltage regulator with the advanced MOSFETtype.
It runs cooler than all OEM diode-style regulators. Inaddition, this rectifier has overheat protection, rather than burn up, itwill simply turn off for a while and cool off.
- The qualityexceeds the OEM equipment
- Improved heat sink and chargingcapabilities
- Higher grade of electriccomponents
Stator dimension
Interiordiameter: 38 mm
Exterior diameter: 107 mm
Thickness: 12 mm
Length of wires stator to grommet: 160 mm
Length of wires grommet toplug: 330 mm
Other specifications:
Number ofwires:3
Number of plugs: 1
Number of pins: 3
Wire to wireresistance:
Alternator: Yellow to Yellow = 0.5 ohms+/-20%
Regulator dimension Width : 92 mm
Length: 92 mm
Height: 30 mm
Fixation holes center to center: 75mm
Wires length: 300 mm
Other specifications :
Number ofplugs: 2
Number of pins: 7
Number of wires: 7
MinimumCharging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A /500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20C to 85 C
