Description

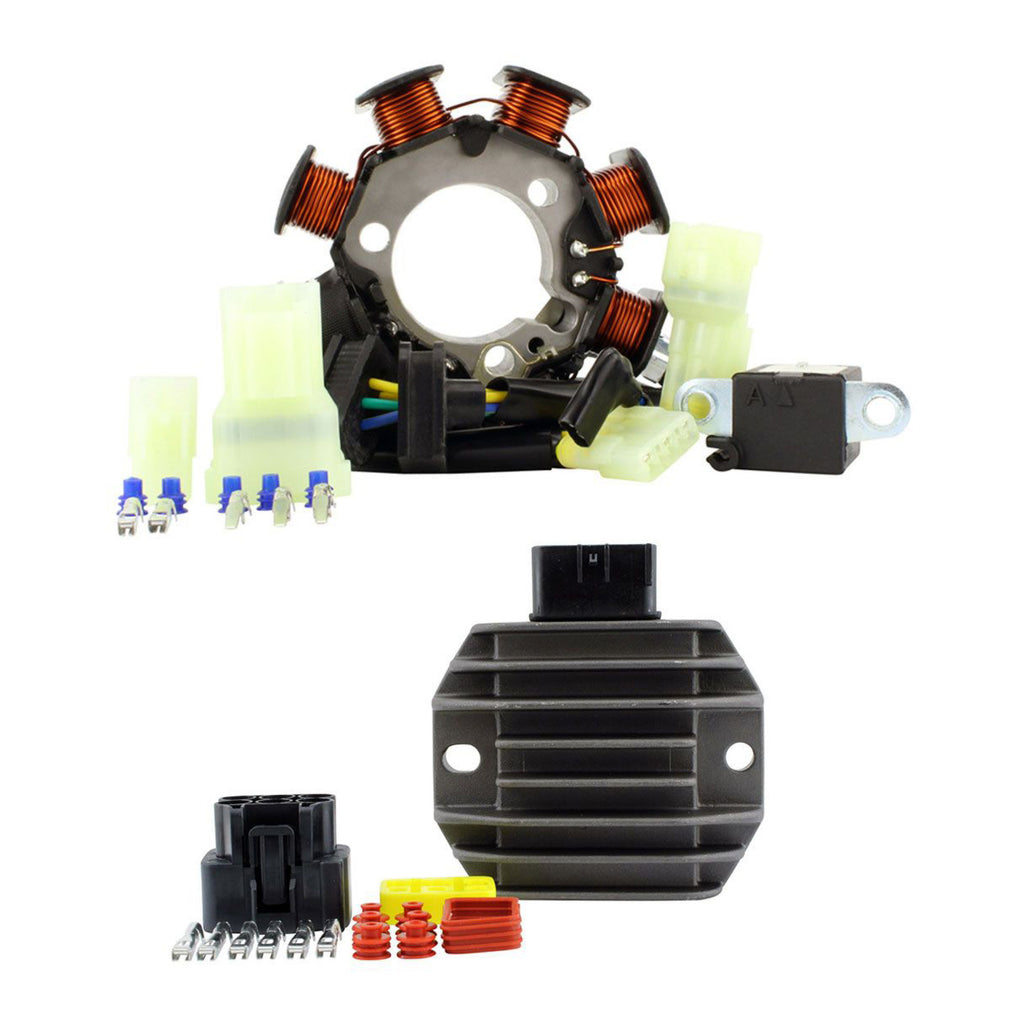

Kit Stator + Mosfet regulator
- Directreplacement to your original unit
- Plug-and-play, direct fit, easyinstallation
- All shipped products are tested
Wehave even included the opposite connector (main harness side) as we knowthese are often melted / corroded / defective and a major cause forrepetitive electrical issues.
All item pictures areaccurate, if in doubt, do not hesitate and compare our item to youroriginal part.
Brand new aftermarketStator
- Highest grade of laminationmaterials
- Highest grade of copper winding, resistant to 200 degreesCelsius

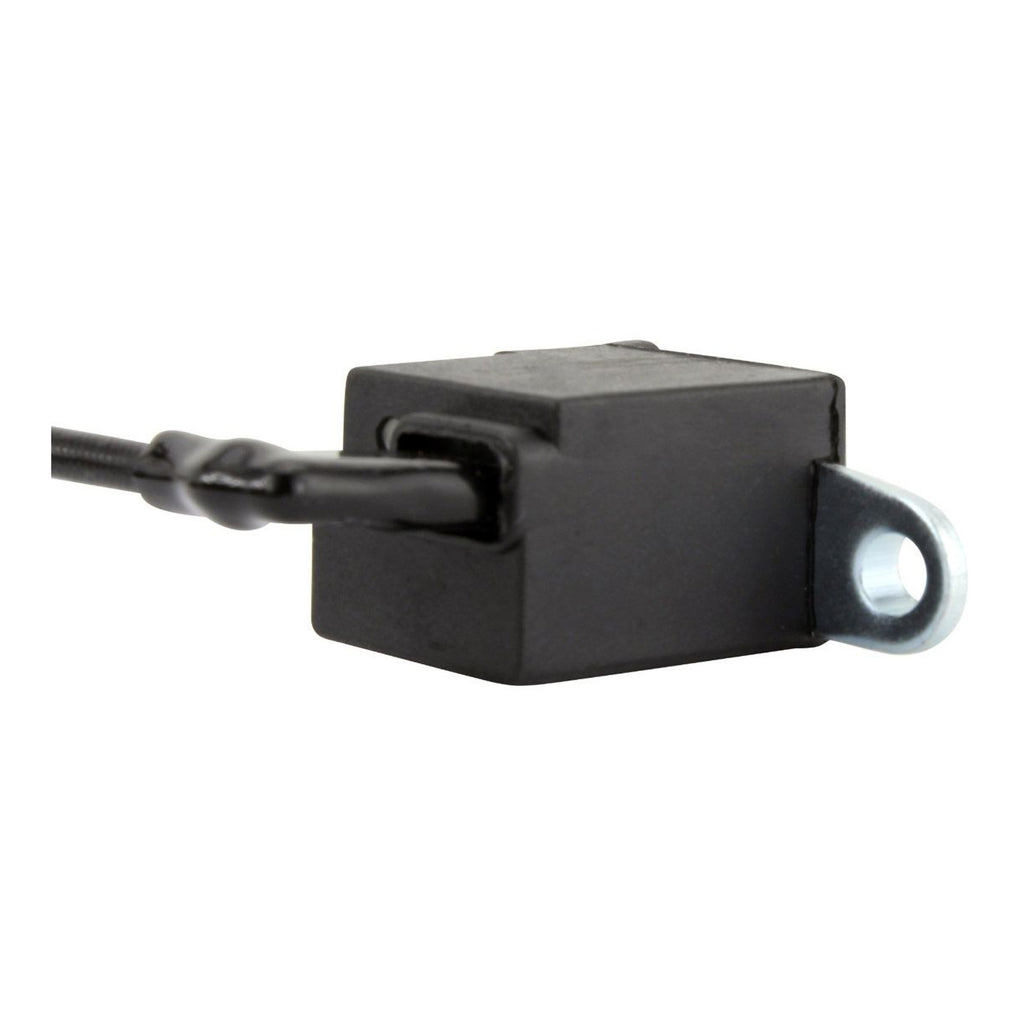

- Pick up pulsar coil included

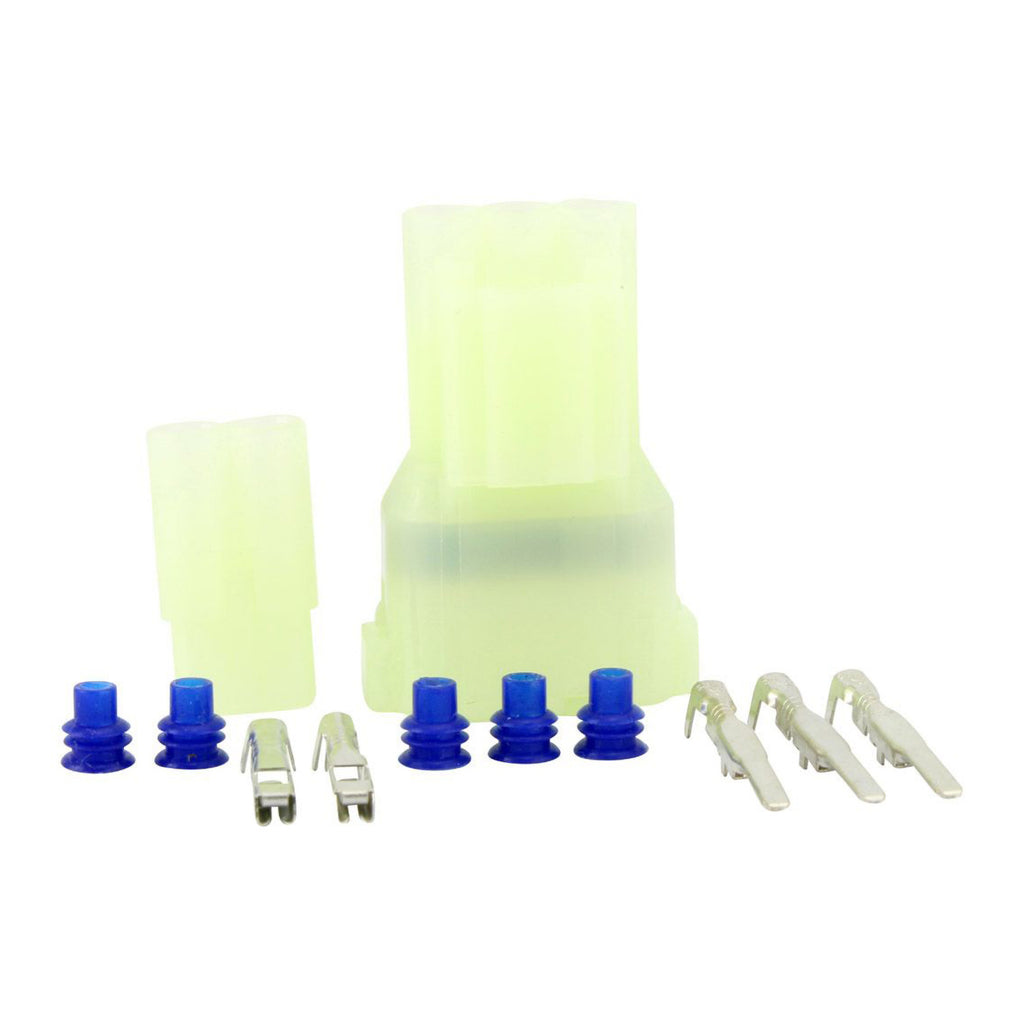

- Connectorsincluded

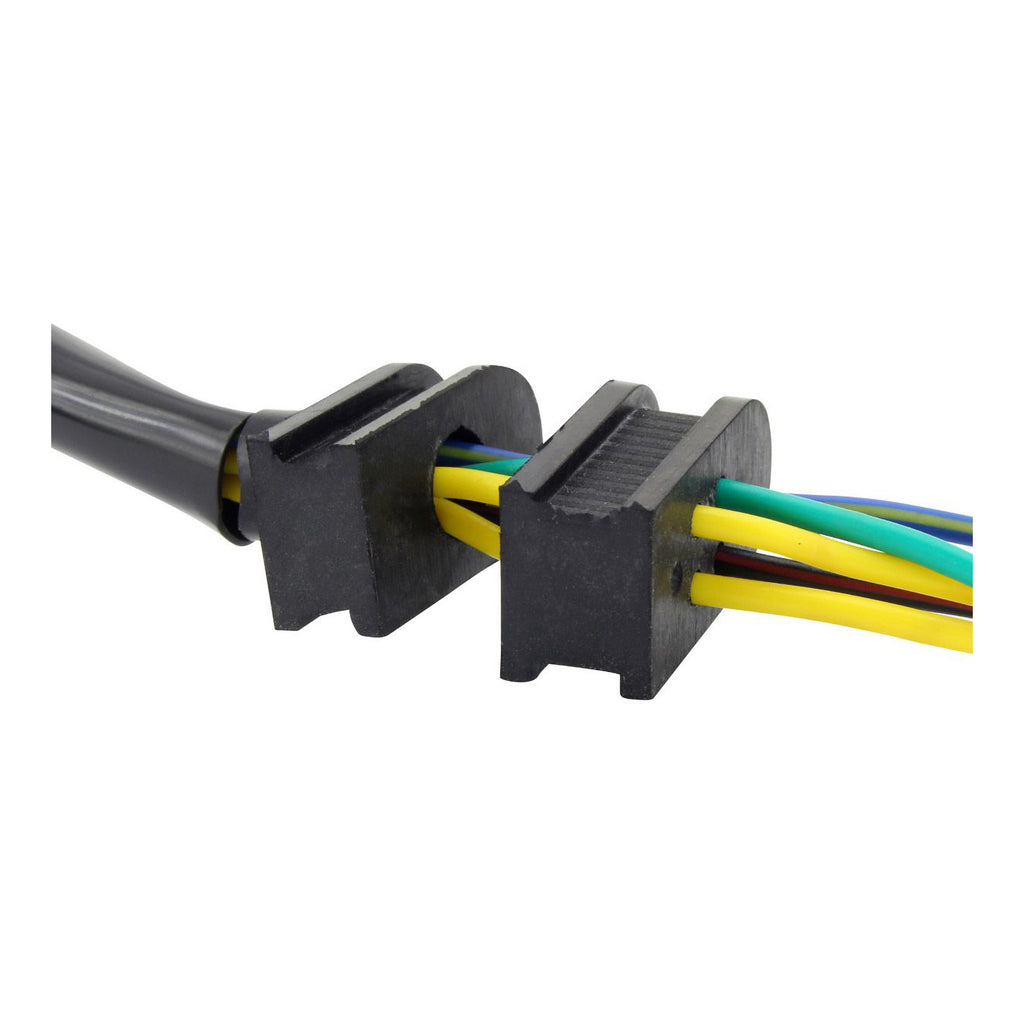

- Rubber grommet included

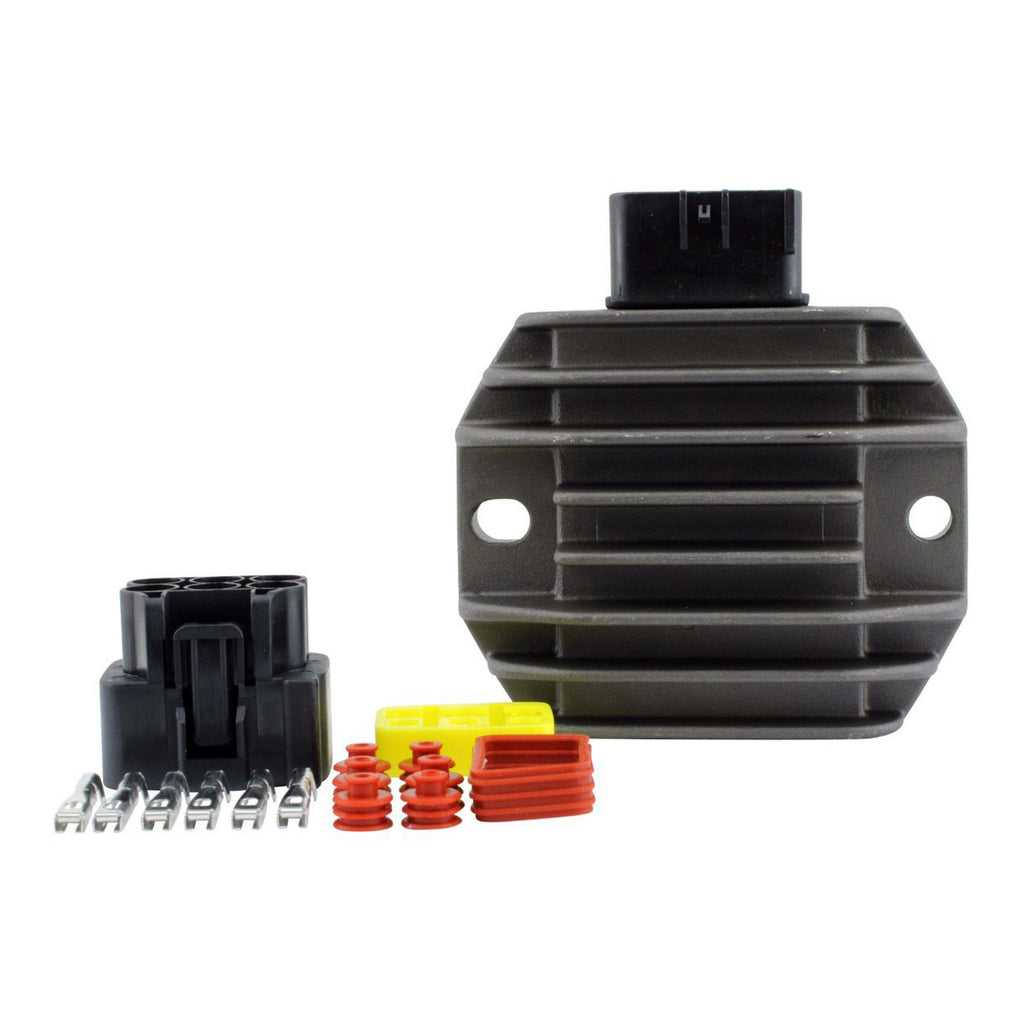

Brand newMosfet Voltage Regulator Rectifier
STOP BURNING YOURREGULATOR RECTIFIER!
It is time to update or replace your voltageregulator with the advanced MOSFET type.
It runs cooler thanall OEM diode-style regulators. In addition, this rectifier has overheatprotection, rather than burn up it will simply turn off for a while andcool off.
Key features
IMPROVED & HEAVYDUTY: OEM and most SCR type voltage regulator are known to fail more thanoften for these vehicles. Our RMS Labs took a best-selling voltageregulator and made it tougher by using highly reliable components toregulate the voltage. The result: More than 83% less failures than astandard OEM-type voltage regulator.
RMSTATOR RENOWNED MOSFETCOMPONENTS: Significantly decreases internal operating temperature withhighly efficient MOSFET transistor regulation circuit. This technology runsmuch cooler than the OEM silicon rectifier regulation circuit and requiresmuch less power to operate.
AUTOMOTIVE GRADE HEAVY-DUTY CONNECTORS:Increase contact surface for distributed voltage charge on pins & lessheat generated at connectors levels
- The quality exceeds the OEMequipment
- Higher grade of electriccomponents
Stator
Dimensions:
Interior diameter: 35 mm
Exterior diameter: 88 mm
Thickness: 18mm
Length of wires stator to grommet: 90 mm
Length of wiresgrommet to plug: 140 mm
Length of pickup coil's wire to grommet #1:330 mm
Length of pickup coil's wire to grommet #2: 370 mm
Otherspecifications:
Number of wires: 5
Number of plugs: 2
Numberof pins: 5
Number of poles: 8
Wire to wire resistance:
Alternator: Between each Yellow = 0.7 ohms +-20%
Pickup: Blue/Yellowto Ground = 336 ohms +-20%
Source: Black/Red to Ground = 185 ohms+-20%
Regulator
Dimensions:
Width: 25mm
Length: 79 mm
Height: 83 mm
Fixation holes center tocenter: 60 mm
Other specifications:
Number of plugs: 1
Number of pins: 6
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15V
Operation Temperature: -20 C to 85C
