Description

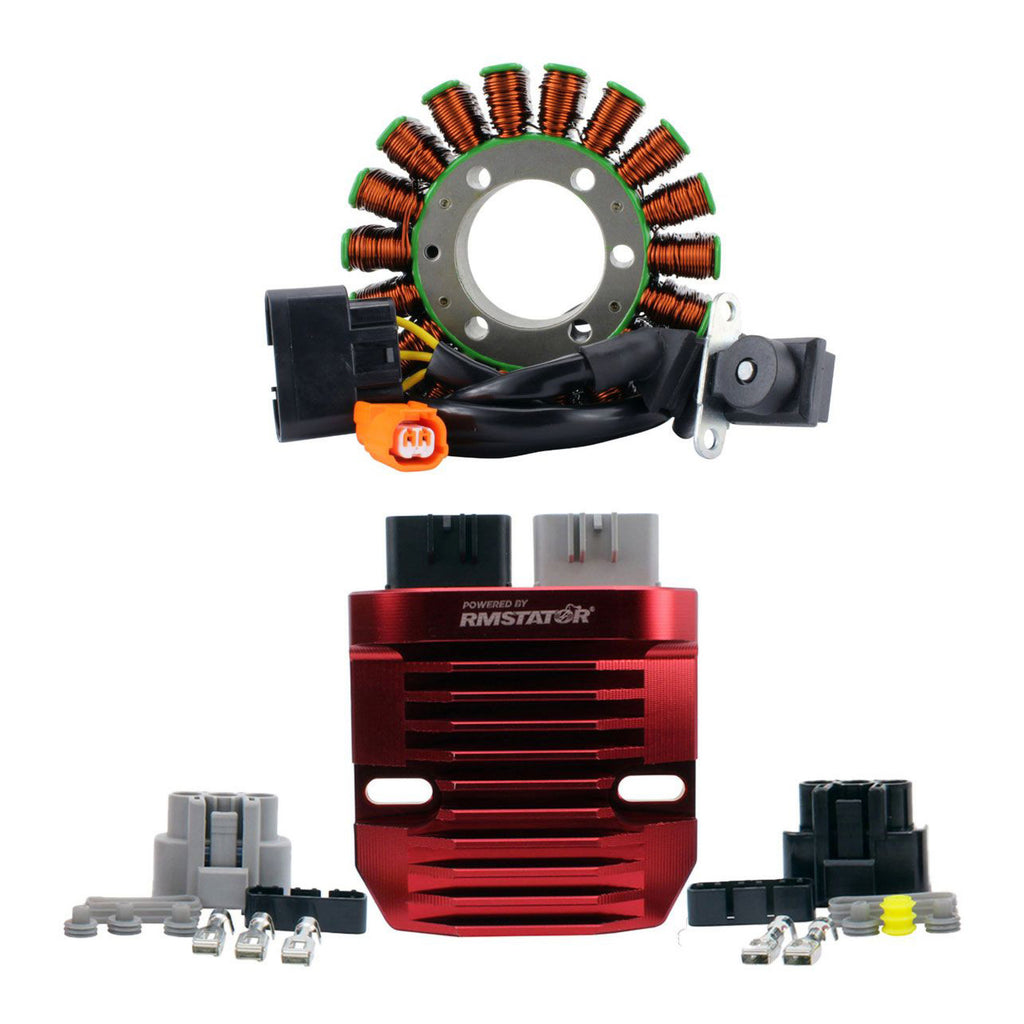

Kit Stator + RMSTATOR Red Machined Aluminum MosfetRegulator
- Direct replacement to your originalunit
- Plug-and-play, direct fit, easy installation
- Allshipped products are tested
All item pictures are accurate; ifin doubt, do not hesitate to compare our item to your originalpart.

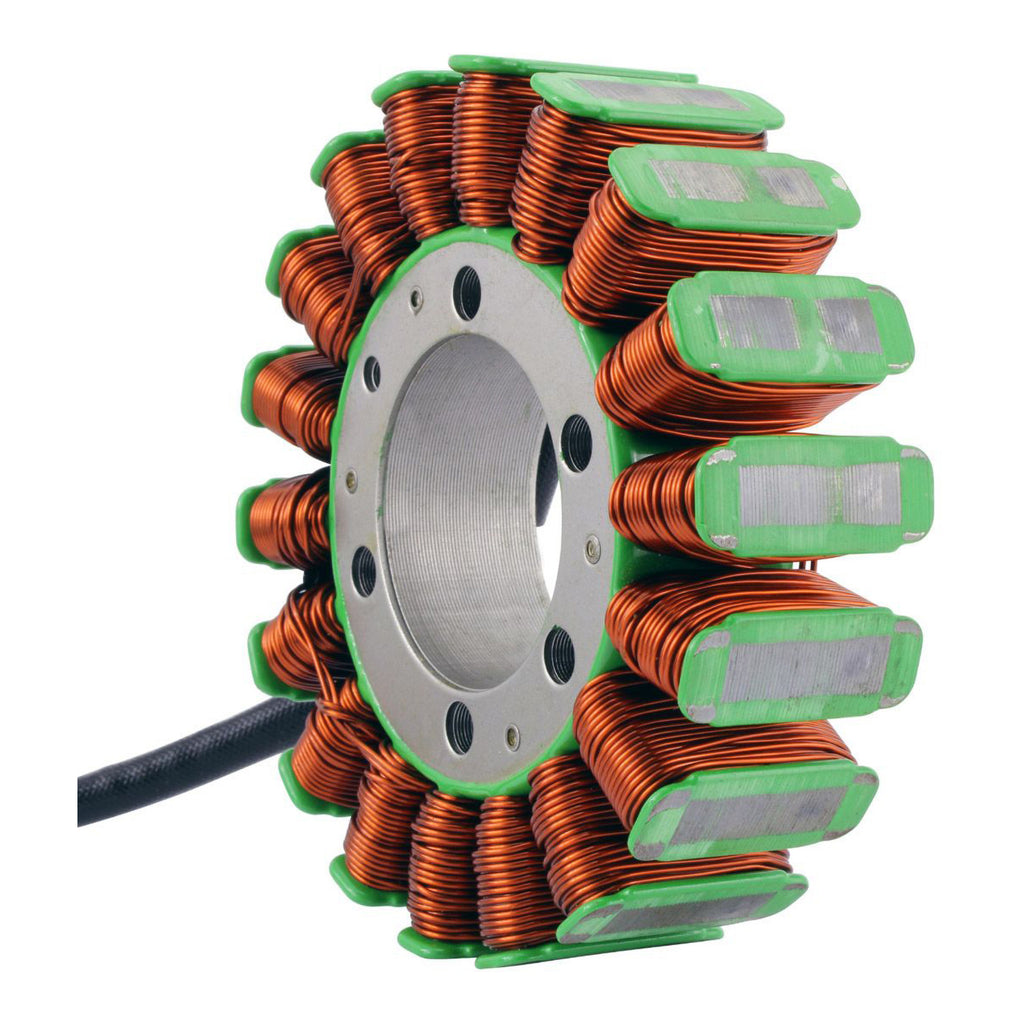

Brand new aftermarketStator
- Highest grade of laminationmaterials
- Highest grade of copper winding, resistant to 200 degreesCelsius

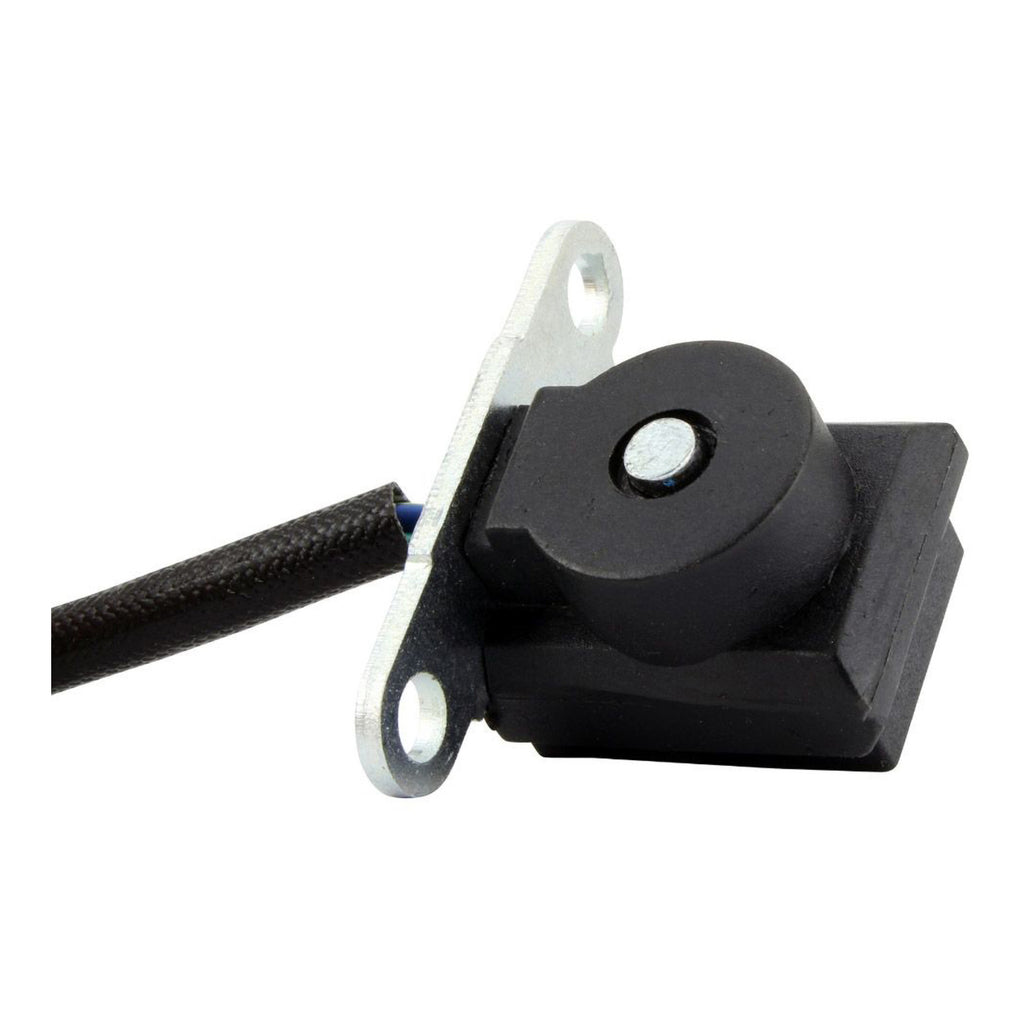

- Pick up pulsar coil included

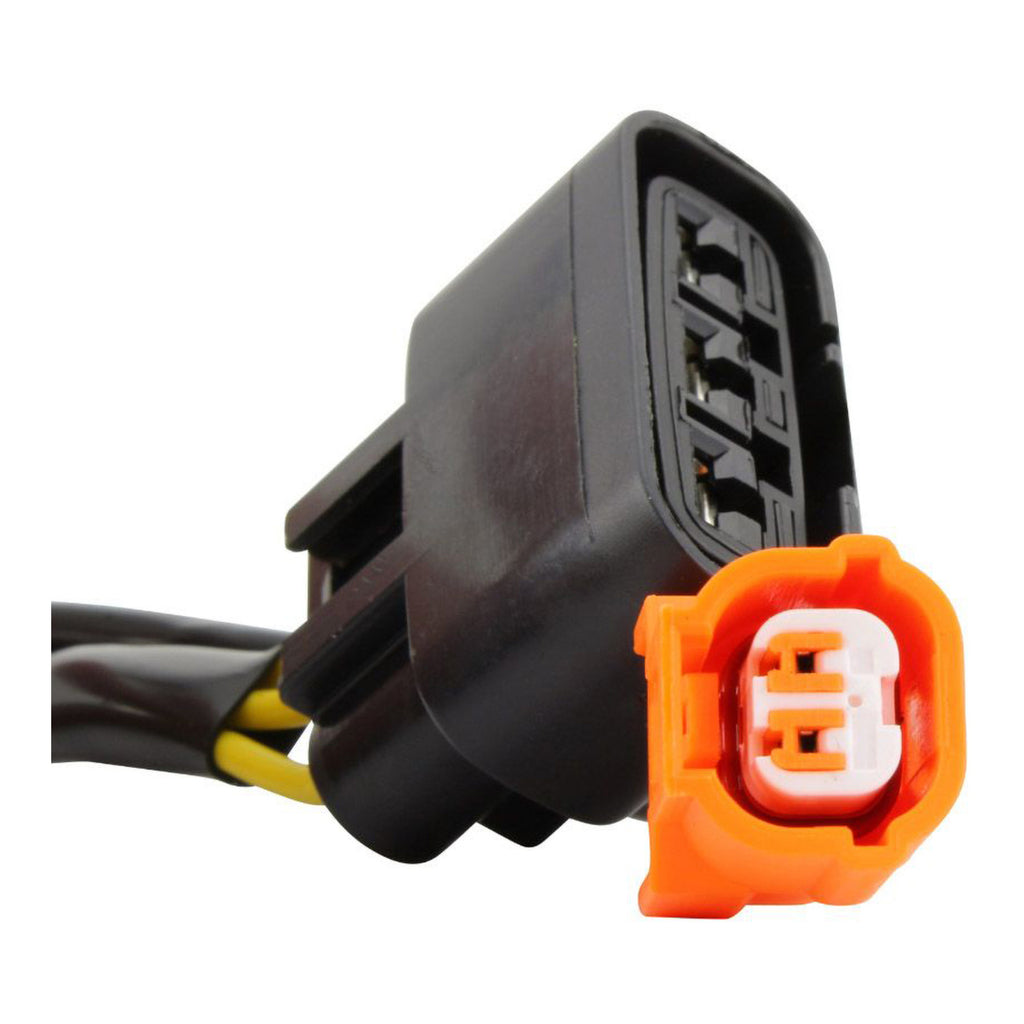

- Connectorsincluded

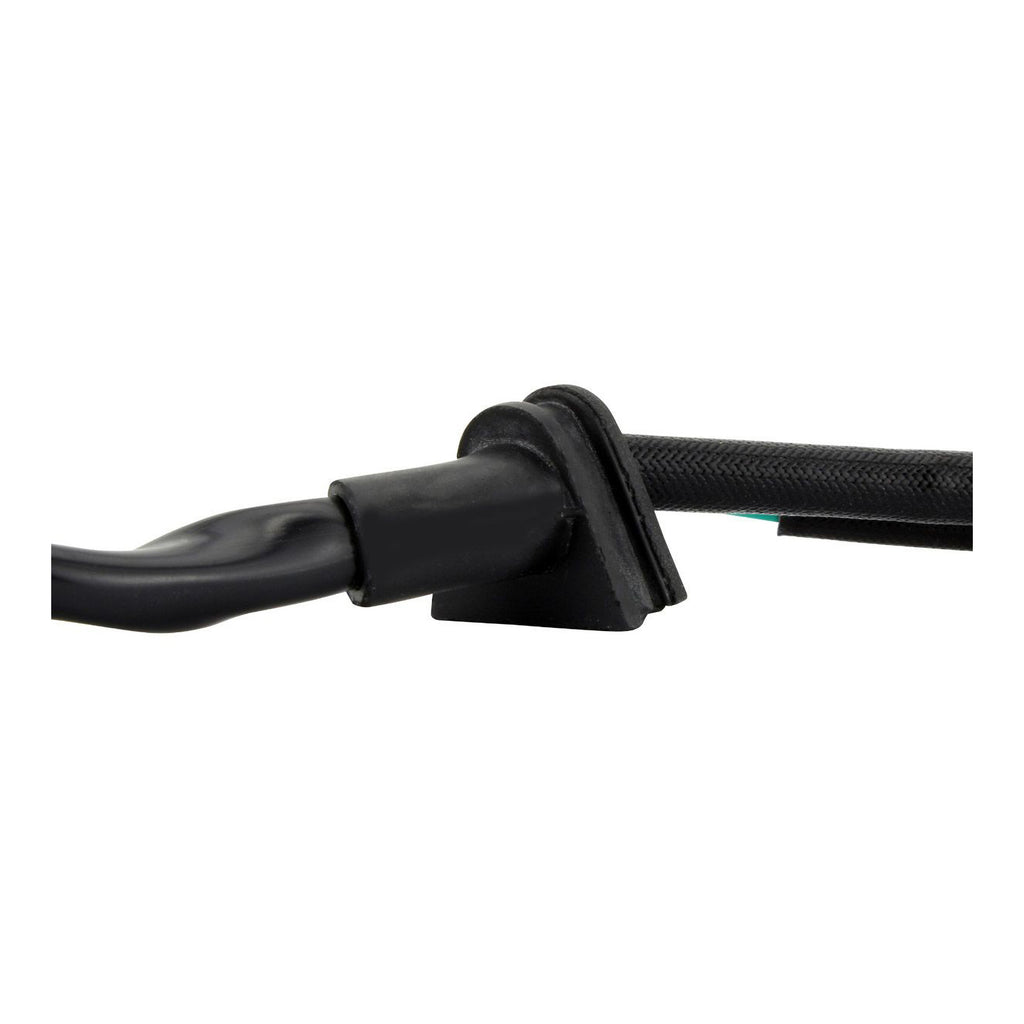

- Rubber grommet included
Brand newRMSTATOR Red Machined Aluminum Mosfet Regulator
Our new redmachined aluminum Mosfet voltage regulator is a great upgrade for heatdissipation in any Powersports charging system. After 10 minutes of use,our billet aluminum heatsink runs cooler by 33% than standard castregulator housings. Our new red regulator, equipped with the renownedMosfet regulation technology, is an added value to any three-phasepermanent magnet charging system.
STOP BURNING YOUR REGULATORRECTIFIER!
It is time to update or replace your voltage regulator withthe advanced MOSFET type.
It runs cooler than all OEMdiode-style regulators. In addition, this rectifier has overheatprotection, rather than burn up, it will simply turn off for a while andcool off.
- The quality exceeds the OEM equipment
- Improvedheat sink and charging capabilities
- Higher grade of electriccomponents
Stator
Dimensions:
Interior diameter: 42 mm
Exterior diameter: 107 mm
Thickness:24 mm
Length of wires stator to grommet: 110 mm
Length of wiresgrommet to plug: 370 mm & 835 mm
Length of pickup coil's wire togrommet: 80 mm
Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
Alternator: Between each Yellow = 0.6 ohms+-20%
Alternator: to ground = O.L
Pickup: Blue/Yellow to Green =116 ohms +-20%
RMSTATOR Red Machined Aluminum MosfetRegulator
Dimensions:
Width: 103 mm
Length: 103mm
Height: 28 mm
Fixation holes center to center: 80mm
Other specifications:
Number of plugs: 2
Number of pins:5
Number of wires: 0
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: 15 V
Operation Temperature: -20C to 85C
