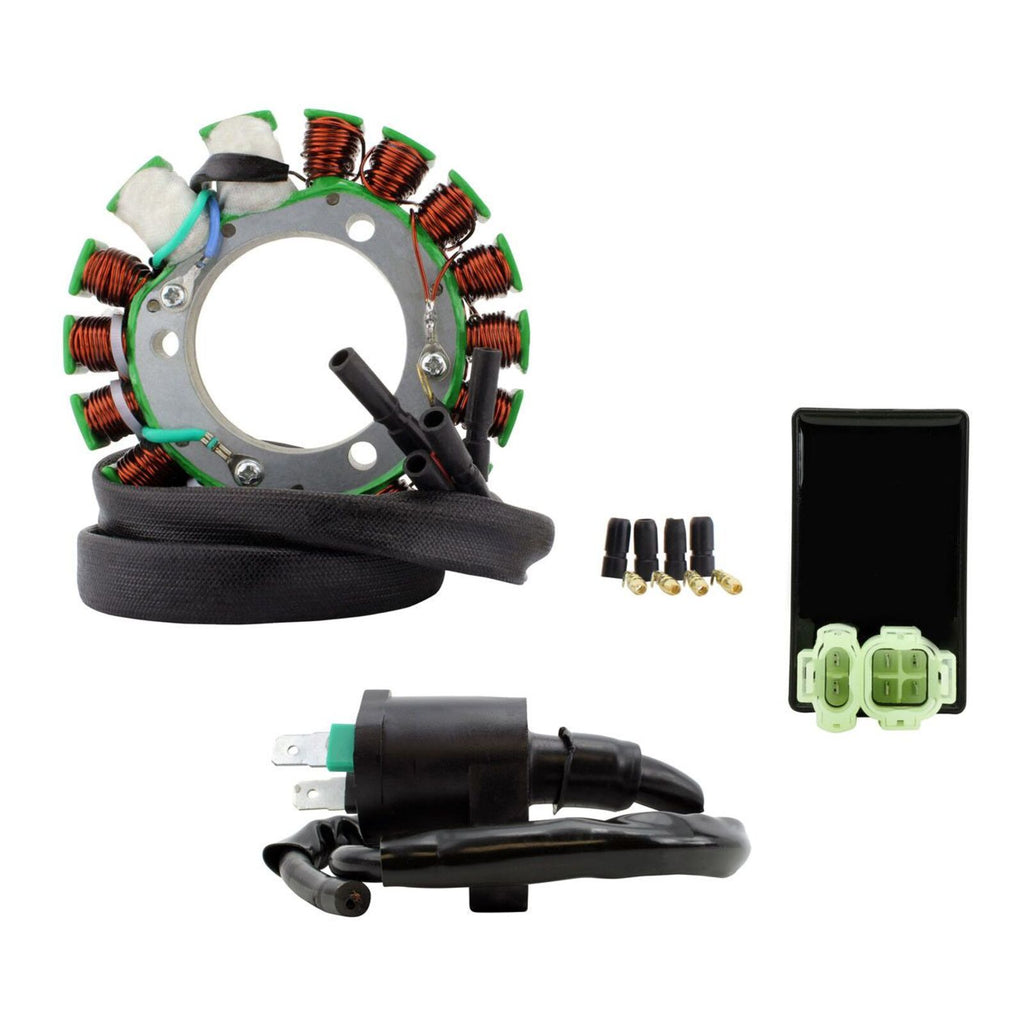

RMSTATOR Stator Kit + Cdi Box Ign Coil Hon Xr 600 R '88-00'

Brand new Kit High Output Stator 200W + High-Performance CDI +External Ignition Coil

• Direct replacement to youroriginal unit
• Plug-and-play, direct fit, easyinstallation
• All products shipped are tested

*All itempictures are accurate; if in doubt, do not hesitate to compare our item toyour original part.

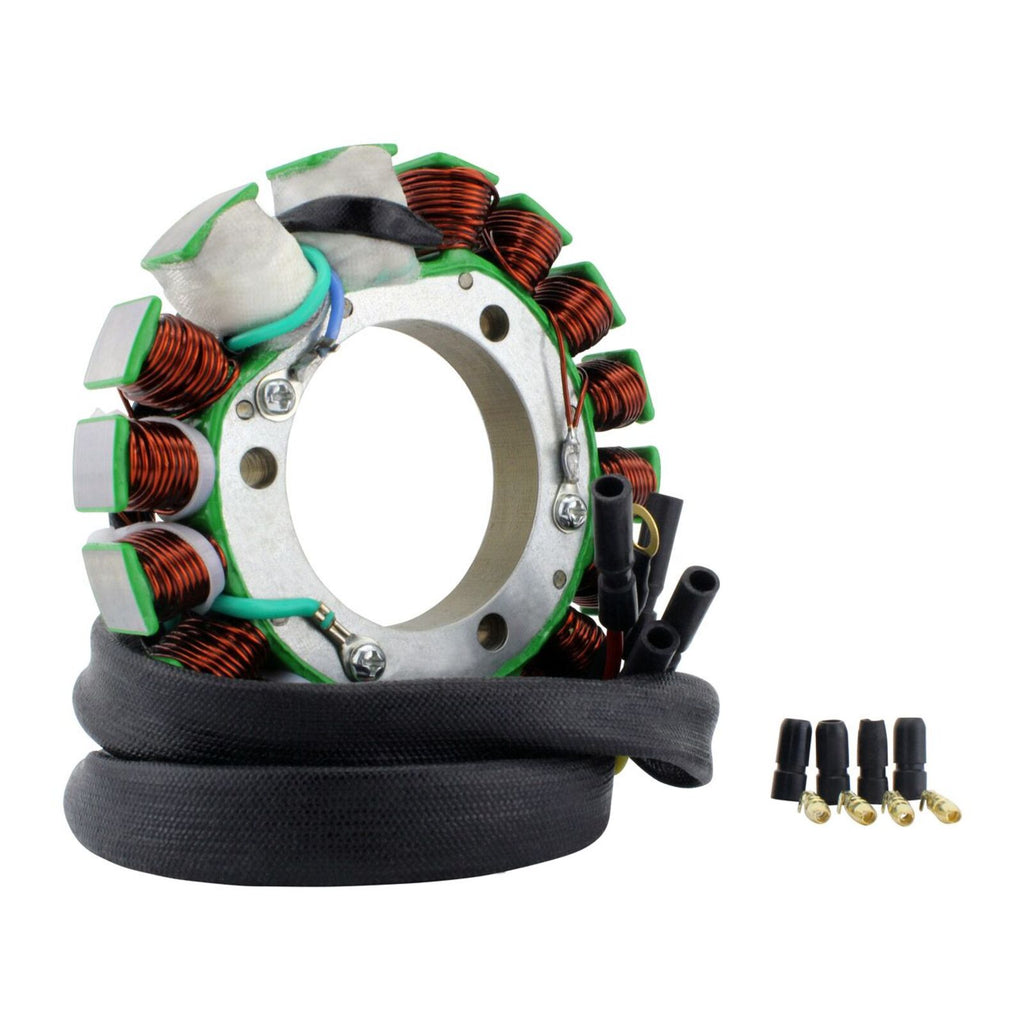

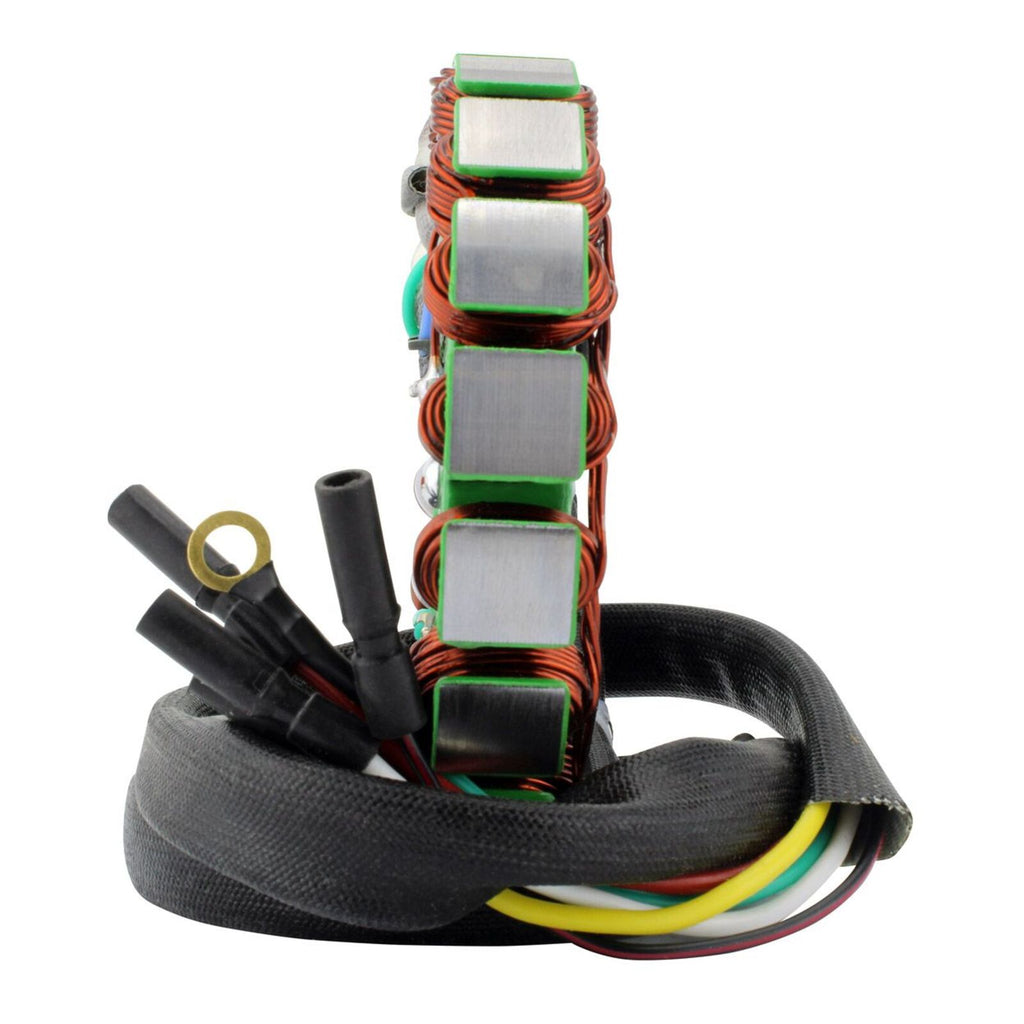

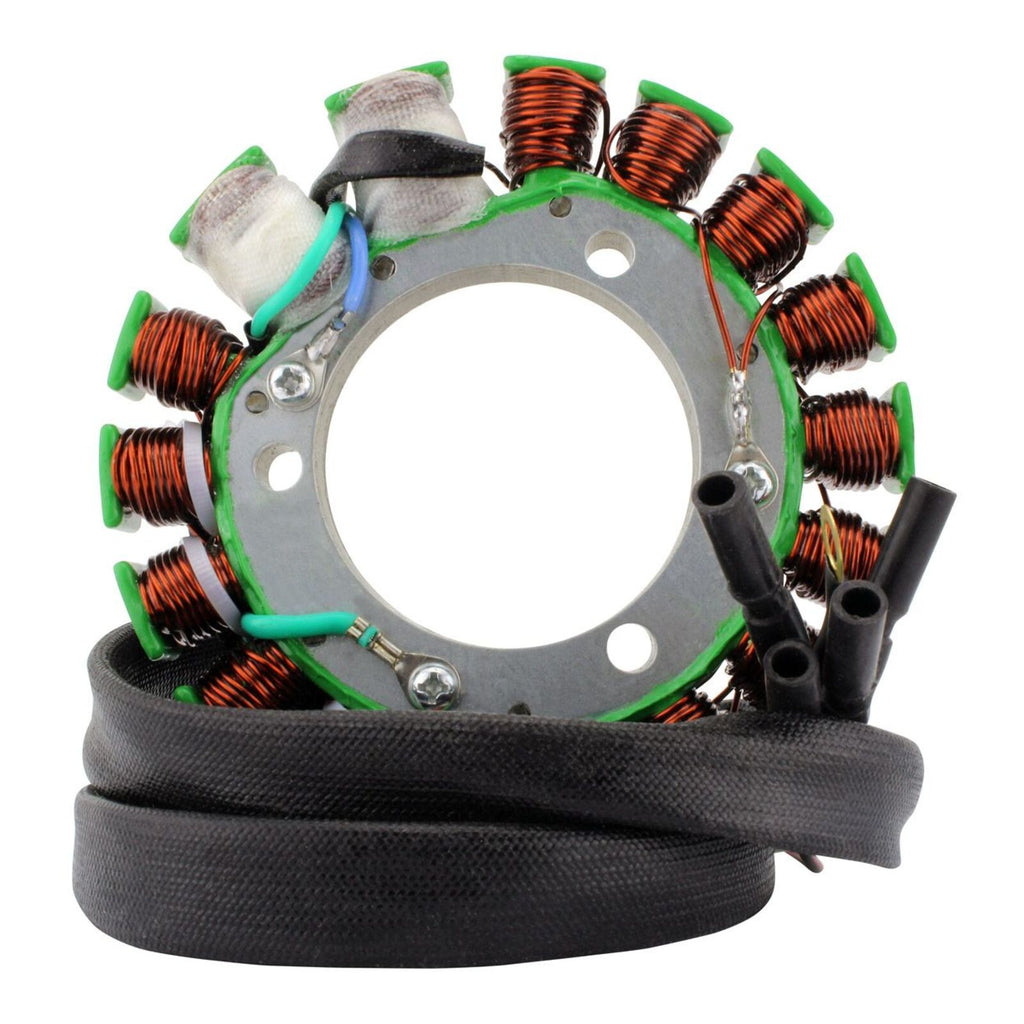

Brand new aftermarket High output Stator200W

• Highest grade of laminationmaterials
• Highest grade of copper winding, resistant to 200 degreesCelsius
• 2 x 100W
• Connectors included
• Rubber grommetincluded

We have even included the opposite connector (mainharness side) as we know these are often melted / corroded/defective and amajor cause of repetitive electrical issues.

Brand newaftermarket CDI box

• Enhanced timing curve, increasedrev limiter (approximately 1000 rpm)
• Higher grade of electroniccomponents.
• The quality exceeds the OEMequipment

Brand new aftermarket External IgnitionCoil

• You must re-install your OEM spark plugcap(s)
• Once your OEM spark plug cap(s) are re-installed, our partbecomes a Plug-and-play unit, direct fit, and easy toinstall.

High output Stator200W

Dimensions:
Interior diameter: 54 mm
Exteriordiameter: 115 mm
Thickness: 15 mm
Length of wires stator togrommet: 200 mm
Length of wires grommet to plug: 700 mm

Otherspecifications:
Number of wires: 5
Number of plugs: 5
Numberof pins: 3
Number of poles: 17
Wire to wire resistance:
Alternator: White to Green = 0.4 ohms +-20%
Alternator: Yellow toRed = 0.4 ohms +-20%
Source: Black/Red to Green = 140 ohms+-20%

High-performance CDI Box

Dimensions:
Height: 22mm
Length: 66mm
Width: 42mm

Otherspecifications:
Number of plugs: 2
Number of pins: 6
