Description

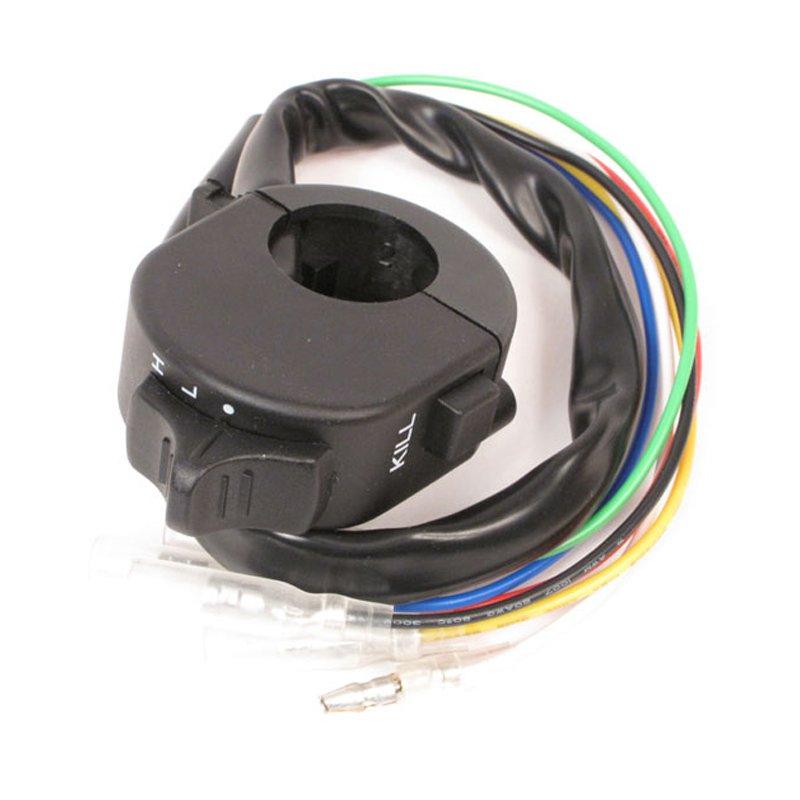

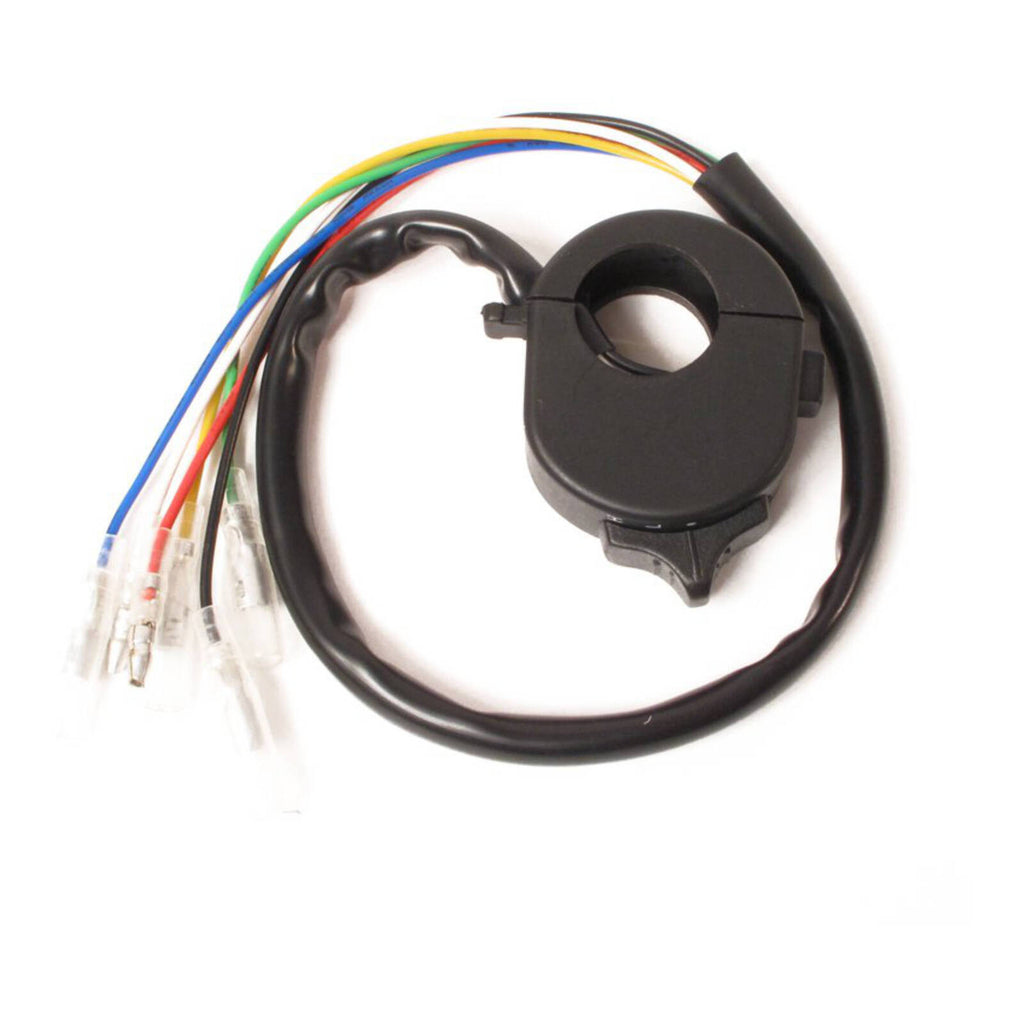

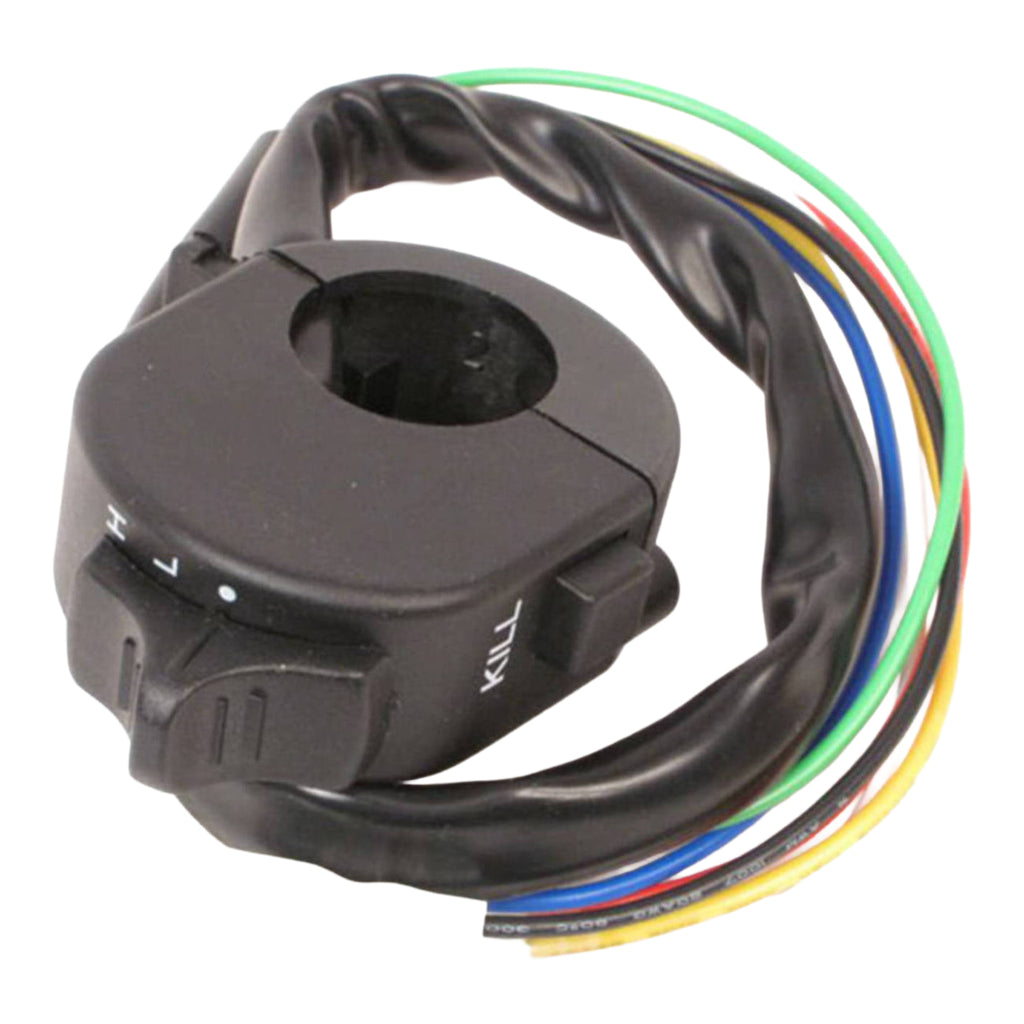

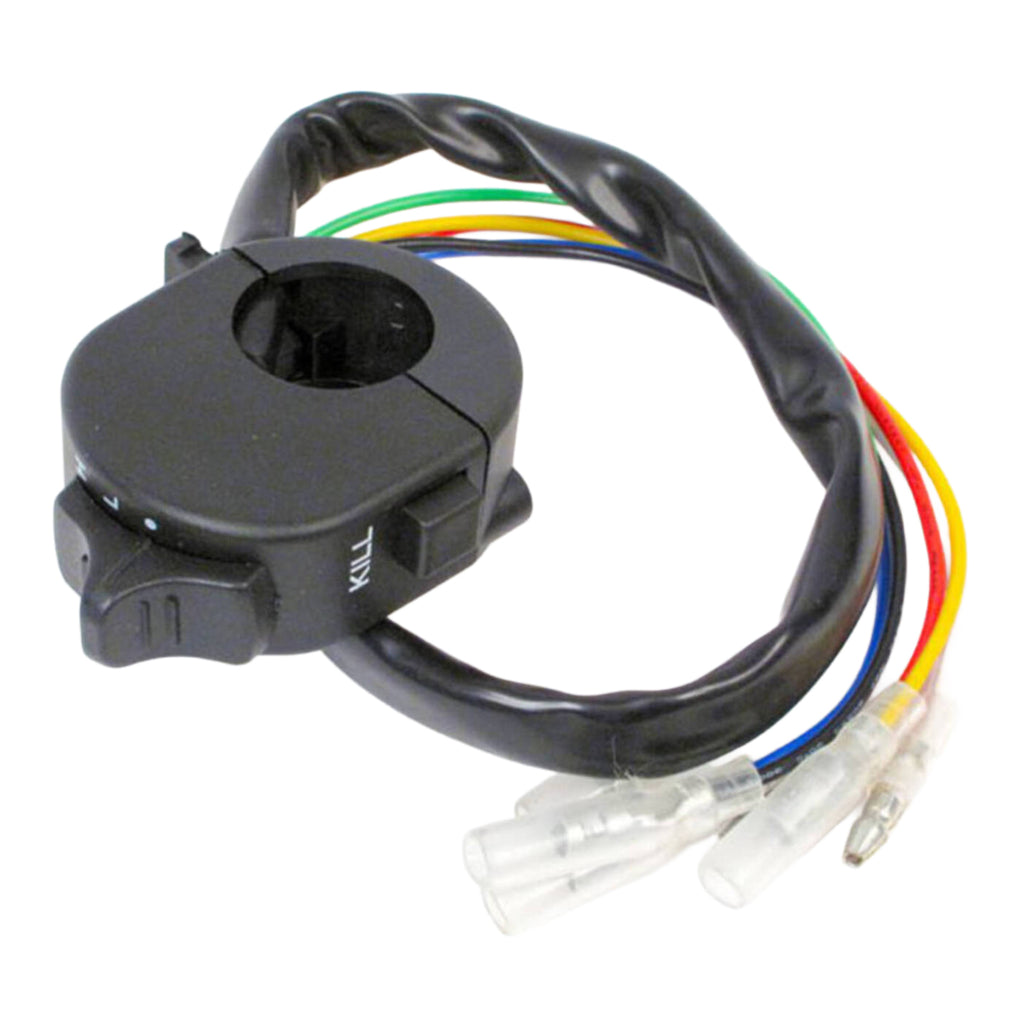

Boasting a sleek black and slim design the Whites Headlight Switch Block is a multi-purpose handlebar switch including a High, Low and Off setting for your headlight along with a kill switch. The switch block is pre-wired with an 18" length and bullet terminals for a quick and easy installation and is compatible with 7/8" handlebars. The block is only 20mm wide and 42mm high making it the perfect replacement for that bulky OEM block on your daily commuter or one of custom machine.
Pre-wired 18" wire with bullet terminals
Compatible with 7/8" handlebars
Full wrap around design
Three stage headlight switch high/low/off
Includes kill switch
Voltage Range - 11v - 15v
Max Amps - 2.5 amps
Material: ABS Plastic
Width: 20mm
Height: 42mm
Wiring Configuration:
Red: Positive
Black: Earth
White: Kill Switch
Green: Low Beam
Yellow: High Beam
Blue: Parking Light
