Description
ENGINEERING EXPERTISE

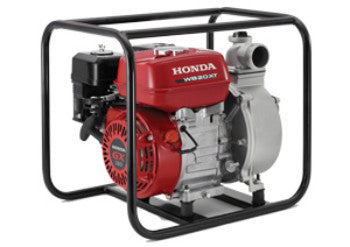

Drawing on decades of engineering advancements, the Honda GX120 engine that powers the WB20 ensures easy starting, easy usage, outstanding fuel economy, low emissions and long-lasting durability.
With oil alert and rubber mounts, the full frame type provides stability and delivers smooth running with less vibration. The result is a reliable, long-lasting pump that will perform time after time.
4-Stroke Honda GX120 Powerplant
Drawing on decades of engineering advancements, the Honda GX120 engine that powers the WB20 ensures easy starting, easy usage, outstanding fuel economy, low emissions and long-lasting durability.
- GX120 engine
- 118cc
- Fuel Tank Capacity 2.5 litres
- Fuel Type Unleaded
- Maximum Pumping Capacity 600 l/min
- Dry weight 21kgs.
| Pump Use | Water Transfer Pump |
| Product Code | WB20XT4UXF |
| Pump Type | Centrifugal volume pump |
| Engine | GX120 |
| Displacement | 118 cc |
| Fuel Type | Unleaded |
| Oil Alert | Yes |
| Total Head | 32 m |
| Max Head | 32 |
| Suction Head | 8 m |
| Max Discharge Capacity | 600 litres/min |
| Self Priming Time (at 5m) | 110 seconds |
| Fuel Consumption | 0.99 litres/hour approx. |
| Mounting | Rubber |
| Hose Band/Stainer | Yes |
| Fuel Tank Capacity (Litres) | 2.5 litres |
| Discharge Port Diameter | 50 mm |
| Suction Port Diameter | 50 mm |
| Length | 455 mm |
| Width | 365 mm |
| Height | 420 mm |
| Dry Weight | 21 kg approx. |
